- GF Mikron UCP 800 Duro Vertical machining center

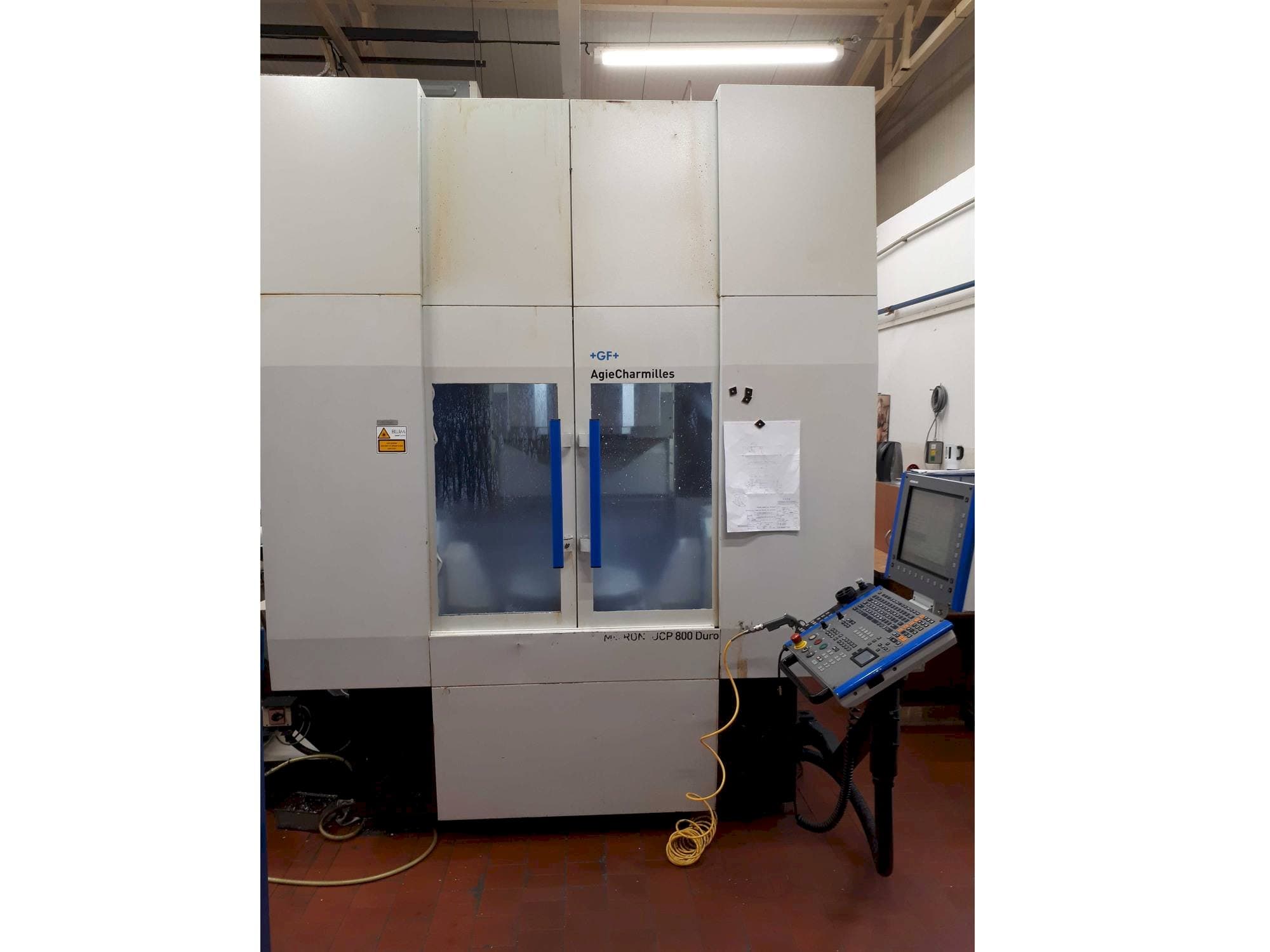

This +GF+ Mikron UCP 800 Duro Vertical machining center was made in the year 2007 in Switzerland. This 5 axis machine is operated through a Heidenhain iTNC 530 control unit of the same brand. It has been working for 63732 hours, of which 35256 are spindle hours. It has a spindle speed up to 20000 rpm. Very good working conditions, regularly maintained.
Overview
- brand: +GF+
- year: 2007
- MODEL: UCP 800 Duro
- production hours: 63732
- application type: Milling
- Location: Czech Republic
- machine type: Universal Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - +GF+ UCP 800 Duro
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC 530
Dimensions
- Machine Depth: 3200 mm
- Machine Height: 3200 mm
- Machine Weight: 9900 kg
- Table Length: 600 mm
- Table Width: 600 mm
Movement
- Number of Axes: 5
- X-axis Travel: 800 mm
- Y-axis Travel: 650 mm
- Z-axis Travel: 500 mm
Technical Specification
- Max. Tool Weight: 8 kg
- Number of Tools: 30
- Spindle Power: 16 kW
- Spindle Speed: 20000 RPM
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition
- Regularly maintained
Technical Machine Benefits
- C axis 360 degrees
- A axis +120 degrees/-30 degrees
- Feedrate x/y/z 15/15/20 m/min.
- Rapid feedrate 30 m/min.
- Through spindle coolant 50 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
