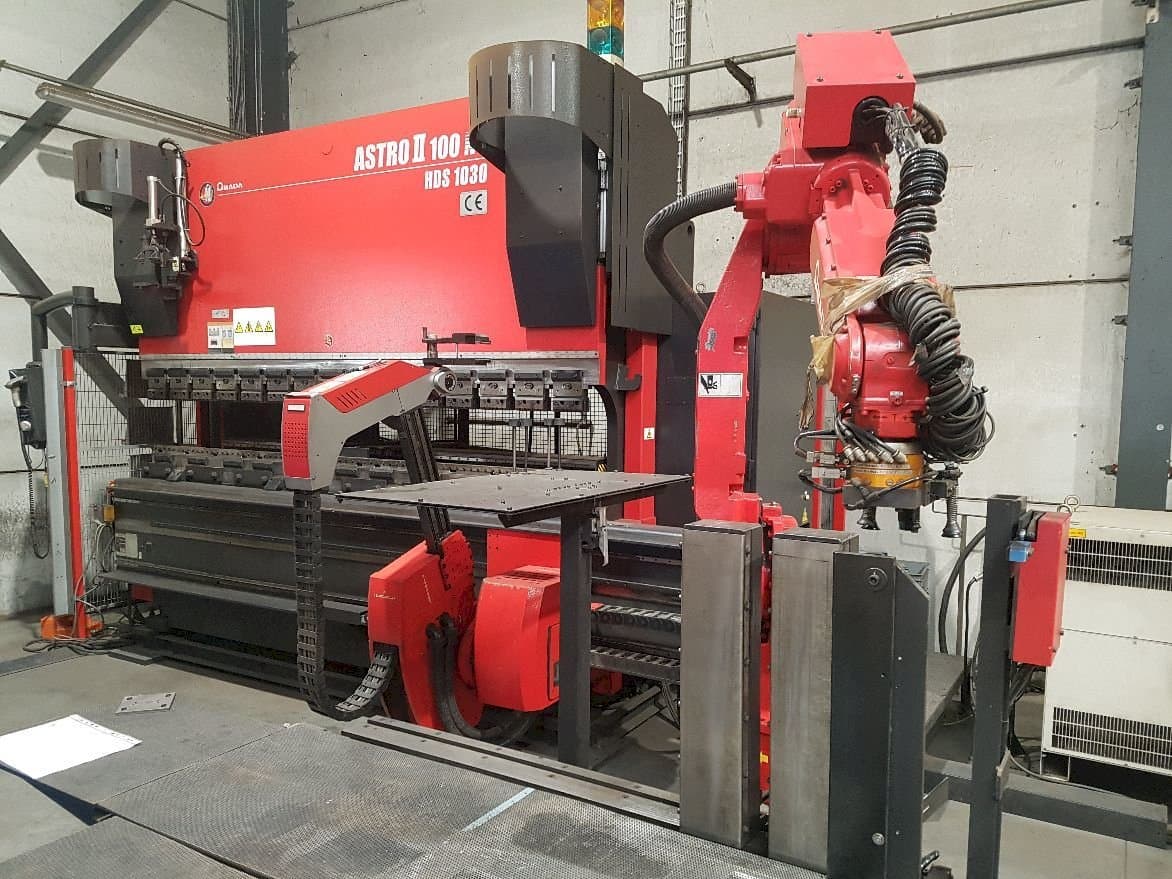

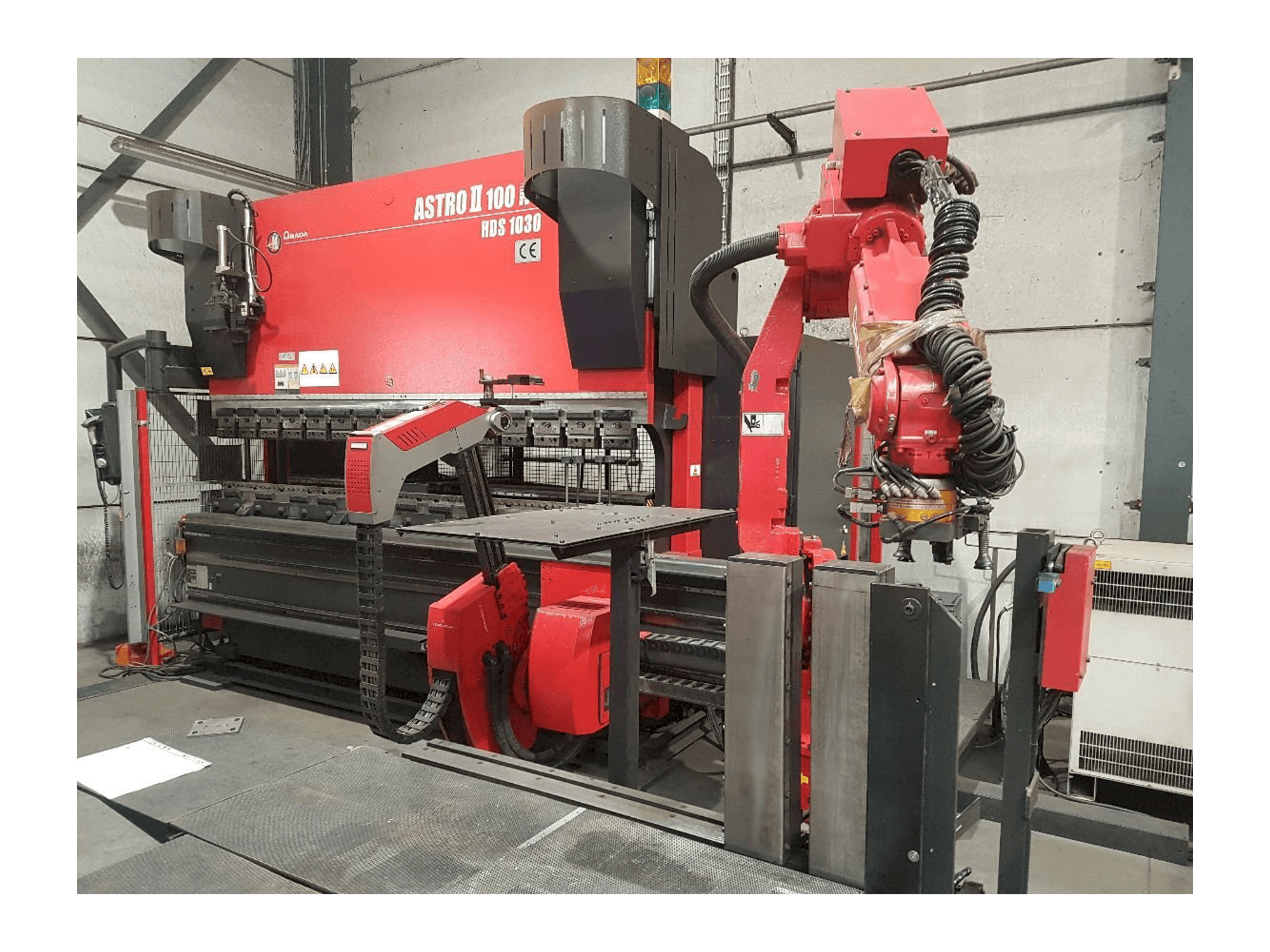

Front view of AMADA Astro II 100NT HDS 1030 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

AMADA Astro II 100NT HDS 1030

Photo Gallery

AMADA - Astro II 100NT HDS 1030BE-BEN-AMA-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
AMADA Astro II 100NT HDS 1030 Bending Machine

This AMADA Astro II 100NT HDS 1030 Bending Machine was built in 2007 in Japan. It is operated through a AMNC II - AS100CE control unit. This machine can work with a bending length of 3110 mm and a stroke length of 200 mm. It includes a Bending robot ASTRO 100 NT.

Overview

brand: AMADA
year: 2007
MODEL: Astro II 100NT HDS 1030
production hours: 0
application type: Bending
Location: Belgium
machine type: Press Brake

Technical Information - AMADA Astro II 100NT HDS 1030

General Data

Measurements width: 2250 mm
Measurements depth: 4345 mm
Measurements height: 3150 mm
Machine weight: 8700 Kg

Control Unit

Model: II AS100CE

Main drive

Bending length: 3110 mm
Main motor power: 200 V
Stroke: 200 mm
Number of axis: 7

Media

Oil tank: 57.5 L

Additional Information

Additional equipment

Bending robot ASTRO 100 NT
Drive AC - servomotor

Machine Benefits

Technical Machine Benefits

Beam speed: approach/return 200 mm/sec
Beam speed: max bending 200 mm/ sec
Adjustable back gauge 600 mm
Distance between uprights 2700 mm
Open height 500 mm
Throat depth 415 mm
Max payload incl. Gripper 20 kg
Length of linear axes 3. 080 mm
Max. Part size 800 x 1000 mm
Max cutting size as profile 300 x 1800 mm

Machine History

Material thickness

2. 5 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
