ANAYAK - HVM-6000DE-MIL-ANA-2001-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools
- ANAYAK HVM-6000 multiangular head Milling Machine

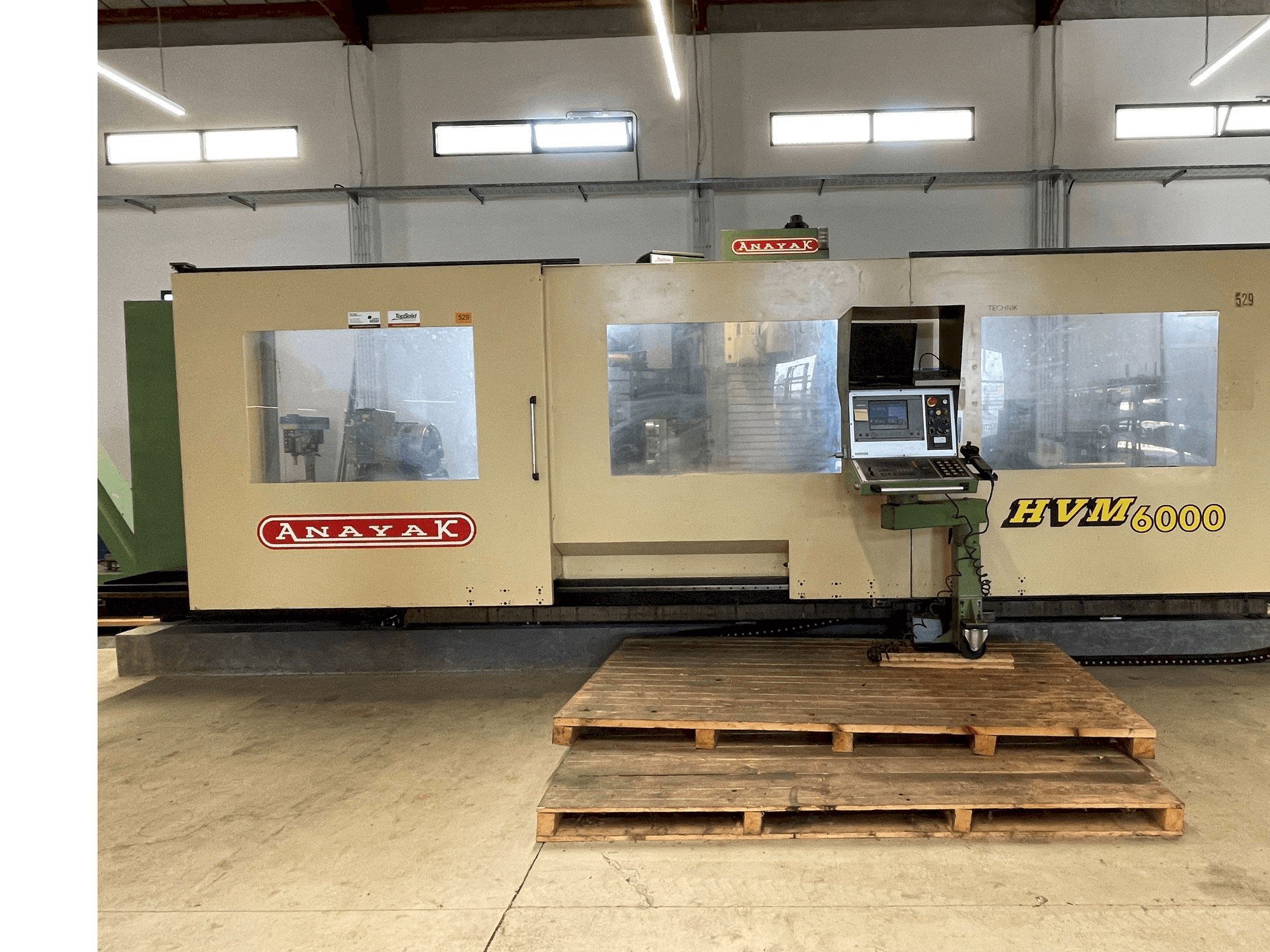

This ANAYAK HVM-6000 multiangular head Milling Machine was built in 2001 in Spain. It has been on for 15739 hours, of which 6542 are program run hours. With an HEIDENHAIN control unit, this 5 axis machine can works with a spindle speed range of 60 - 3000 rpm.
Overview
- brand: ANAYAK
- year: 2001
- MODEL: HVM-6000
- production hours: 15739
- application type: Milling
- Location: Germany
- machine type: Gantry Milling Machine
- control unit brand: HEIDENHAIN
Technical Information - ANAYAK HVM-6000
Control Unit
- Control Brand: HEIDENHAIN
Dimensions
- Table Length: 6000 mm
- Table Width: 1000 mm
Movement
- X-axis Travel: 5300 mm
- Y-axis Travel: 1000 mm
- Z-axis Travel: 1050 mm
Technical Specification
- Spindle Speed: 3000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Multiangular head 45º
- Angular positioning b and c axes automatic
- Hydraulical rotation blocking
- Motor power 22,5/34 kw
- Pump flow 24 l/min
- Working pressure 130 bar
- Tank capacity 250l
- Spindle taper iso 50
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
