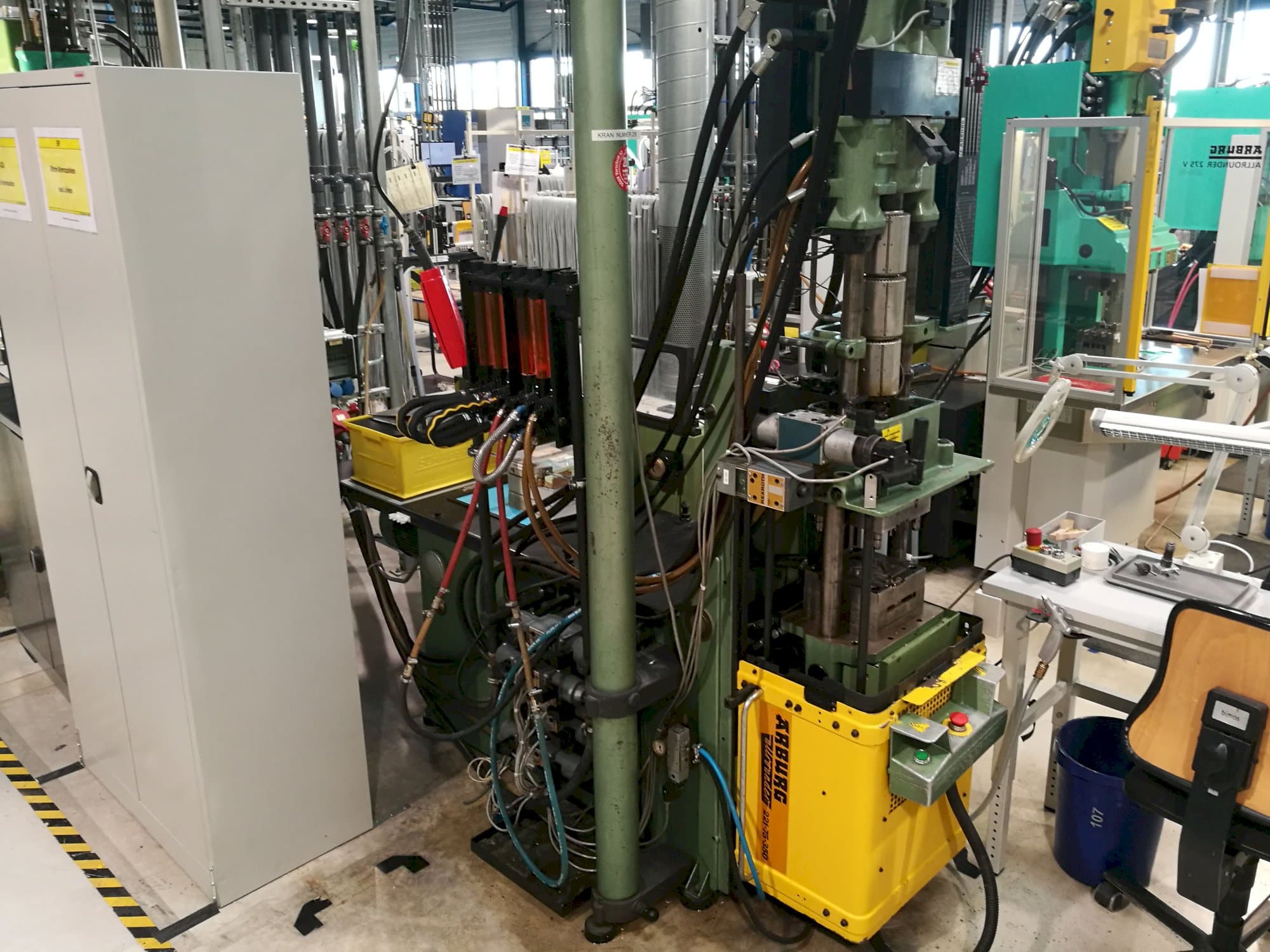

Arburg Allrounder 221-75-350

This Arburg Allrounder 221-75-350 from 1985 was made in Germany and counts with 38942 production hours. Equipped with an Arburg Polytronica Control unit, this machine has mainly worked for the medical technology industry in the past.

Overview

brand: Arburg
year: 1985
MODEL: Allrounder 221-75-350
production hours: 38942
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: ARBURG

Technical Information - Arburg Allrounder 221-75-350

General Data

Measurements width: 2700 mm
Measurements depth: 1200 mm
Measurements height: 2100 mm
Machine weight: 970 kg

Control Unit

Model: Polytronica
CNC main language: German
Brand: ARBURG

Injection Unit

Screw diameter: 22 mm
Stroke volume: 38 cm³
Injection pressure: 1570 bar
Screw speed: 400 rpm
Heating capacity: 3.46 kW
Nozzle pressure: 50kN

Clamping unit

Clamping force: 350 kN
Opening stroke: 200 mm
Max open daylight: 475 mm
Distance between bars: 221 mm
Mould height min: 150 mm
Mould height max: 300 mm
Size of mold platens: 346 mm
Ejector stroke: 100 mm
Ejector force for / back: 17 kN

Media

Main electronic connection: 380 V
Power consumption: 11 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
