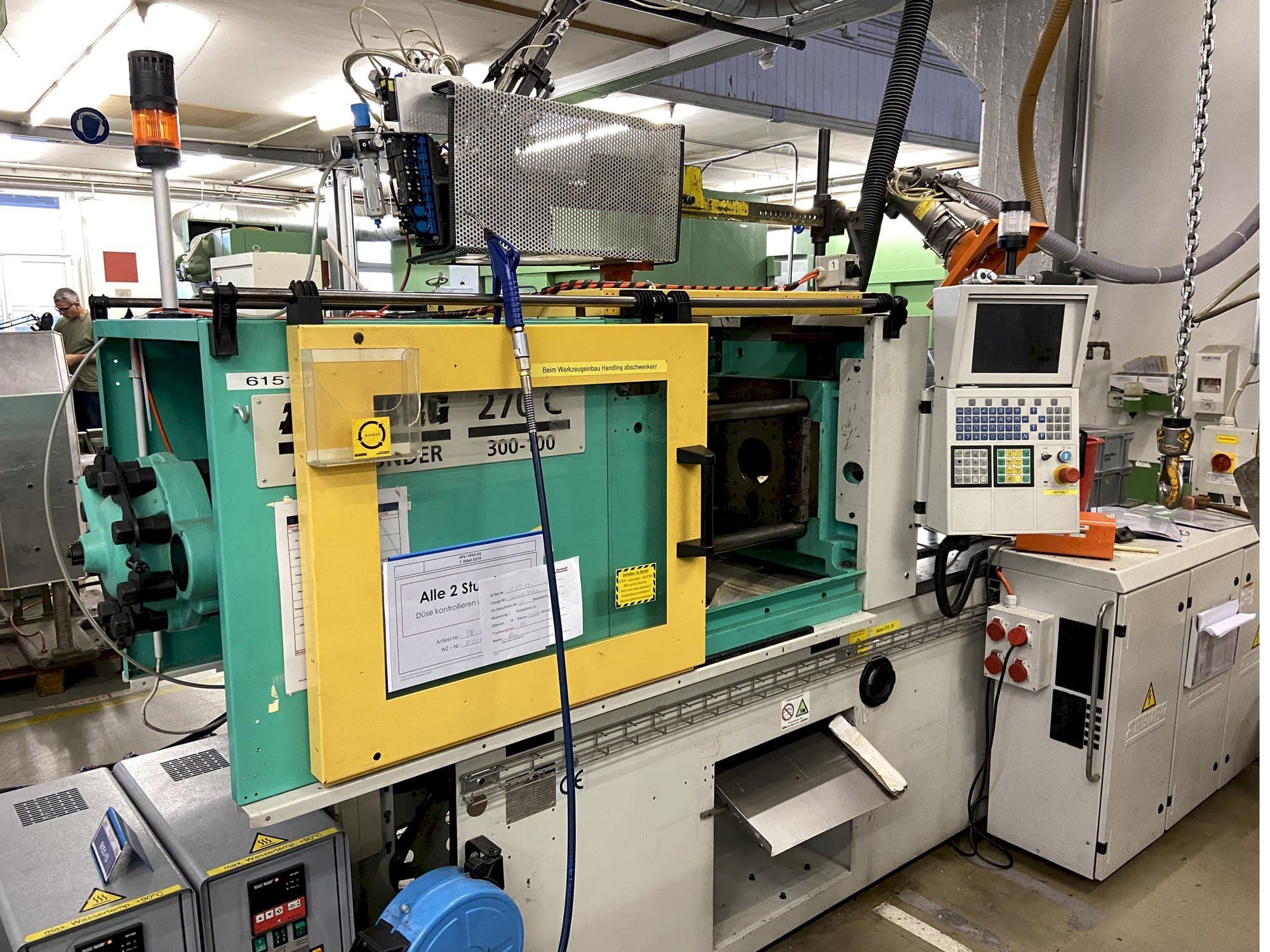

Front view of Arburg ALLROUNDER 270 C 300 - 100 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg ALLROUNDER 270 C 300 - 100

Photo Gallery

Arburg - ALLROUNDER 270 C 300 - 100CH-INJ-ARB-1998-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
Arburg ALLROUNDER 270 C 300 - 100

This Arburg ALLROUNDER 270 C 300 - 100 injection moulding machine was built in the year 1998 in Germany. It has 22889 production hours. It can operate with a clamping force 300 kN, and a screw diameter 20 mm.

Overview

brand: Arburg
year: 1998
MODEL: ALLROUNDER 270 C 300 - 100
production hours: 22889
application type: Injection Moulding
Location: Switzerland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg ALLROUNDER 270 C 300 - 100

General Data

Measurements width: 3500 mm
Measurements depth: 1500 mm
Measurements height: 2000 mm
Machine weight: 1980 Kg

Injection Unit

Screw diameter: 20 mm
Shot weight: 28,4 g/ps
Stroke volume: 31 CM³
Heating capacity: 4.9 kW

Clamping unit

Clamping force: 300 kN
Distance between bars: 270 x 270 mm
Mould height max: 200 mm

Media

Main electronic connection: 400 V 3 - 50 Hz
Pump drive power: 1 X 7.50 kW
Power consumption: 12.4 kW

Additional Equipment

- Temperature devices (additional cost).
- Parts conveyor (additional cost).

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
