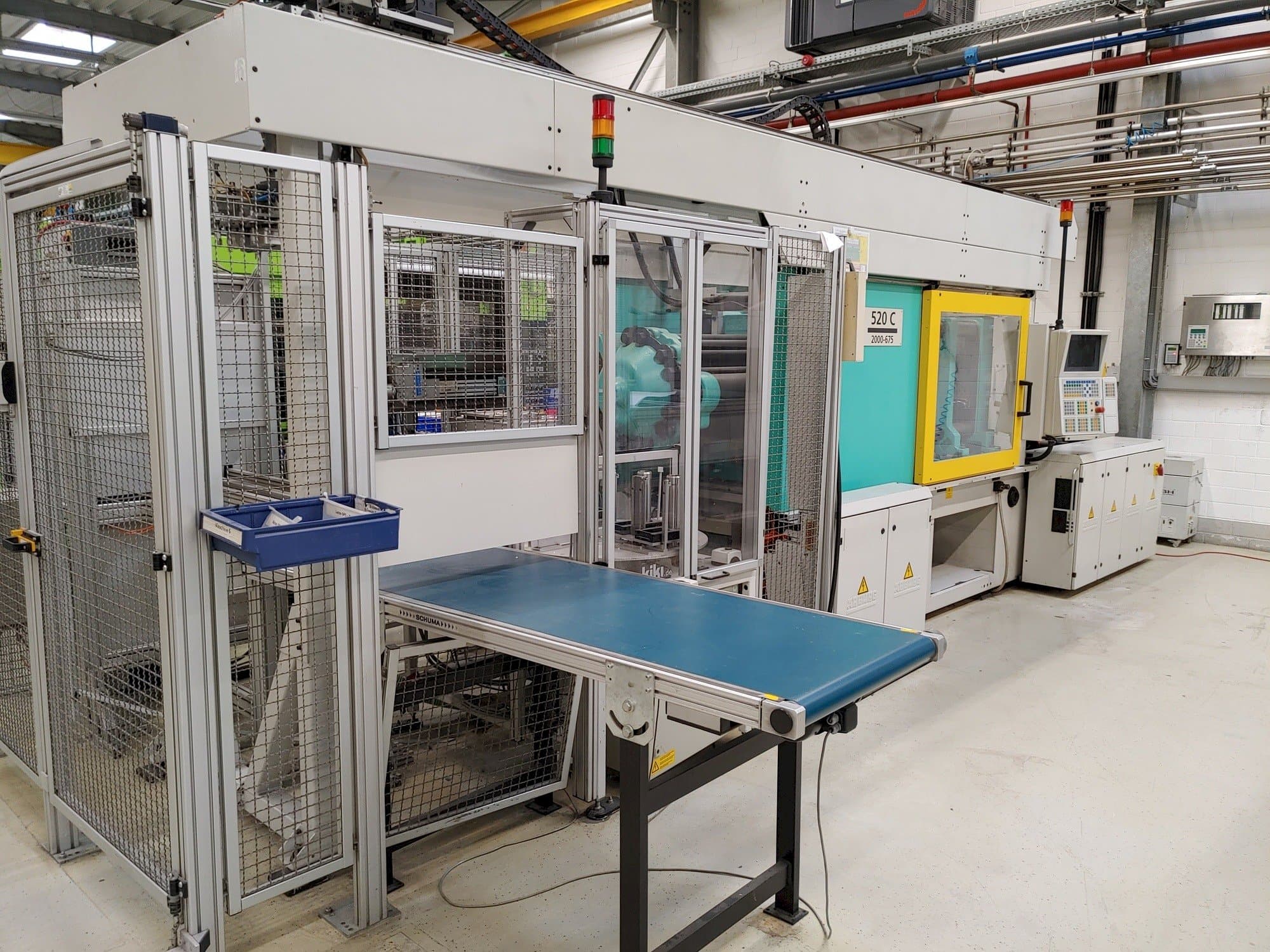

Front view of Arburg Allrounder 520 C 2000-675 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Arburg Allrounder 520 C 2000-675

Photo Gallery

Arburg - Allrounder 520 C 2000-675DE-INJ-ARB-2002-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used Arburg Allrounder 520 C 2000-675 | Injection Moulding

This Arburg Allrounder 520 C 2000-675 Injection Moulding Machine was built in 2002 and has 56776 hours. It is equipped with a Selogica control unit. The machine has a clamping force of 2500 kN and a screw diameter of 45 mm.

Overview

brand: Arburg
year: 2002
MODEL: Allrounder 520 C 2000-675
production hours: 56776
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - Arburg Allrounder 520 C 2000-675

Movement

X-AXIS Movement: 4200 mm
Y-AXIS Movement: 520 mm
Z-AXIS Movement: 1000 mm

Injection Unit

Screw diameter: 45 mm
Stroke volume: 286 CM³
Injection pressure: 2500 bar

Clamping unit

Clamping force: 2000 kn
Opening stroke: 650 mm
Mould height min: 250 mm
Size of mold platens: 728 x 728 mm
Ejector stroke: 225 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Load capacity: 15 kg
- - Clear column distance: 520 x 520 mm
- - Effective screw length (l/d): 22
- - Molded part weight (max. ): 261 g/hp

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
