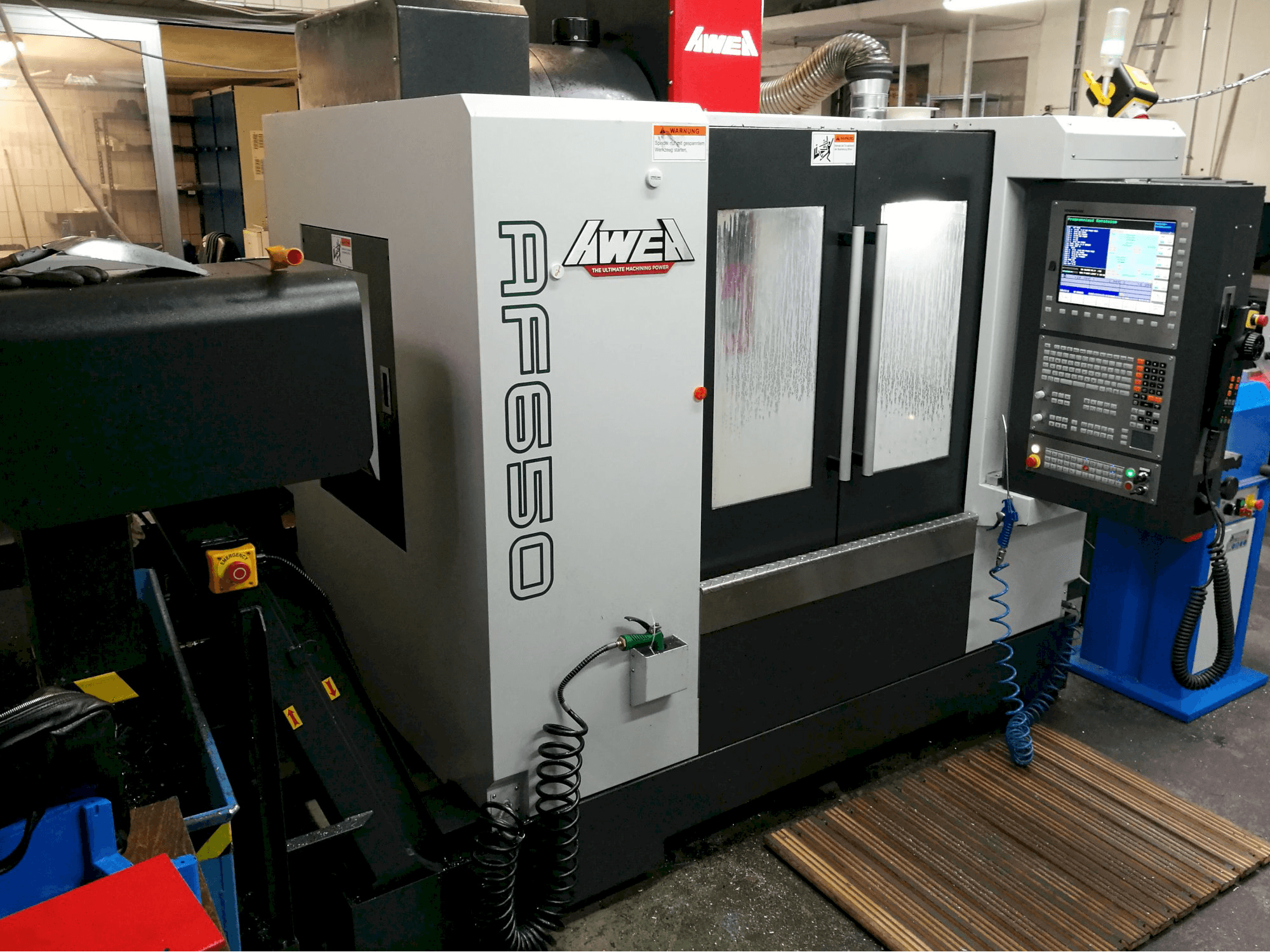

AWEA AF-650 Vertical Machining Center

This AWEA AF-650 Vertical Machining Center was produced in Taiwan in 2016 and has a production history of only 5424 working hours. Equipped with a Heidenhain TNC 530 Control unit, this model stands out due to its spindle speed up to 12000 rpm. During the past, this machine has mainly worked with steel and aluminum up to 10 mm of thickness for the production of component parts.

Overview

brand: AWEA
year: 2016
MODEL: AF-650
production hours: 5424
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - AWEA AF-650

General Data

Measurements width: 2200 mm
Measurements depth: 2415 mm
Measurements height: 2530 mm
Machine weight: 4200 kg

Control Unit

Model: TNC 530
CNC main language: German
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 100-12000 rpm 1/MIN

Movement

X-AXIS Movement: 650 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 750 mm
Outer width: 510 mm
Distance between: 600 mm

Tools

Slots in storage: 24
Max weight: 7 kg
Max tool diameter: 75 mm
Max tool length: 250 mm
Type of tool holder: SK40

Media

Main electronic connection: 400 V
Power consumption: 25 kVA
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
