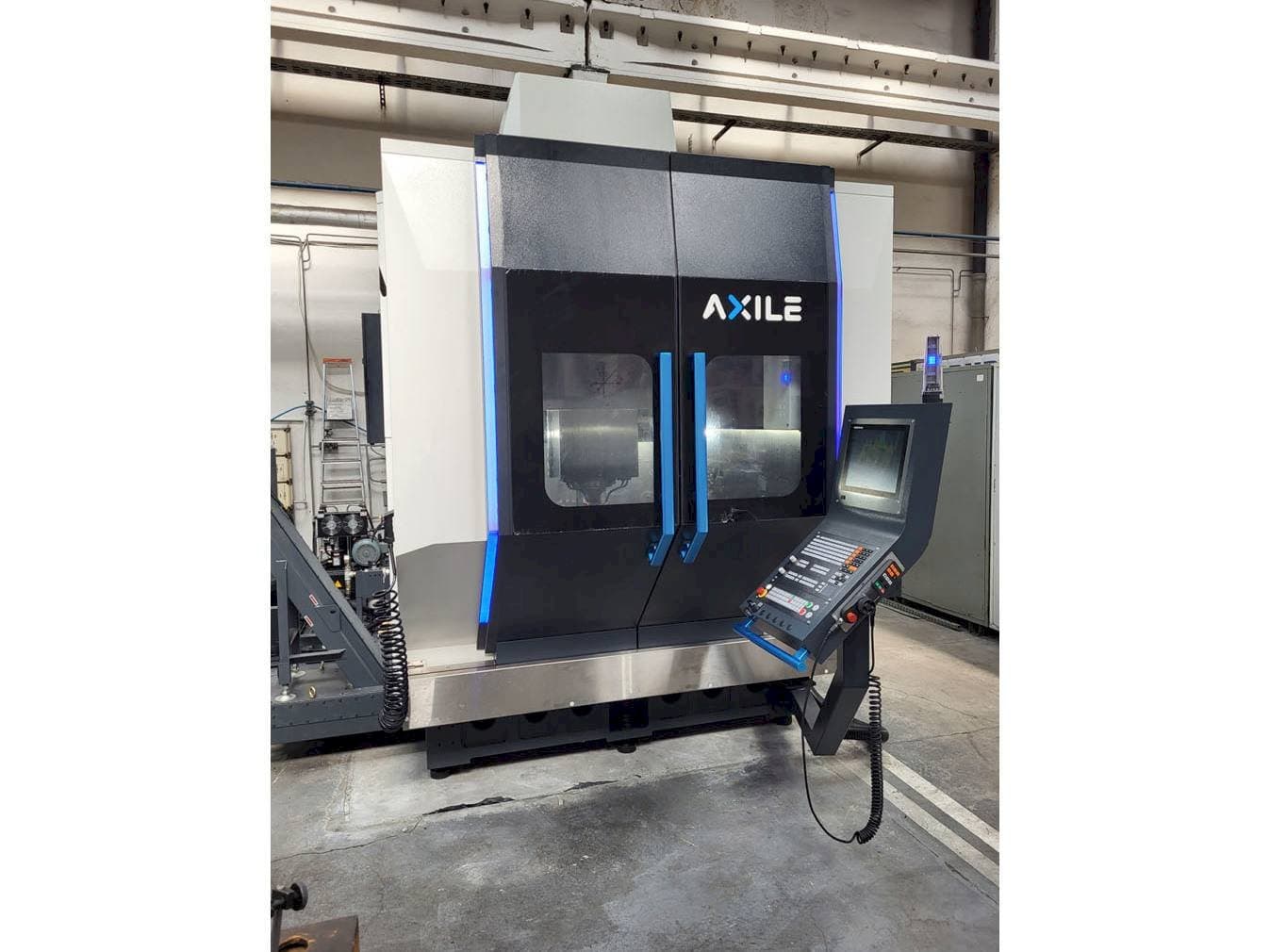

AXILE G8 Vertical Machining Center

This AXILE G8 Vertical Machining Center was made in the year 2021 and has 3624 hours. It is equipped with a HEIDENHAIN TNC 640 control unit and has 5 axis. The machine has a spindle speed of 15000 rpm.

Overview

brand: AXILE
year: 2021
MODEL: G8
production hours: 3624
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - AXILE G8

General Data

Measurements width: 3395 mm
Measurements depth: 4275 mm
Measurements height: 3779 mm
Machine weight: 18000 kg

Control Unit

Model: TNC 640
Brand: HEIDENHAIN

Main drive

Spindle speed range: 15000 1/MIN
Spindle motor power: S1/S6-40% - 30/46 kW
Tool taper: HSK A63
Number of axis: 5

Movement

X-AXIS Movement: 670 mm
Y-AXIS Movement: 820 mm
Z-AXIS Movement: 600 mm

Table

Table load: 1300 kg

Media

Power consumption: 85 kVA

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table dim. : 800 mm
- - Max workpiece dim. : 920 mm
- - Max workpiece height: 500 mm
- - Cooling through the spindle: 20 bar
- - Surge protection system emc
- - Cooling system for the spindle and rotary table drives
- - Three guides for the z-axis
- - Optical rulers in x, y, z axes
- - Aac - axial accuracy control
- - Tpc - tool tip positioning control
Qualitative Machine Benefits:
- - Dcm - dynamic collision monitoring
- - Heidenhain ts-740 workpiece probe
- - Blum laser probe for tools
- - Manual knob for settings, emc, ce certificate
- - Tools magazine: 32
- - Max tool size: dim 120 x 300 mm
- - A-axis movement: +120 / - 120 deg
- - C-axis movement: 360 deg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
