➤ Used AXILE V4 - Machining Center For Sale | gindumac.com

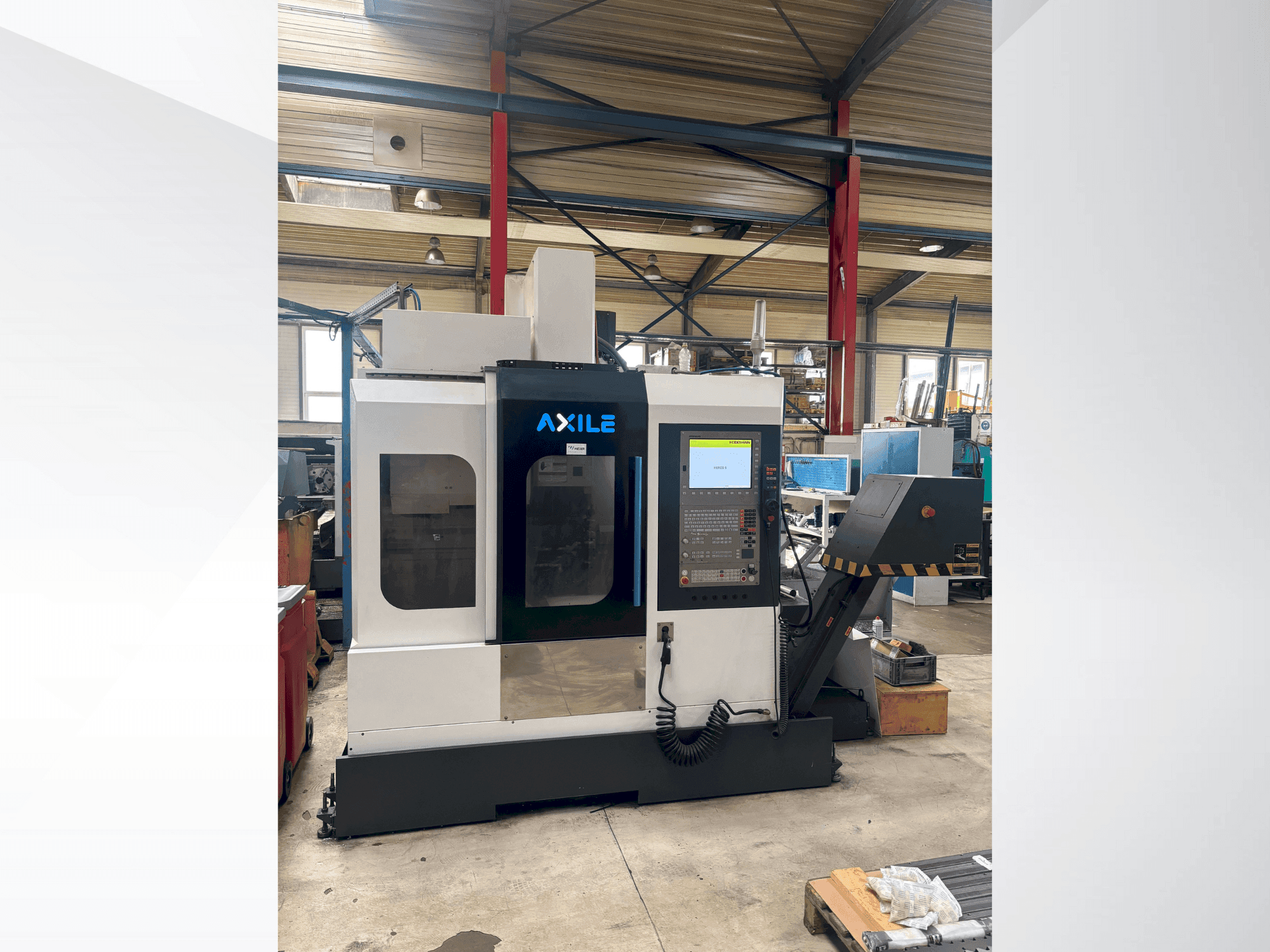

This 3-axis AXILE V4 vertical machining center was manufactured in 2019. It features a robust table size of 770 × 410 mm with a maximum load capacity of 400 kg. Equipped with a high-speed ISO40 spindle capable of 12,000 rpm, it ensures efficient machining. The machine includes a 30/32 tool arm changer and a rapid traverse rate of 36 m/min, enhancing productivity. Consider the opportunity to buy this AXILE V4 vertical machining center. Contact us for more information.

Overview

brand: AXILE
year: 2019
MODEL: V4
production hours: 2975
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - AXILE V4

General Data

Measurements width: 1910 mm
Measurements depth: 3195 mm
Measurements height: 2720 mm
Machine weight: 4350 kg

Control Unit

Brand: HEIDENHAIN
Model: TNC 640

Main drive

Tool taper: HSK-A63 (standard: ISO40)

Movement

X-AXIS Movement: 600 MM
Y-AXIS Movement: 400 MM
Z-AXIS Movement: 450 MM

Additional Information

Additional equipment

T-slots: 16 × 100 mm (4 pieces)
Speed: Standard: 12000 rpm /Optional: 18000 rpm or 24000 rpm
Motor power: Heidenhain: 10/12.5 kW /Siemens: 10.5/15.8 kW /Fanuc: 11/15 kW/ Optional: 20 kW
Axial Accuracy Control (AAC) / Spindle Vibration Supervision (SVS) / Tool-tip Positioning Control (TPC)
Standard: 30 or 32 tools/ Optional: 40 tools
Tool holder: BT / CAT / DIN 40 / HSK 63 /Change time (tool-to-tool): 1.55 s (50 Hz) / 1.31 s (60 Hz)
Max. Tool dimensions: Diameter: Ø75 mm (Ø125 mm with empty neighboring compartment) / Length: 300 mm /Weight: 7 kg
Tool changer (ATC) Type: Arm change
ISO40 in-line spindle (12000 rpm, with CTS function) / Spindle oil cooler / Arm tool changer (30/32 tools)
Coolant tank (20 bar) / Scraper chip conveyor / Linear encoder for all 3 axes / Backwash device / Flushing gun / Heat exchanger / 4th axis prepared (switching circuit)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
