bielomatik K3215

Photo Gallery

bielomatik - K3215PL-OTH-BIE-1999-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

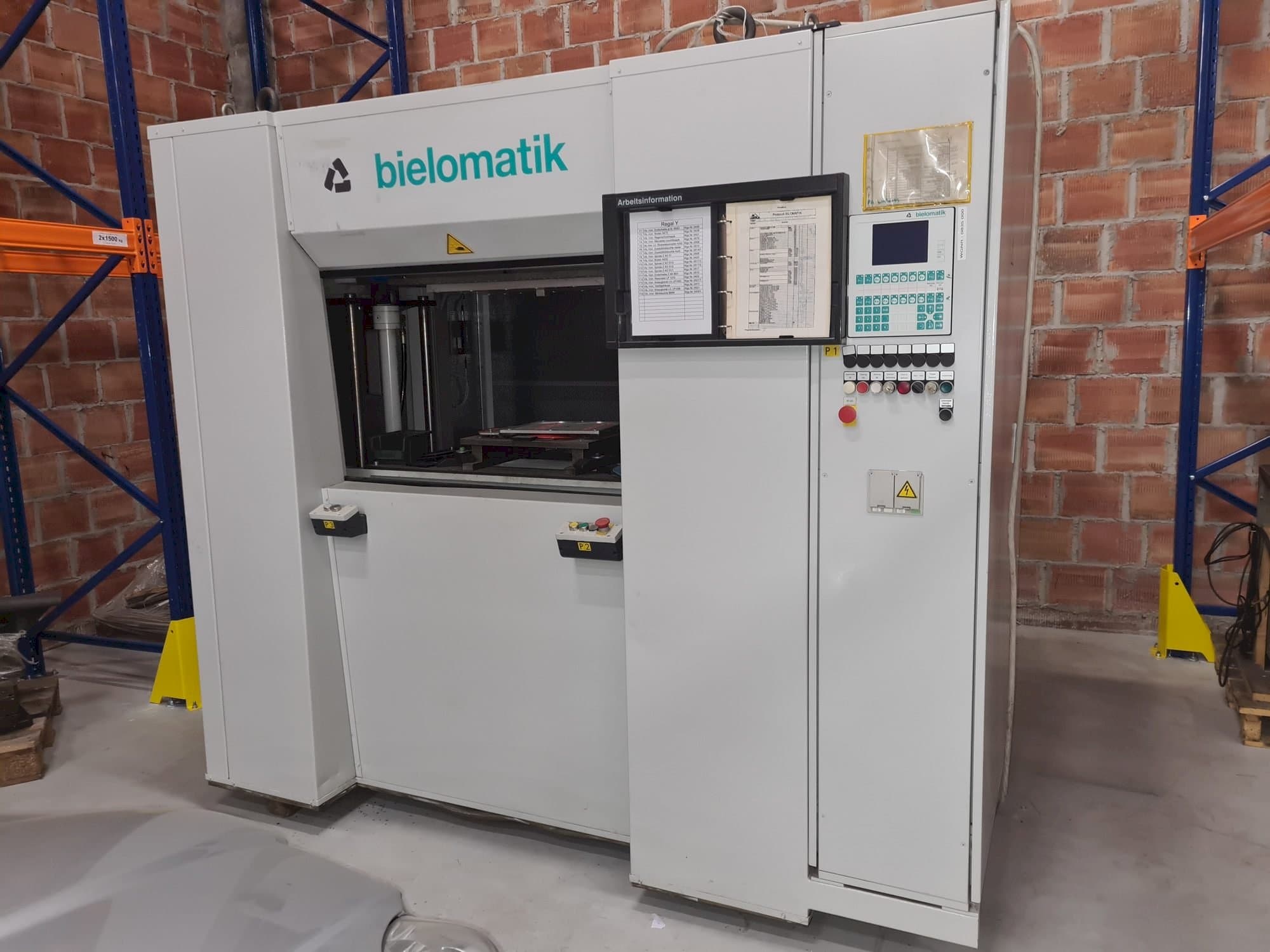

This bielomatik K3215 Vibration Welding Machine was built in the year 1999 in Germany. It has a record of 48660 working hours. This machine is equipped with a SIEMENS TP 1200 control unit. It has a driving performance 2 x 16.5 kN and a pressure, welding and joining force 25 kN. This machine is in very good working conditions and ready for tests. It includes several accesories as a depth measuring device Siko.

Overview

brand: bielomatik
year: 1999
MODEL: K3215
production hours: 48660
application type: Other Sheet Metal Machinery
Location: Poland
machine type: Sheet Metal Machine
control unit brand: SIEMENS

Technical Information - bielomatik K3215

General Data

Measurements width: 2480 mm
Measurements depth: 1860 mm
Measurements height: 2320 mm
Machine weight: 1700 kg

Control Unit

Model: TP 1200
Brand: SIEMENS

Table

Outer length: 1200 mm
Outer width: 500 mm

Media

Main electronic connection: 400 V / 50 Hz
Power consumption: 20 kVA

Additional Equipment

- pneumatics Festo
- hydraulics Parker
- hydraulic cylinders Hydropeneu
- amplitude measuring device Micro-Epsilon
- depth measuring device Siko

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max upper tool weight 90 kg
- - Base plate size upper side 1000 x 500 mm
- - Base plate size lower side approx. 1000 x 500 mm
- - Door clearance 1100 x 730 mm
- - Max opening lower to upper table 595 mm - variable stroke of machine table approx. 500 mm max
- - Electro-magnetic vibration drive with fully variable frequency
- - Variable frequency 170-240 hz
- - Max driving performance approx. 2 x 16. 5 kn - pressure, welding and joining force: max 25 kn
- - Amplitude range: variable 0. 3 – 1. 5 mm (closed loop control)
- - Machine plc siemens s7 - main electrical components siemens
Qualitative Machine Benefits:
- - The machine is in very good working condition
- - Ready for tests
- - It is not working at production now

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
