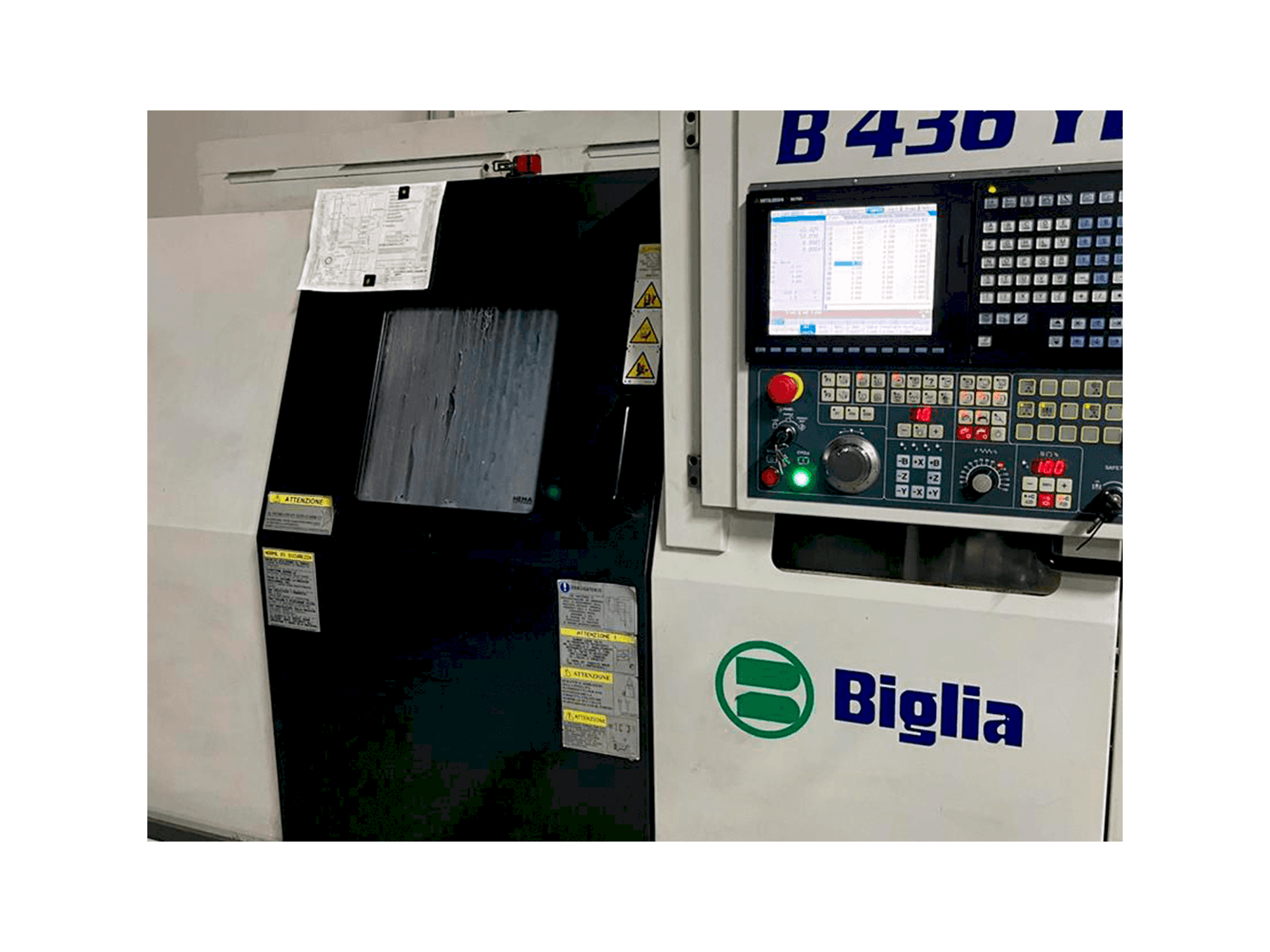

Biglia B436 Y2 Lathe

This Biglia B436 Y2 Lathe was manufactured in the year 2015. It is equipped with a Mitsubishi M700 control unit and has 10 axis. The machine has a spindle speed of 7000 rpm.

Overview

brand: Biglia
year: 2015
MODEL: B436 Y2
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Immediateky
control unit brand: MITSUBISHI

Technical Information - Biglia B436 Y2

General Data

Measurements width: 3682 mm
Measurements depth: 1430 mm
Measurements height: 1900 mm
Machine weight: 5000 kg

Control Unit

Model: M700
Brand: MITSUBISHI

Main drive

Number of spindles: 2
Spindle speed range: 7000 1/MIN
Spindle motor power: 11 kW
Number of axis: 10

Movement

C-AXIS Movement: 0.001 º MM

Turret

Number of turrets: 2
Number of tool slots: 12

Media

Main electronic connection: 400 V

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Bar diameter : 36 mm
- - Max. Chuck diameter : 100 mm
- - Spindle nose : a2-5
- - Counter spindle: max. Bar diameter : 36 mm, max. Turning diameter : 100 mm
- - Turret 1 number of positions : 12 number of motorized positions : 12 x/z stroke : 85/300 [mm] - y stroke : -25/+25 [mm] live tools speed : 6000 [rpm] live tools power : 4. 6 [kw]
- - Turret 2 number of positions : 12 - number of motorized positions : 12 x/z stroke : 35/300 [mm] y stroke : -25/+25 [mm] live tools speed : 6000 [rpm] live tools power : 4. 6 [kw]
Qualitative Machine Benefits:
- - Barfeeder top included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
