Biglia B650 YS

Photo Gallery

Biglia - B650 YSIT-TUR-BIG-2002-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

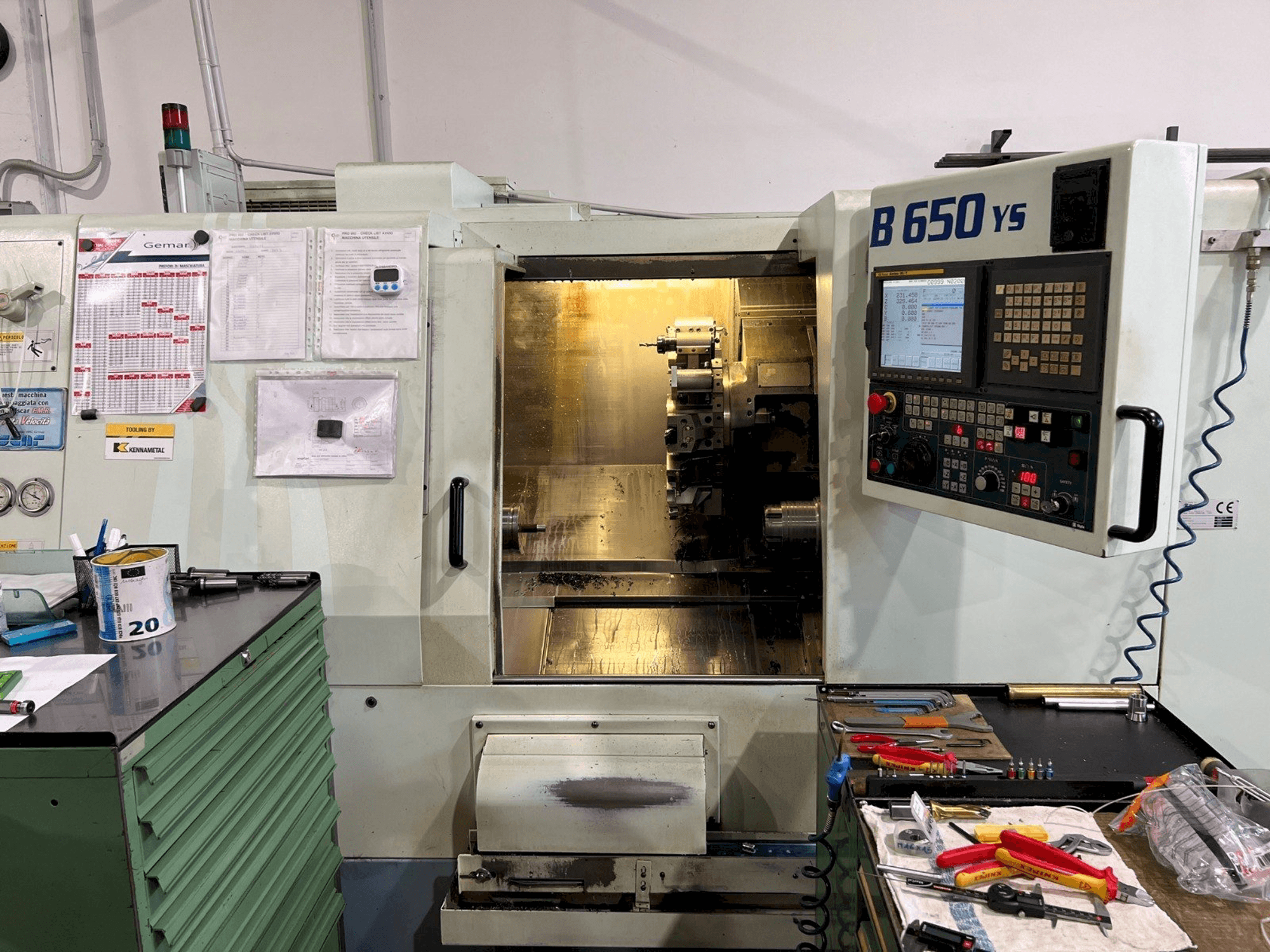

Biglia B650 YS Lathe

This Biglia B650 YS Lathe was built in 2002 and has 12238 hours. It is equipped with a Fanuc 18I-Tcontrol unit. The machine has a main spindle speed of 4500 rpm.

Overview

brand: Biglia
year: 2002
MODEL: B650 YS
production hours: 12238
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - Biglia B650 YS

General Data

Measurements width: 4450 mm
Measurements depth: 2000 mm
Measurements height: 2100 mm
Machine weight: 6500 kg

Control Unit

Model: 18I-T
Brand: FANUC

Main drive

Spindle speed range: 4500 1/MIN
Spindle motor power: 15 kw

Movement

X-AXIS Movement: 260 mm
Y-AXIS Movement: 110 mm (+60 / -50)
Z-AXIS Movement: 650 mm
B-AXIS Movement: 650 mm

Additional Equipment

- Collect chucks max. 70 mm for main spindle
- Collects chucks max. 42 mm for sub spindle
- Software for monitoring power axis
- KIT full for bar feeder
- Tool setter
- Axial rotary tools
- Radial rotary tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max turning diameter: 400 mm
- - Max bar diameter: 65 mm
- - Spindle nose: asa 6”
- - Spindle nose: flat diam. 140
- - Max bar diameter: 38 mm
- - Sub spindle: 5000 rpm, 11 kw

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
