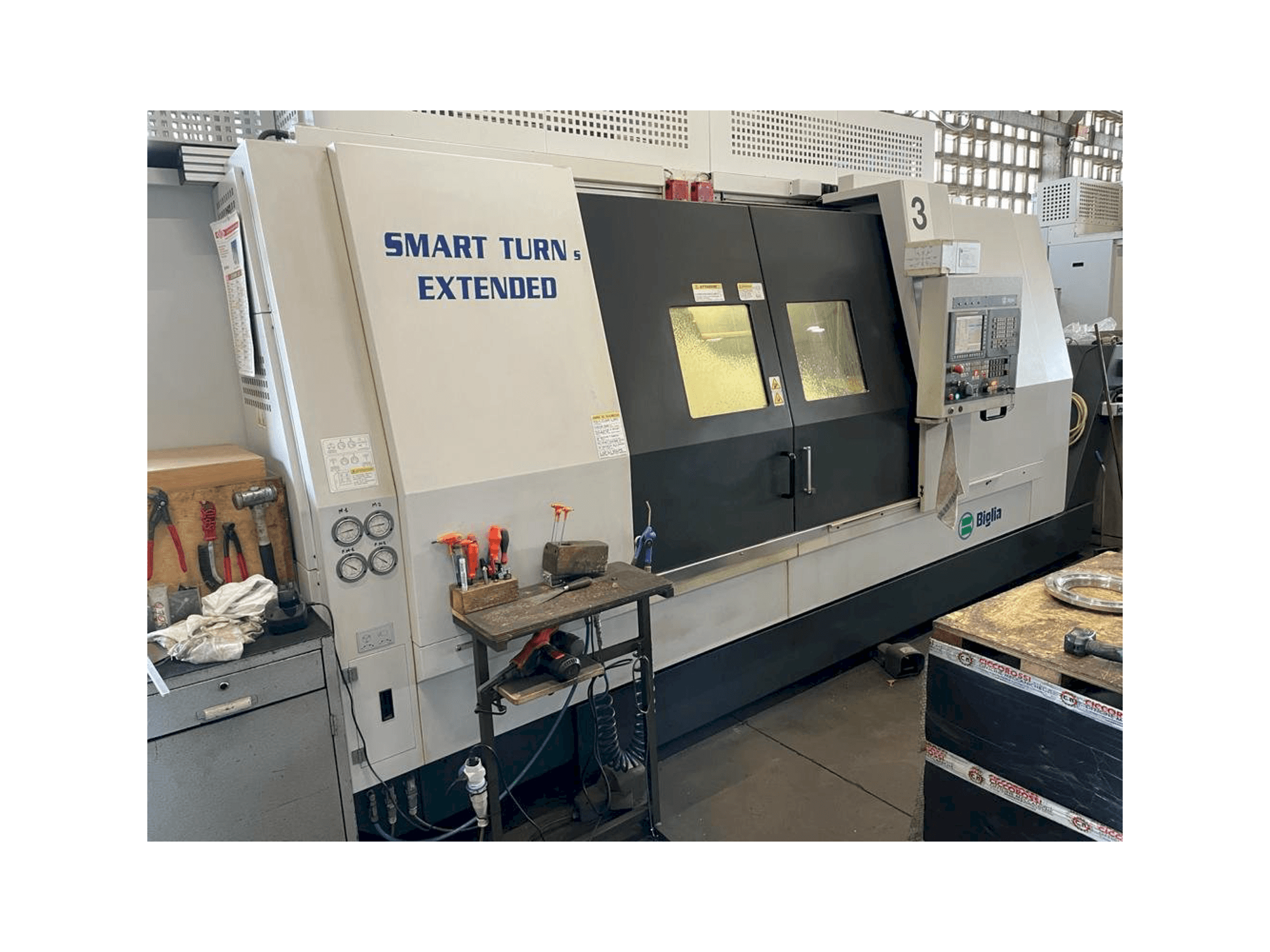

This BIGLIA Smart Turn S Extended lathe machine was manufactured in 2013. It has a total of 8670 production hours. The machine is operated through a FANUC 31 i B5 control unit. The machine has a spindle speed up to 3000 rpm. Multitasking lathe with HSK43 milling head with electrospindle termically stabilizated.
Overview
- brand: Biglia
- year: 2013
- MODEL: Smart Turn S Extended
- production hours: 8670
- application type: Turning
- Location: Italy
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - Biglia Smart Turn S Extended
Control Unit
- Control Brand: FANUC
- Control Model: 31 i B5
Dimensions
- Machine Depth: 2300 mm
- Machine Height: 2400 mm
- Machine Weight: 10500 kg
Movement
- B-axis Max: 210°
- C-axis: 0.001°
- X-axis Travel: 580 mm
- Y-axis Travel: 210 mm
- Z-axis Travel: 1390 mm
Technical Specification
- Spindle Speed: 3000 RPM
- Through-spindle Coolant: Yes
Additional Information
Additional equipment
- Lunette included
Machine Benefits
Qualitative Machine Benefits
- All manuals available
Technical Machine Benefits
- X,y,z,c and b axis
- Main spindle 3000 rpm
- Subspindle 4000 rpm
- Milling head spindle hsk43 with 8. 000 rpm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
