BORCHÊ - BS200PL-INJ-BOR-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

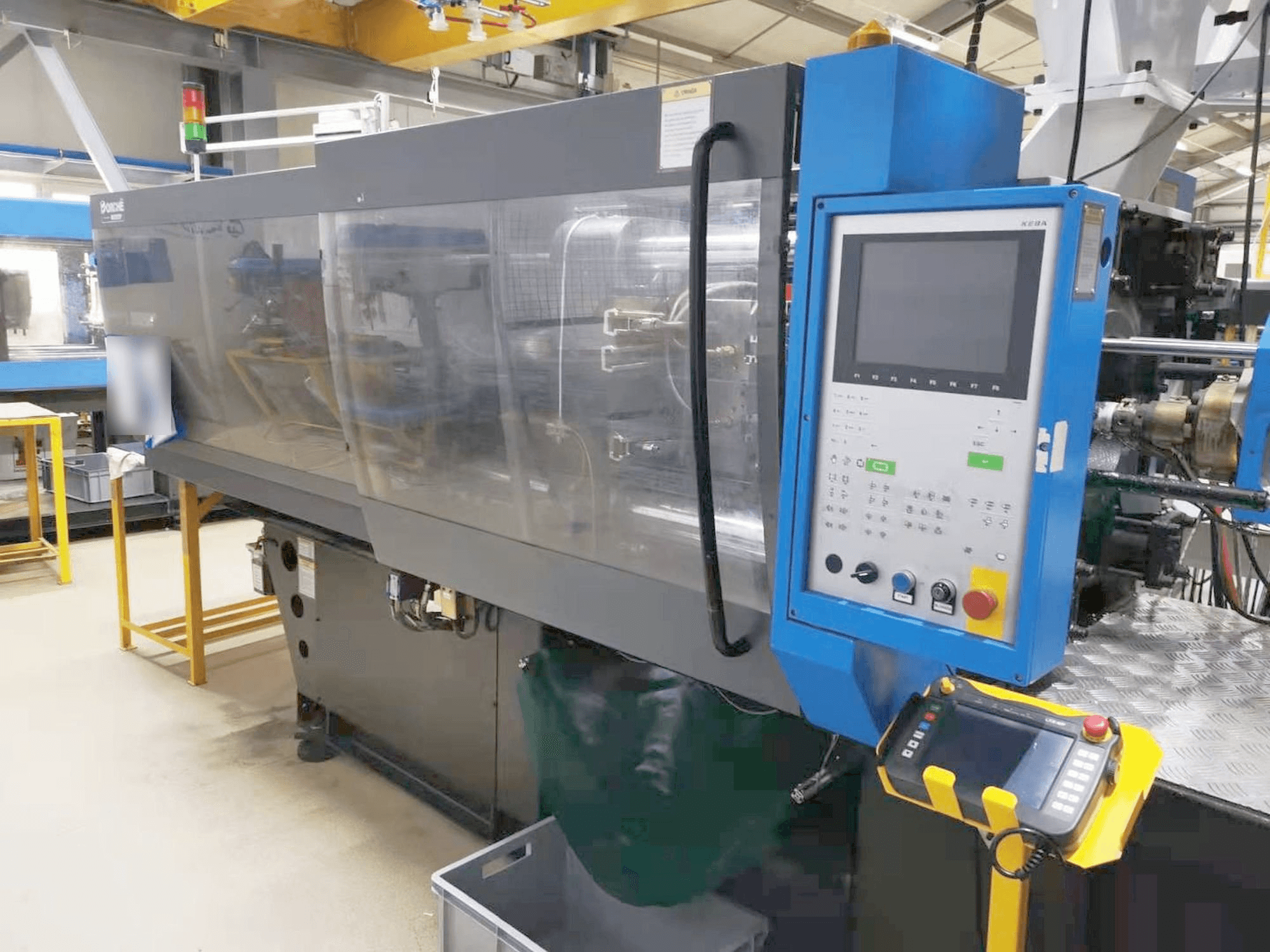

This BORCHÊ BS200 Injection Moulding Machine was built in the year 2012. It has been operative for 8047 hours. This machine is equipped with a KEBA control unit. It has a clamping force 2000 kN and an ejector stroke 150 mm. This includes a nitrided screw. It is in very good technical conditions and it is ready for tests.

Overview

brand: BORCHÊ
year: 2012
MODEL: BS200
production hours: 8047
application type: Injection Moulding
Location: Poland
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - BORCHÊ BS200

General Data

Measurements width: 5430 mm
Measurements depth: 1630 mm
Measurements height: 1990 mm
Machine weight: 5900 kg

Injection Unit

Screw diameter: 50 mm

Clamping unit

Clamping force: 2000 KN
Opening stroke: 465 mm
Mould height min: 180 mm
Mould height max: 550 mm
Size of mold platens: 750 x 750 mm
Ejector stroke: 150 mm

Media

Main electronic connection: 400 V / 50 Hz

Additional Equipment

- Nitrided screw

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection capacity - 481 cm3
- - Injection weight – 452 g
- - Clearance between columns: 510 x 510 mm
Qualitative Machine Benefits:
- - The machine is in very good technical condition.
- - Full documentation.
- - Still at production, ready for tests.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
