Brother TC-22A

Photo Gallery

Brother - TC-22AFR-MIL-BRO-1999-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

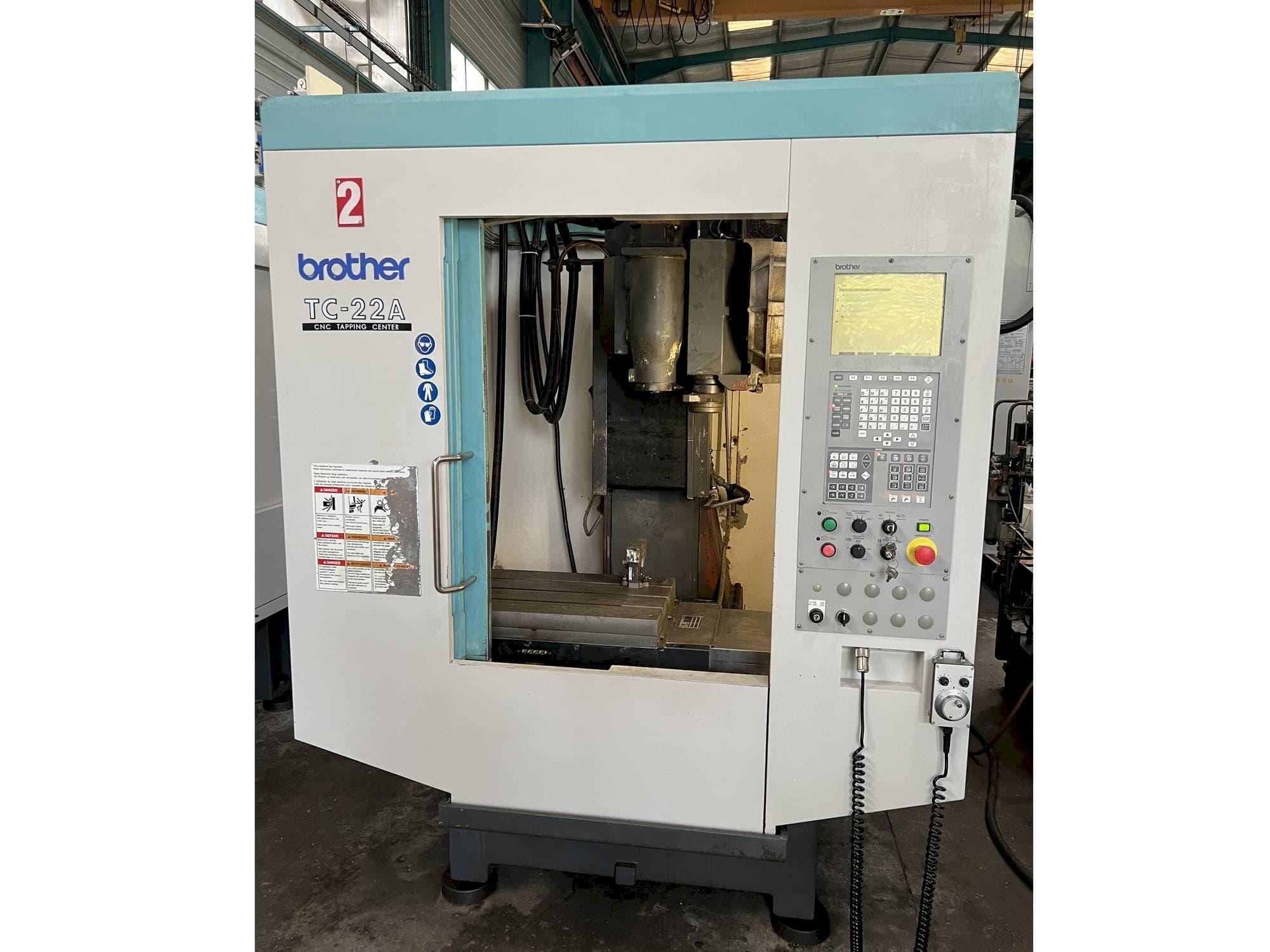

Brother TC-22A vertical machine center

This Brother TC-22A vertical machine center was built in the year 1999 in Japan. It is equipped with a BROTHER A00 control unit. The machine has a spindle speed of 100 - 12000 rpm.

Overview

brand: Brother
year: 1999
MODEL: TC-22A
production hours: 0
application type: Milling
Location: France
machine type: Vertical Machining Centre
control unit brand: BROTHER

Technical Information - Brother TC-22A

General Data

Measurements width: 1640 mm
Measurements depth: 2100 mm
Measurements height: 2274 mm
Machine weight: 2250 kg

Control Unit

Model: A00
Brand: BROTHER

Main drive

Spindle speed range: 100 - 12.000 1/MIN
Tool taper: BT30

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 410 mm
Z-AXIS Movement: 610 mm

Table

Outer length: 650 mm
Outer width: 400 mm
Table load: 200 kg

Media

Main electronic connection: 400 V
Power consumption: 11 kW

Additional Information

Machine Benefits

Qualitative Machine Benefits

Complete documentation
The machines have been fully revised and prepared
100% ready for production

Technical Machine Benefits

Magazine tool capacity: 26 tools
Tool selection: random
Tool exchange time: 0,7 sec
Interface: ethernet
Watering system
Set of toll holders & chucks

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
