Bystronic - Bystar 3015HR-LAS-BYS-1996-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Sheet Metal Machinery
- Bystronic Bystar 3015 Laser Cutting Machine

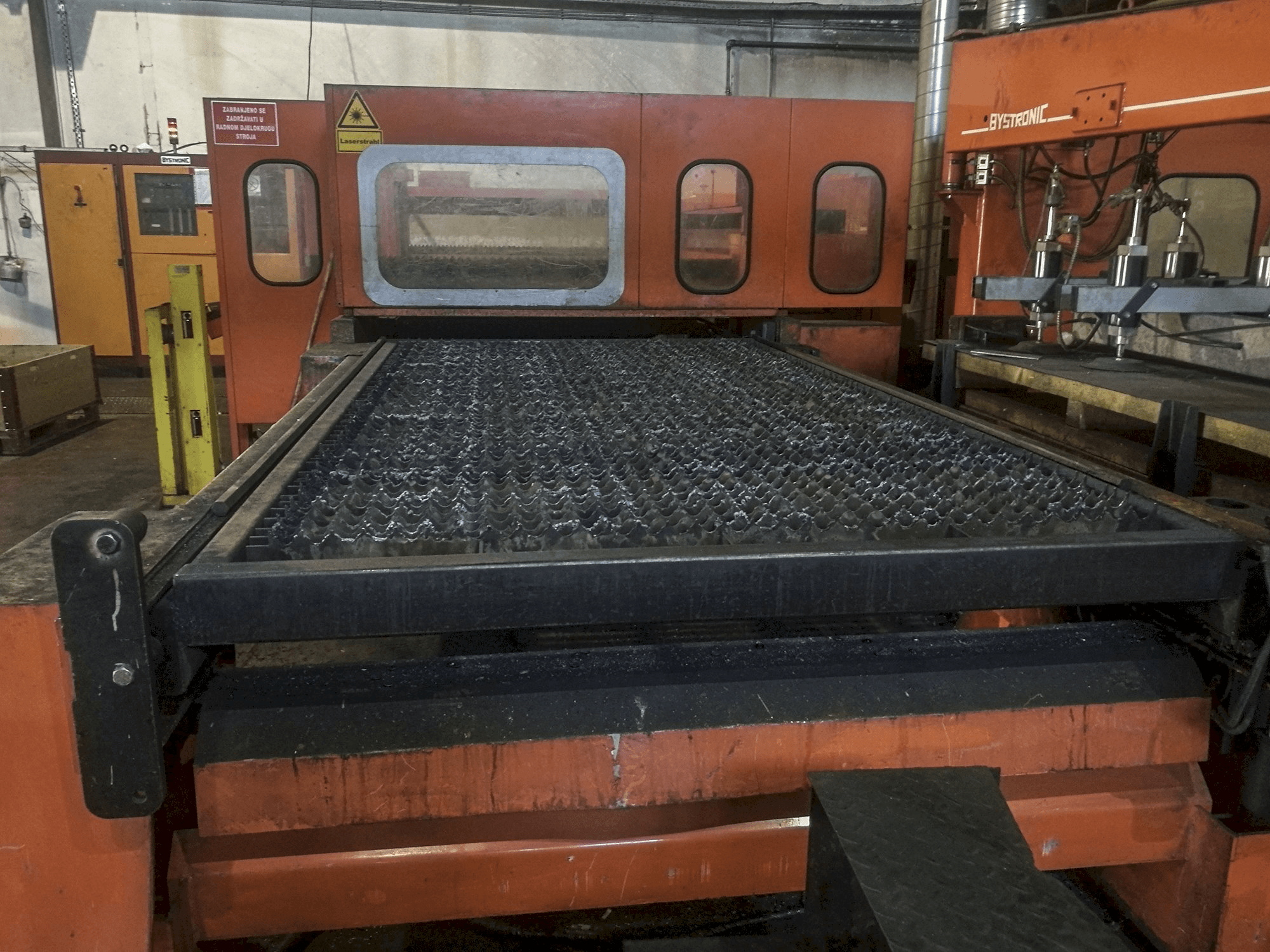

This Bystronic Bystar 3015 Laser Cutting Machine from 1996 was manufactured in Switzerland and has a operation time of 61571 production hours, of which 34508 are laser hours. Operated through a Bystronic Control unit, this machine has mainly worked with steel and aluminium sheets between 3-6 mm of thickness and was regularly serviced. Beside 2 laser cutting heads and a second working table, this machine comes with a bundle of additional equipment.
Overview
- brand: Bystronic
- year: 1996
- MODEL: Bystar 3015
- production hours: 61571
- application type: Cutting
- Location: Croatia
- machine type: CO2 Laser Cutting Machine
- control unit brand: BYSTRONIC
Technical Information - Bystronic Bystar 3015
General Data
- Measurements width: 5000 mm
- Measurements depth: 10000 mm
- Measurements height: 2100 mm
- Machine weight: 6000 kg
Control Unit
- CNC main language: German
- Brand: BYSTRONIC
Main drive
- Laserpower: 3 kW
- Laser type: CO2
- Laser brand: Bystronic BTL 2800
Movement
- X-AXIS Movement: 3000 mm
- Y-AXIS Movement: 1500 mm
Max Material thickness
- Steel: 20 mm
- Stainless steel: 15 mm
- Aluminum: 6 mm
Machine specific data
- Size of cutting head 1: 7.5"
- Size of cutting head 2: 5.5"
Media
- Main electronic connection: 400 V
- Power consumption: 43 kVA
- Internal cooling: Yes
Additional Equipment
- - Laser Cutting Head 5.5"
- - Laser Cutting Head 7.5"
- - Gripper for Sheets
- - Optical Barriers
- - Cooler
- - Dust Filter
- - Computer
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
