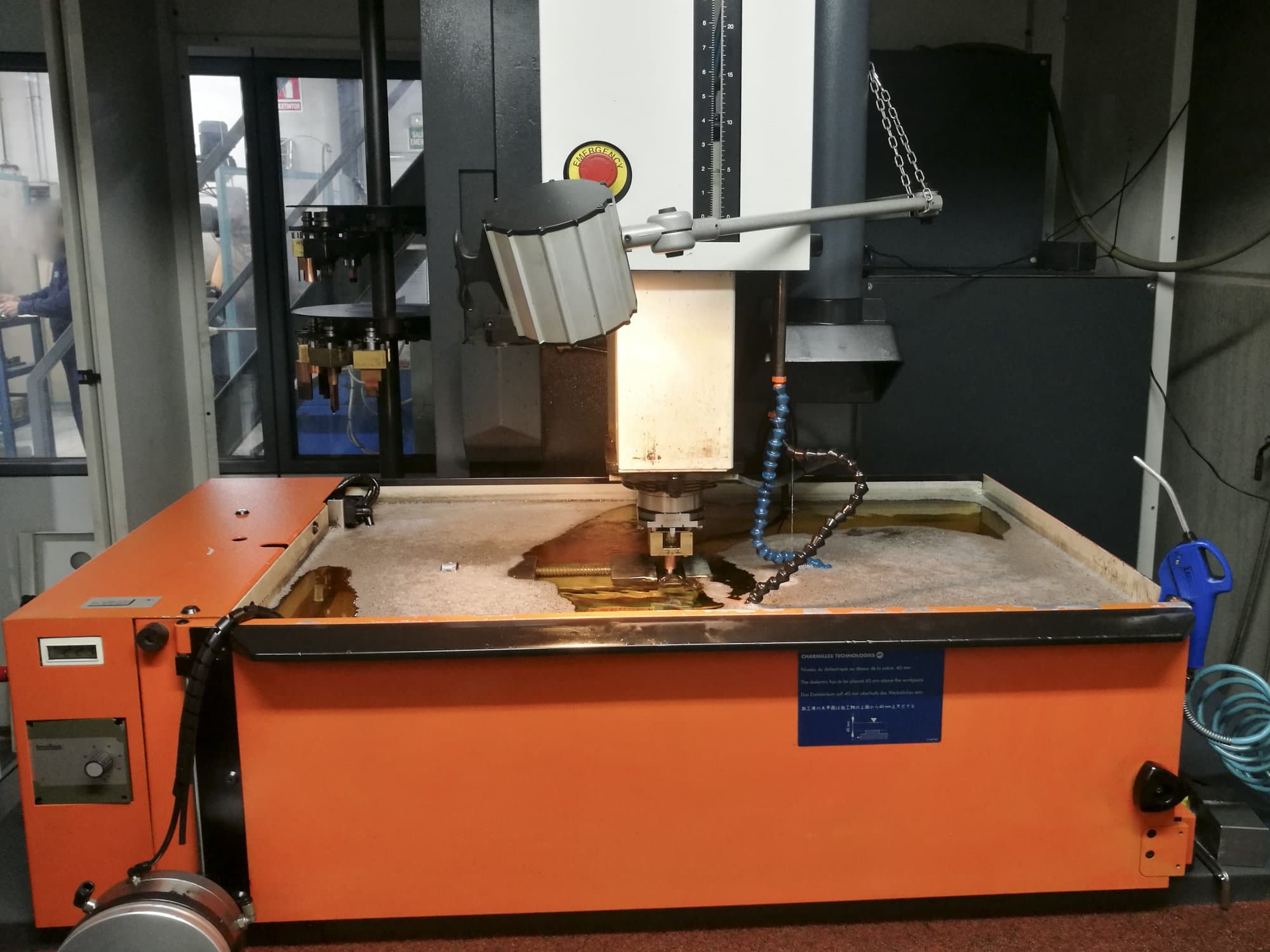

Front view of CHARMILLES ROBOFORM 2000+ Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

CHARMILLES ROBOFORM 2000+

Photo Gallery

CHARMILLES - ROBOFORM 2000+ES-EDM-CHA-1996-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
CHARMILLES ROBOFORM 2000+ Erosion Machine

This CHARMILLES ROBOFORM 2000+ Erosion Machine was manufactured in Switzerland in 1996 and has a working record of 44465 production hours. Operated through a CHARMILLES control unit, this machine has mostly processed tempered steel and hard metals up to 20 millimetres in the past.

Overview

brand: CHARMILLES
year: 1996
MODEL: ROBOFORM 2000+
production hours: 44465
application type: EDM
Location: Spain
machine type: Die-Sinking EDM Machine
control unit brand: CHARMILLES

Technical Information - CHARMILLES ROBOFORM 2000+

General Data

Measurements width: 2790 mm
Measurements depth: 1910 mm
Measurements height: 2540 mm
Machine weight: 3450 kg

Control Unit

Brand: CHARMILLES

Movement

X-AXIS Movement: 320 mm
X-AXIS Working Feed: 15 mm/s
X-AXIS Accuracy: 0.5 µm
Y-AXIS Movement: 220 mm
Y-AXIS Working Feed: 15 mm/s
Y-AXIS Accuracy: 0.5 µm
Z-AXIS Movement: 320 mm
Z-AXIS Working Feed: 15 mm/s
Z-AXIS Accuracy: 0.5 µm
C-AXIS Movement: 360° MM
C-AXIS Working Feed: 100 tr/min
C-AXIS Feed Force: 20 Nm
C-AXIS Accuracy: 1/1000°

Workpiece

Workpiece x: 550 mm
Workpiece y: 880 mm
Workpiece z: 225 mm
Workpiece weight: 550 kg

Table

Outer length: 560 mm
Outer width: 400 mm
Height adjustment: 550 mm
TSlots size: 12 mm
Number of tslots: 3
Distance between: 125 mm

Media

Main electronic connection: 400 V / 50 Hz / 3P / 16 A
Power consumption: 5 kVA
Air pressure: 6 bar
Dielectic tank: 370 L

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
