Thank you for your visit
This machine was recently sold. Take a look at similar options or get in touch with us directly.
CHARMILLES - Roboform 40IE-EDM-CHA-1993-00001
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com

- GINDUMAC
- Products
- Machine Tools

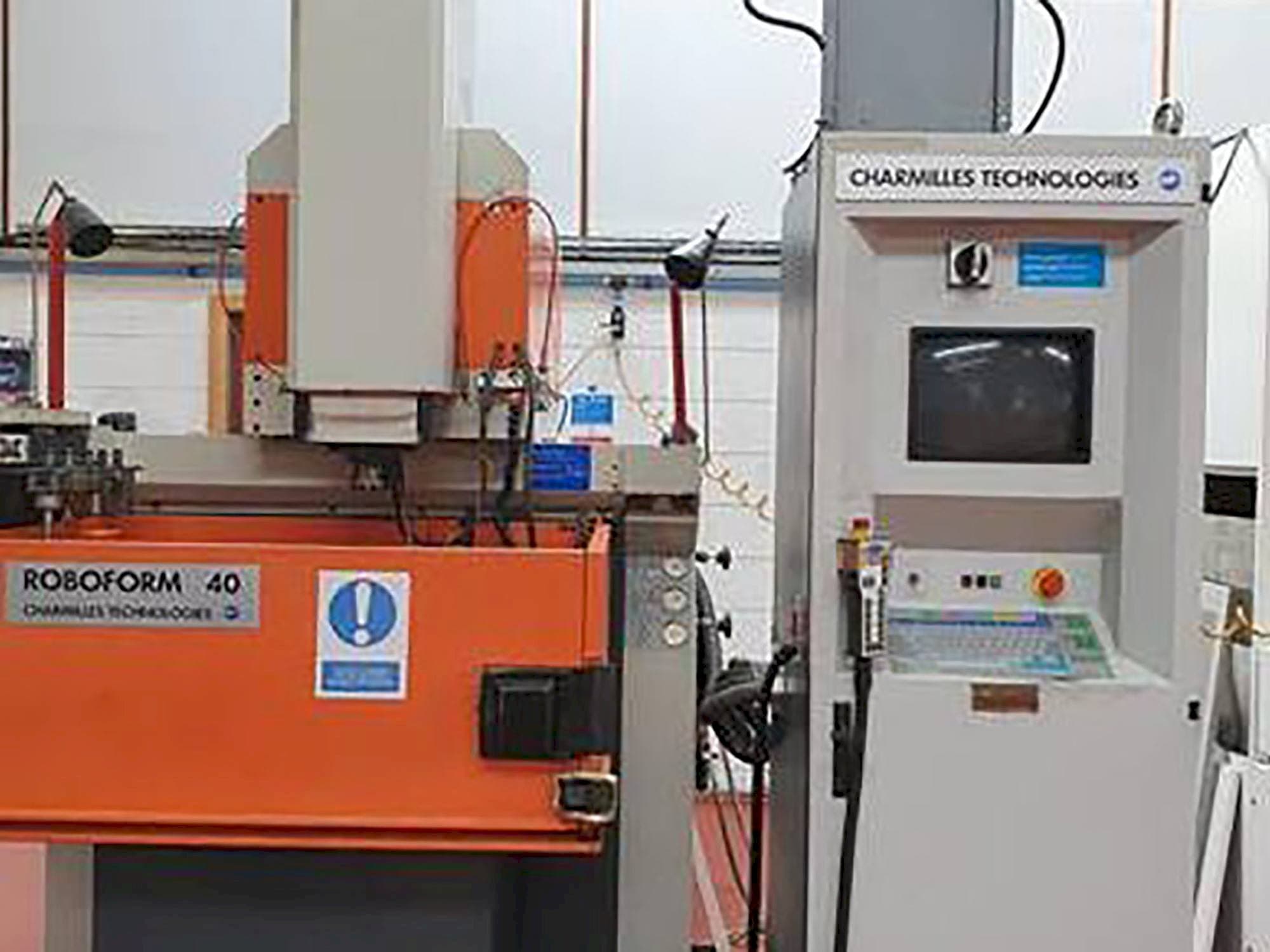

- CHARMILLES Roboform 40 Erosion Machine
This CHARMILLES Roboform 40 Erosion Machine was built in 1993 in Switzerland and has been working for 12500 hours. This well maintained machine incorporates a 6 Station Tool Holder.
Overview
- brand: CHARMILLES
- year: 1993
- MODEL: Roboform 40
- production hours: 12500
- application type: EDM
- Location: Ireland
- machine type: Die-Sinking EDM Machine
- control unit brand: CHARMILLES
Technical Information - CHARMILLES Roboform 40
General Data
- Measurements width: 2300 mm
- Measurements depth: 1560 mm
- Measurements height: 2850 mm
- Machine weight: 3430 kg
Control Unit
- CNC language customizable: Yes
- Brand: CHARMILLES
Movement
- X-AXIS Movement: 500 mm
- Y-AXIS Movement: 400 mm
- Z-AXIS Movement: 450 mm
- B-AXIS Movement: 360 Degrees MM
Workpiece
- Workpiece weight: 1000 kg
Table
- Outer length: 750 mm
- Outer width: 500 mm
Media
- Main electronic connection: 380 V
- Power consumption: 6 kVA
Additional Equipment
- - 6 Station Tool Changer
Additional Information
- Technical Machine Benefits:
- - Erowa tool type
- - Working tank without tool changer: 1220 x 465 x 795mm
- Qualitative Machine Benefits:
- - Very good conditions
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
Asset Financing
