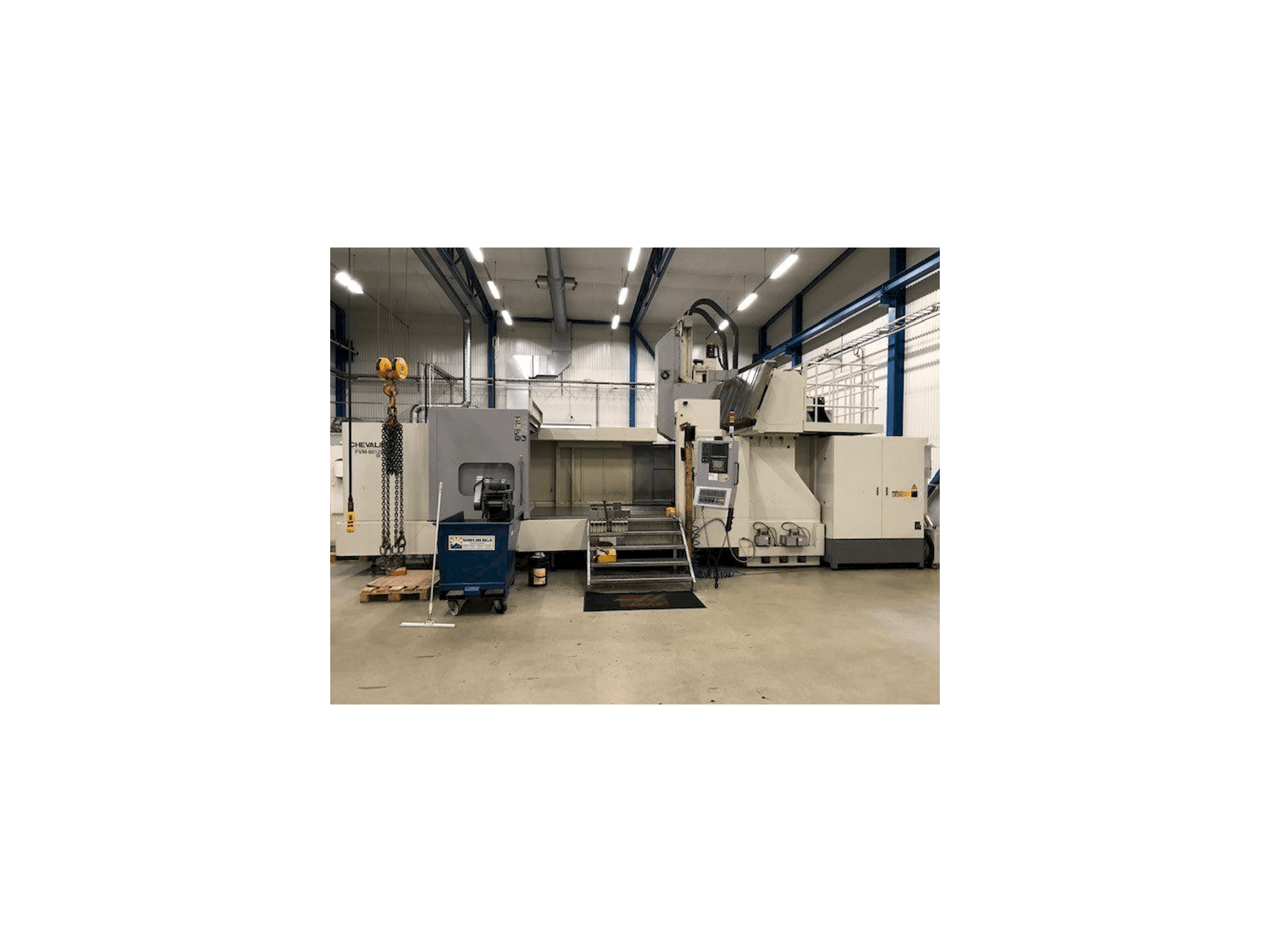

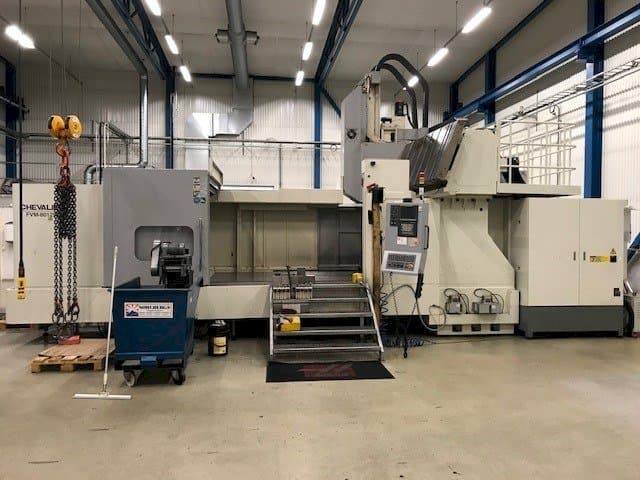

Front view of Chevalier FVM-80125DC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Chevalier FVM-80125DC

Photo Gallery

Chevalier - FVM-80125DCSE-MIL-CHE-2010-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Chevalier FVM-80125DC Milling Machine

This Chevalier FVM-80125DC Milling Machine was built in Taiwan in 2010. It is operated through a FANUC OiM Control unit. This heavy duty, double column, mould making machining centre is capable of working with a spindle speed up to 6000 rpm.

Overview

brand: Chevalier
year: 2010
MODEL: FVM-80125DC
application type: Milling
Location: Sweden
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - Chevalier FVM-80125DC

General Data

Measurements width: 8500 mm
Measurements depth: 5300 mm
Measurements height: 5700 mm
Machine weight: 37000 kg

Control Unit

Model: OiM
CNC main language: English
CNC language customizable: Yes
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Spindle motor power: 26 kW

Movement

X-AXIS Movement: 3200 mm
X-AXIS Rapid traverse: 10 m/min
Y-AXIS Movement: 2100 mm
Y-AXIS Rapid traverse: 10 m/min
Z-AXIS Movement: 1000 mm
Z-AXIS Rapid traverse: 12 m/min

Workpiece

Workpiece x: 3100 mm
Workpiece y: 1900 mm
Workpiece z: 1000 mm
Workpiece weight: 10000 kg

Table

Outer length: 3200 mm
Outer width: 1800 mm
Number of tslots: 11
Distance between: 170 mm

Tools

Slots in storage: 60
Max weight: 20 kg
Max tool diameter: 215 mm
Max tool length: 350 mm
Type of tool holder: BT50

Media

Main electronic connection: 380 V
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine history

End product: Moulds
Industries: Mould making industry

Machine Benefits

Technical Machine Benefits:
- - Remote jog handle
- - Through spindle coolant 30 bar
- - Coolant jet arround spindle with side cooling
- - X/y c3 class hollow ball screws with oil coolant system
- - Chain type chip conveyor in y-axis
- - Spindle oil cooling system
- - Dual screw type chip conveyor on x-axis
- - Box way y / z: 175/70
- - Linear guides in x: 5,800 x 55
- - Feed rate: 1-7,000mm/min
Qualitative Machine Benefits:
- - Fanuc manual guide control option
- - Automatic lubrication system

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
