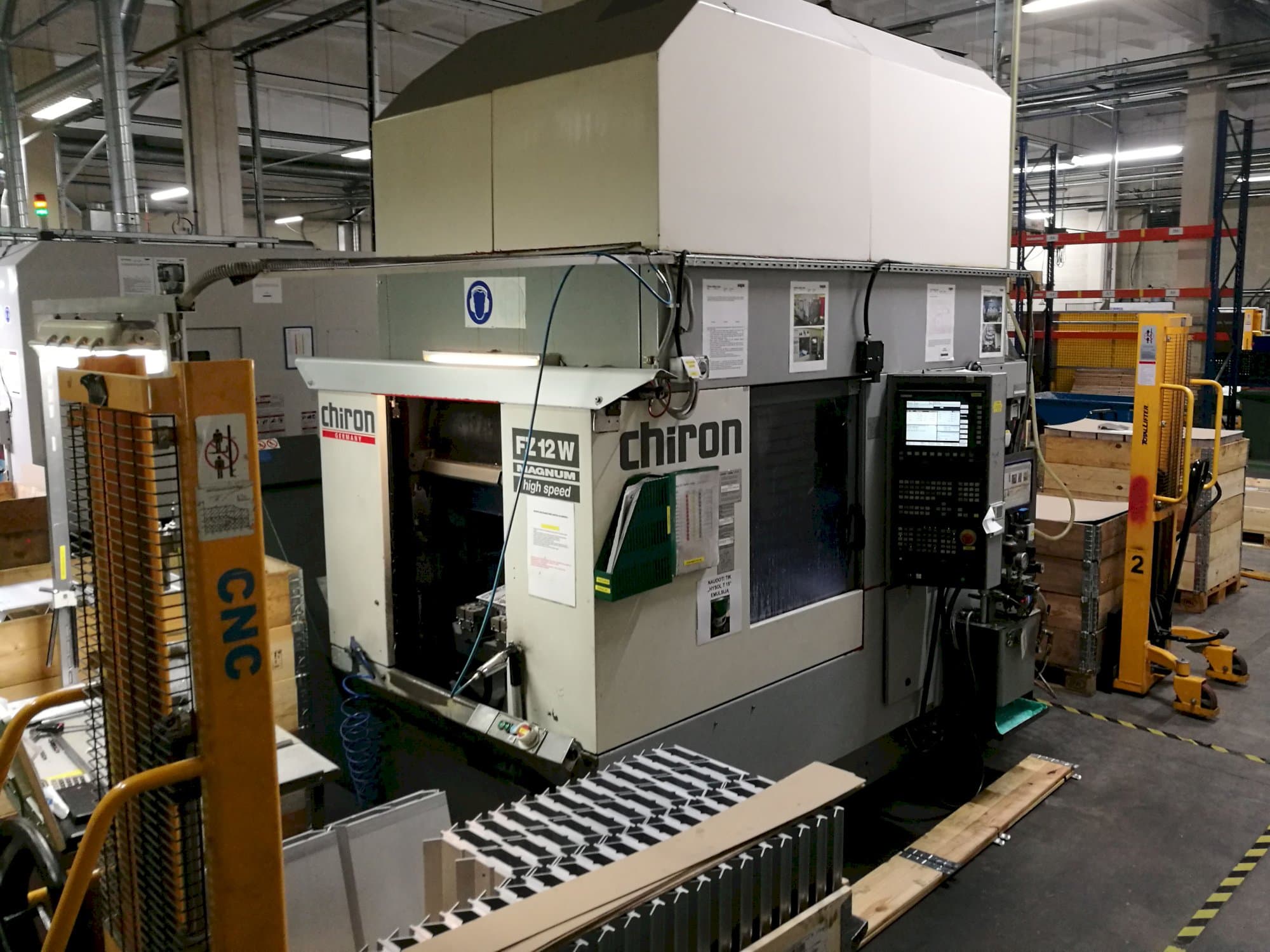

Chiron FZ 12 W Vertical Machining Center

This Chiron FZ 12 W Vertical Machining Center from 1999 was made in Germany and counts a production time of 46906 working hours since then. Operated through a SIEMENS Control unit, this high speed machine with 10500 rpm has mainly worked with aluminium parts during the past. A Chip conveyor and a filter from Knoll are included as additional equipment in the machine price. An Emulsion Absorber is available upon request.

Overview

brand: CHIRON
year: 1999
MODEL: FZ 12 W
production hours: 46906
application type: Milling
Location: Lithuania
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - CHIRON FZ 12 W

General Data

Measurements width: 2240 mm
Measurements depth: 3550 mm
Measurements height: 2450 mm
Machine weight: 4000 kg

Control Unit

CNC main language: Swedish/ English
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 10500 rpm 1/MIN

Movement

X-AXIS Movement: 550 mm
Y-AXIS Movement: 400 mm
Z-AXIS Movement: 450 nn MM

Workpiece

Workpiece x: 550 mm
Workpiece y: 400 mm
Workpiece z: 450 mm

Table

Outer length: 300 mm
Outer width: 660 mm

Tools

Slots in storage: 12
Max weight: 4 kg
Max tool diameter: 65 mm
Max tool length: 220 mm
Type of tool holder: HSK 63

Media

Main electronic connection: 400 V
Power consumption: 20 kVA
Chip conveyor: Yes

Additional Equipment

- Chip Conveyer Knoll
- Filter Knoll
- Emulsion Absorber (upon request)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
