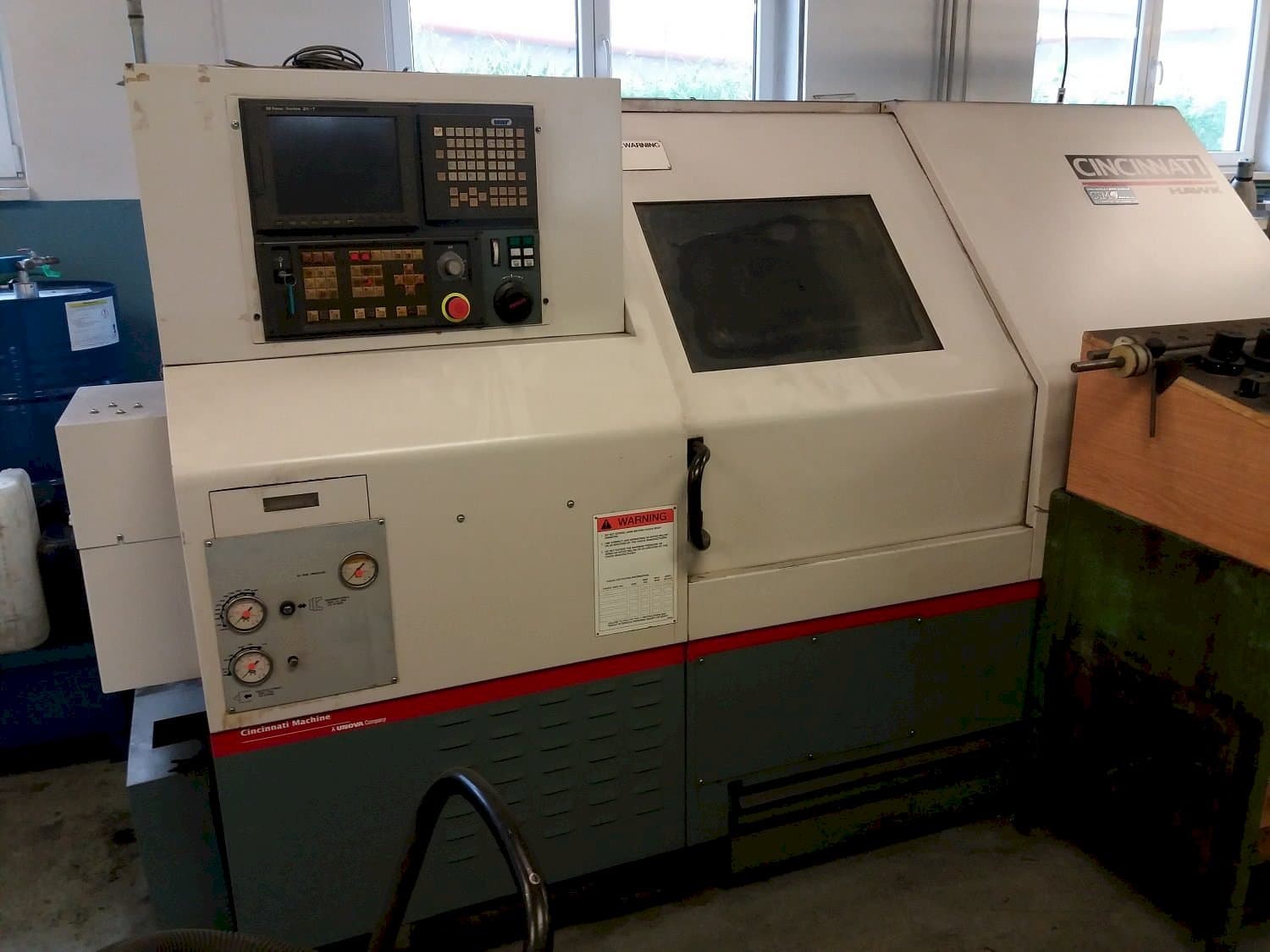

Front view of Cincinnati HAWK-200M machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Cincinnati HAWK-200M

Photo Gallery

Cincinnati - HAWK-200MCZ-TUR-CIN-2002-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Cincinnati HAWK-200M Lathe

This Cincinnati HAWK-200M Lathe was built in 2002 in the United Kingdom and has been operative for 20000 hours since then. Equipped with a FANUC 21iT Control unit, this machine can perform with a spindle speed up to 4500 rpm. It presents excellent conditions.

Overview

brand: Cincinnati
year: 2002
MODEL: HAWK-200M
production hours: 20000
application type: Turning
Location: Czech Republic
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Cincinnati HAWK-200M

General Data

Measurements width: 3000 mm
Measurements depth: 1900 mm
Measurements height: 1800 mm
Machine weight: 4500 kg

Control Unit

Model: 21iT
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/MIN
Spindle motor power: 15 kW

Movement

X-AXIS Movement: 245 mm
Z-AXIS Movement: 520 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 12
Type of tool holder: VDI 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning diameter 324 mm
- - Max. Swing over bed 530 mm
- - Max. Turning length 520 mm
- - Max. Bar thru spindle dia. 65 mm
- - Spindle nose a2-6
- - Tailstock quill dia. 95 mm (taper 5mt)
Qualitative Machine Benefits:
- - Very good condition, has been rarely used in the last 10 years

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
