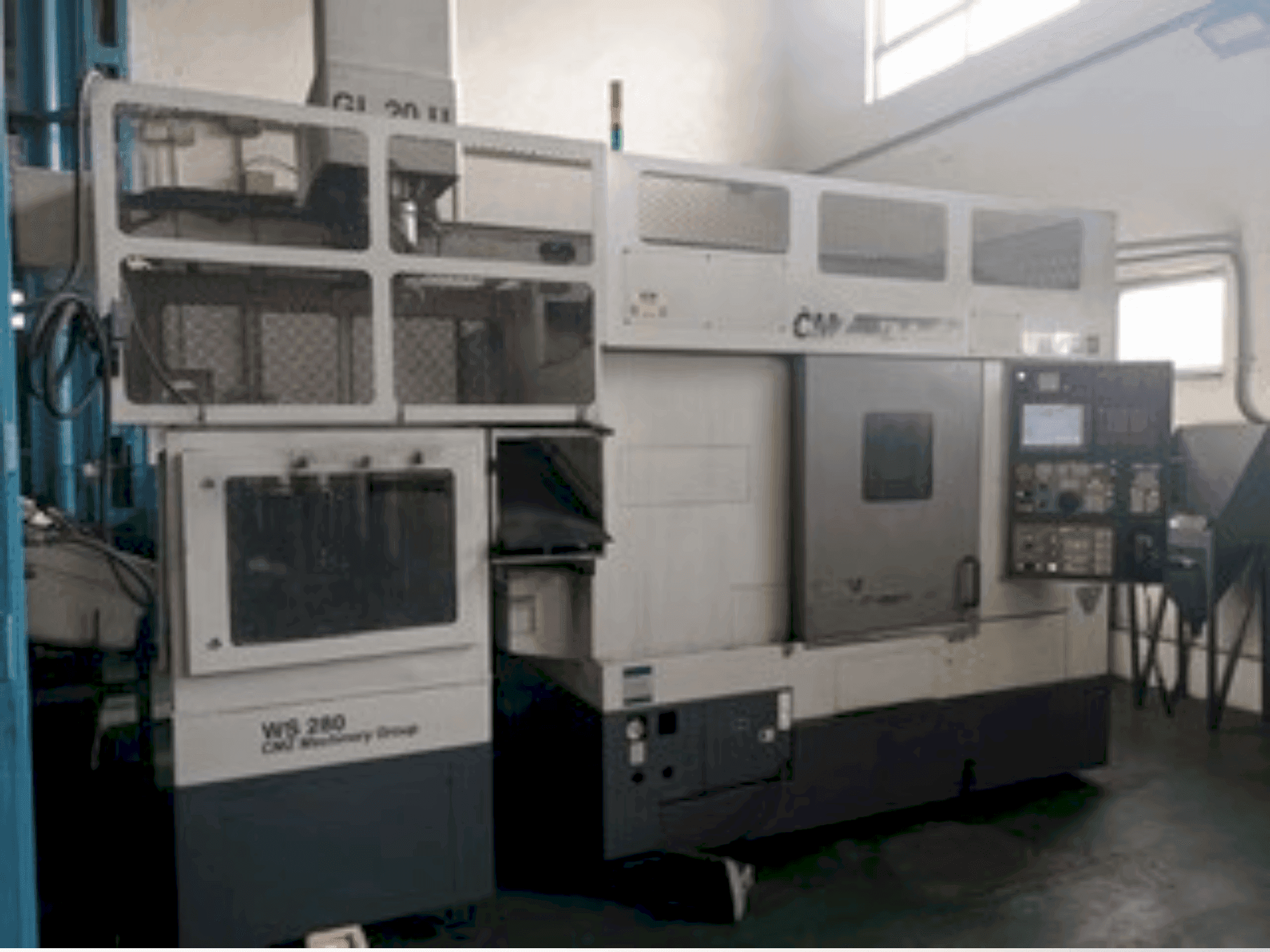

This CMZ TA 30-400 lathe was manufactured in 2015. It features a maximum turning diameter of 460 mm and supports bar diameters up to 78 mm. The spindle reaches speeds up to 3500 rpm, powered by a robust 42 kW motor, ensuring high torque of 1020 Nm. Equipped with a 12-position turret, rapid speeds on X and Z axes are 30 m/min, enhancing productivity. A great opportunity to buy this CMZ TA 30-400 lathe. Contact us for further details regarding this lathe.
Overview
- brand: CMZ
- year: 2023
- MODEL: model
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
Technical Information - CMZ model
Movement
- Number of Axes: 2
- X-axis Travel: 310 mm
- Z-axis Travel: 400 mm
Technical Specification
- Max. Workpiece Diameter: 460 mm
- Spindle Power: 42 kW
- Spindle Speed: 3500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Tool change time: 30° 0. 2 s – 180° 0. 5 s
- Locking force at 45 bar: 5090 kgf
- High spindle power of 42 kw (max. ), rapid speeds on x, z, and b axes for efficient machining, robust torque for heavy-duty operations
- Precision with rapid speeds and axis acceleration of 1g
Technical Machine Benefits
- Axis acceleration: 1g = 9. 8 m/s²
- Distance between spindle and tailstock center: 449 mm
- Bearing outer diameter: 200 mm
- Bearing inner diameter: 130 mm
- Spindle inner diameter: 86 mm
- Bar diameter: 78 mm
- Chuck diameter: 250 / 315 mm
- Chuck bore diameter: 77 mm
- Torque: 1020 nm (maximum), 720 nm (s6 40%)
- Tool section: 25 x 25 (50) mm
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
