- ➤ Used CMZ TTL-66-66-T1Y-T2Y Lathe For Sale | gindumac.com

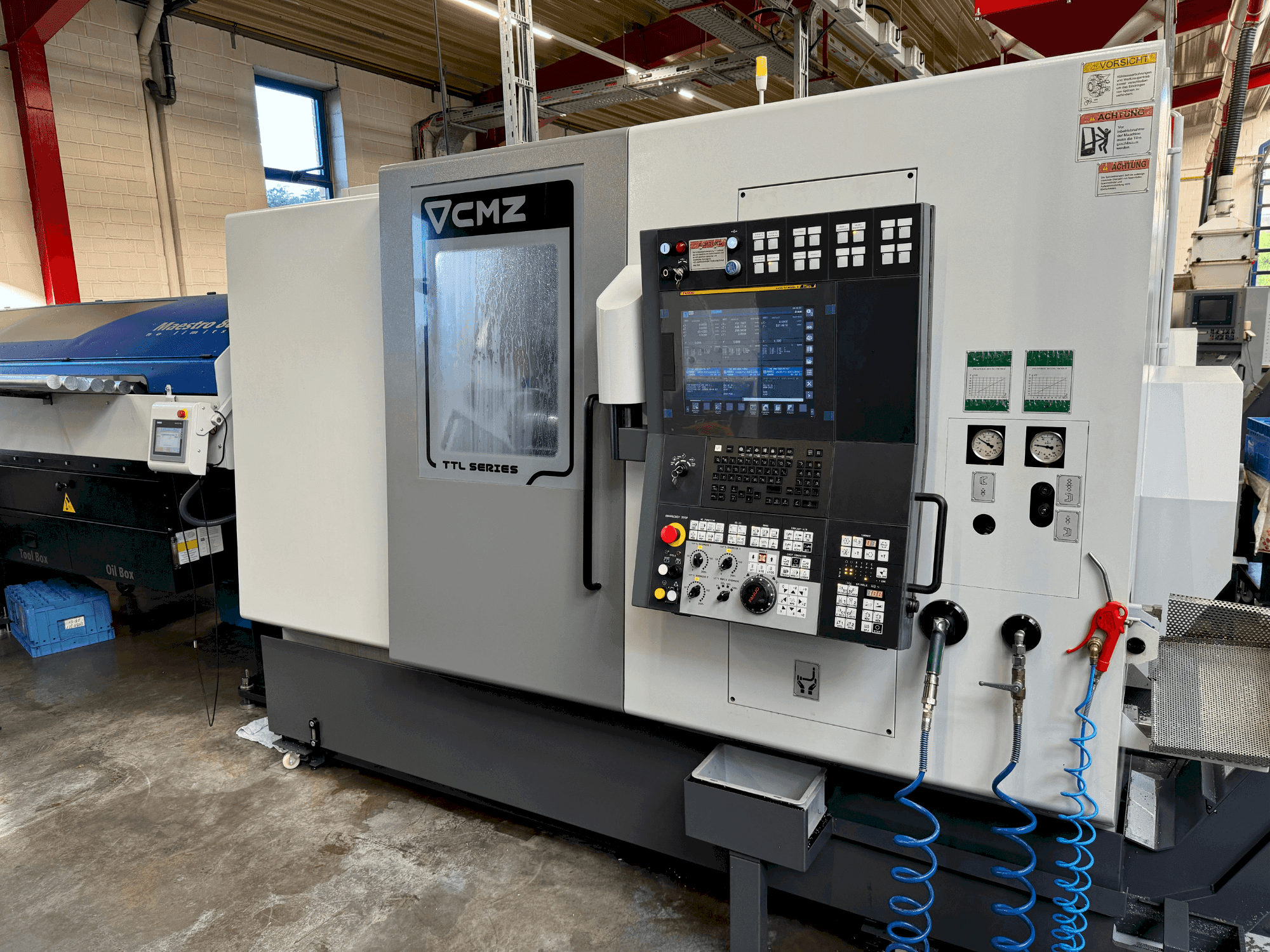

This 3-axis CMZ TTL-66-66-T1Y-T2Y lathe was manufactured in 2022. It features a maximum rod diameter of 66mm, turning diameter up to 220mm, and main spindle power of 35Kw. The machine includes a 70 bar high-pressure system with a filter system and an additional tank. A second identical machine is also available from 2022. For more information about this lathe, please reach out to us.
Overview
- brand: CMZ
- year: 2022
- MODEL: TTL-66-66-T1Y-T2Y
- application type: Turning
- Location: Germany
- machine type: Multi-Spindle Turning Machine
Technical Information - CMZ TTL-66-66-T1Y-T2Y
Main drive
- Number of spindles: 1
- Spindle speed range: 4000 rpm 1/MIN
- Spindle motor power: 35 kW
- Number of axis: 9
Additional Information
- Technical Machine Benefits:
- - Max rod diameter: 66 mm
- - Max turning diameter: 220 mm
- - Torque: 205 nm
- - Distance between main and counter spindle: 800 mm
- - Speed agw: 12000 min-1
- - Number of driven tool positions: 12
- - High-pressure system: 70 bar with filter system and additional tank
- - 2nd identical machine available also from 2022 // the hour meters of the machines are Machine 1 : 8086 hours / Machine 2 : 10775 hours
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
