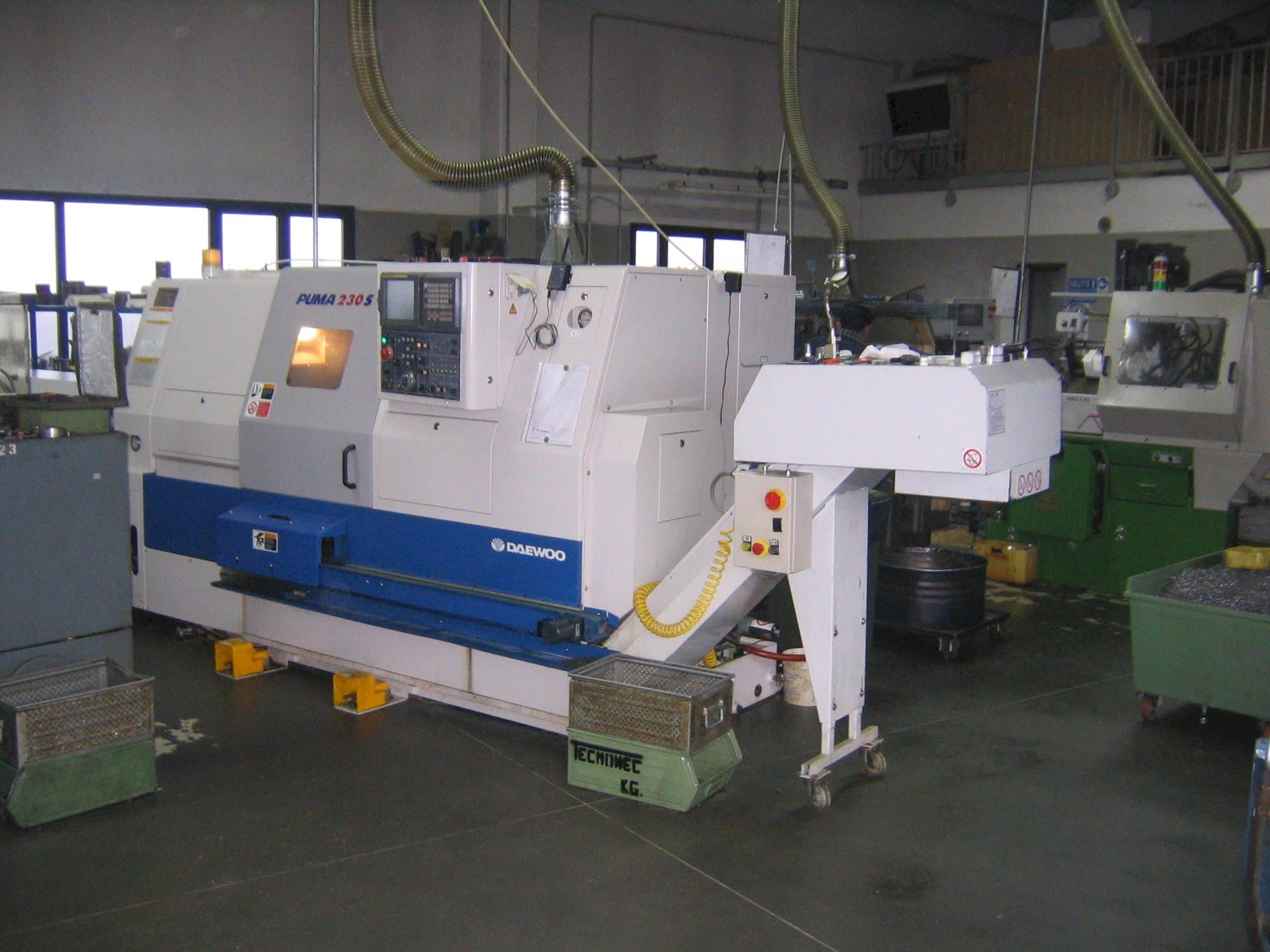

Daewoo Puma 230SC Lathe

This Daewoo Puma 230SC Lathe was manufactured in the year 2001 in Korea. It is equipped with a FANUC Series 18iT control unit and has 4 axis. The machine has SPINDLE TURNS 1 of 3500 rpm and SPINDLE TURNS 2 of 6000 rpm, includes many original tool holders and tool holders, is in good condition, and is well maintained.

Overview

brand: DAEWOO
year: 2001
MODEL: Puma 230SC
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DAEWOO Puma 230SC

General Data

Machine weight: 4240 kg

Control Unit

Model: Series 18iT
Brand: FANUC

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 205 mm
Z-AXIS Movement: 580 mm
B-AXIS Movement: 580 mm
C-AXIS Movement: 360 MDR1 MDR2 MM

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Bar passage diameter : 75 mm
- - Main spindle and diameter sub spindle: 42 mm
- - Spindle 1 with ba60 toolholder (many included) bellegrandi asa8
- - Reduction diameter :42 mm
- - Reduction for double cone collets (some included) up to diameter 75 mm
- - Counter spindle with jaws and soft jaws
- - (many included, collet holder bellegrandi from d. 42
- - Numerous ba42 pliers.
- - B axis guides from year 2017, spindle belts and spindle fan 1 replaced in 10/2022.
- - Lns sprint 2: 80mm
Qualitative Machine Benefits:
- - Spindle original never used with 3 tender jaws.
- - Spindle bearings 1 and 2 replaced
- - Twisting on x, z axes redone, crankcase replaced
- - Many original tool holders and tool holders, some never used.
- - Machine in production and fully functional.
- - Bar loader with 2 series of guides
- - Overhauled air system in 2021 and oil pump guide replaced in 2018, fully functional.
- - N. Spindle turns 1: 3500 rpm
- - N. Spindle turns 2: 6000 rpm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
