➤ Used DECKEL MAHO DMC 60 H Hy Din For sale | gindumac.com

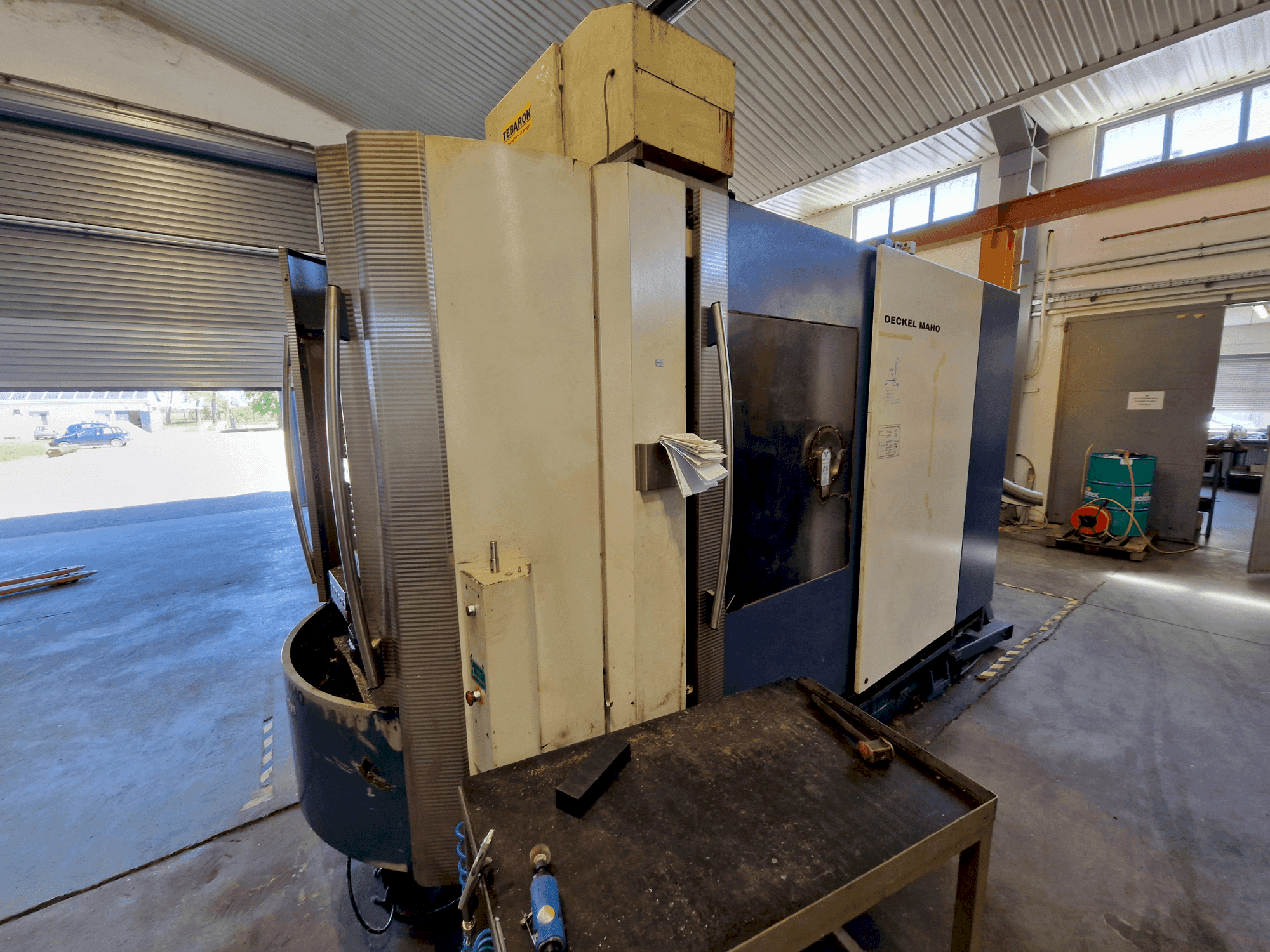

This 4-axis DECKEL MAHO DMC 60 H Hy Din horizontal machining center was manufactured in 2001. It features a robust direct drive motor with speeds up to 15,000 rpm and a torque of up to 191 Nm. The machine includes a versatile tool magazine with capacities ranging from 40 to 180 tools and a maximum tool weight of 12 kg. Ideal for complex machining tasks, the DECKEL MAHO DMC 60 H Hy Din machine we have for sale. Contact us for further details.

Overview

brand: DECKEL MAHO
year: 2001
MODEL: DMC 60 H Hy Din
production hours: 28815
application type: Milling
Location: Hungary
machine type: Horizontal Machining Centre

Technical Information - DECKEL MAHO DMC 60 H Hy Din

Main drive

Spindle speed range: 8000 (standard), 15000 (optional) 1/MIN
Spindle motor power: 13 kW (S1), 20 kW (S6)
Tool taper: SK 40, HSK 63

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 560 mm
Z-AXIS Movement: 560 mm
AXIS 1 Movement: 360 °

Table

Outer length: 400 MM
Outer width: 500 MM
TSlots size: x 14H12 mm
Table load: 350/600 kg

Additional Equipment

- Multiple tool magazine options
- Advanced tool handling and balancing features
- High-precision measurement system
- Efficient internal coolant supply (optional)

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque: 124 nm (s1), 191 nm (s6)
- - Speed max. : 25. 7 rpm
- - Pallet clamping force: 80,000 n
- - Tilting moment max. : 8000 nm
- - Tangential moment (clamped max. ): 6000 nm
- - Tangential moment (released max. ): 2600 nm
- - Number of pallets: 2
- - Guide slot (number x width): 1 x 14h7 mm
- - Precision movement: infinitely programmable feed speeds ensure precise control.
- - Tool handling versatility: various tool magazine configurations cater to extensive tooling needs.
Qualitative Machine Benefits:
- - Tool balancing: meets din iso 1940 standards for reduced vibration and increased precision.
- - Coolant system: optional internal coolant setup enhances tool performance and longevity.
- - Accurate measurement: high-resolution systems ensure precise machining results.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
