DMG CTX 510 eco

Photo Gallery

DMG - CTX 510 ecoPL-TUR-DMG-2009-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

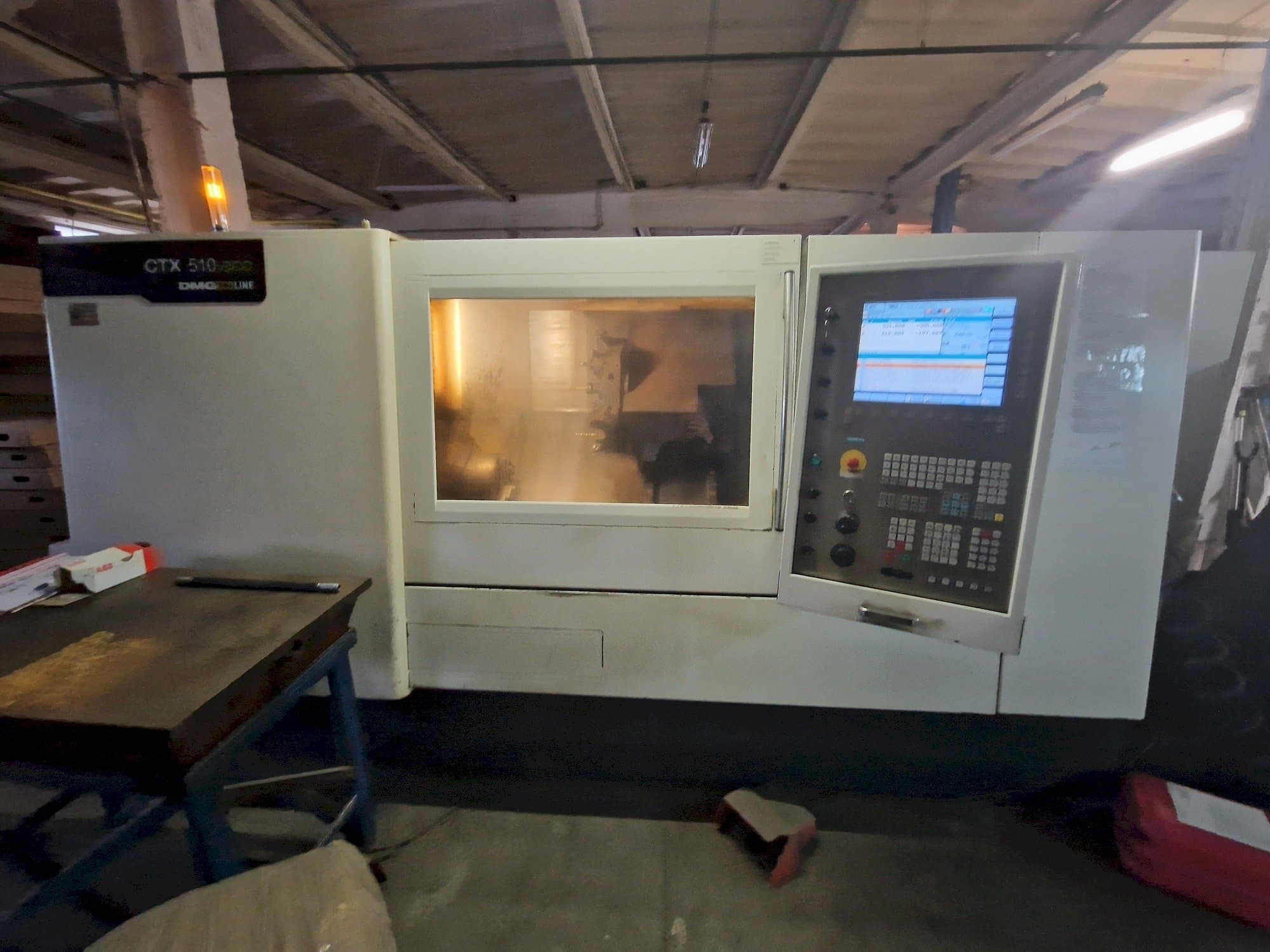

DMG CTX 510 eco lathe

This DMG CTX 510 eco lathe was built in Poland in the year 2009. It is equipped with a DMG panel with Siemens 810D powerline and ShopTurn control unit. The machine has a spindle speed of 3250 rpm.

Overview

brand: DMG
year: 2009
MODEL: CTX 510 eco
production hours: 0
application type: Turning
Location: Poland
machine type: Turn-Mill Centre

Technical Information - DMG CTX 510 eco

Control Unit

Model: Siemens 810D

Main drive

Spindle speed range: 3250 1/MIN

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Swing diameter: 680 mm
- - Max. Swing diameter above cross-guideway: 465 mm
- - Max. Turning diameter: 465 mm
- - Cross travel (x): 300 mm
- - Longitudinal travel (z): 1050 mm
- - Bar capacity: 76 mm
- - Spindle diameter in the front bearing: 140 mm
- - Chucks: 250 mm
- - Power output (40% / 100% dc): 33(2) / 22(2) kw (ac)
- - Max. Torque (40% / 100% dc): 630(2) / 420(2) nm
Qualitative Machine Benefits:
- - Number of tool stations: 12
- - Driven tool stations: 6 shaft diameter (according to din 69880): 40 mm
- - Power output (40% dc) at 4,000 rpm: 8. 4(2) kw
- - Max. Torque (40% dc): 20(2) nm
- - Max. Rotational speed: 4,000 rpm
- - Tailstock
- - Machine weight with a chip conveyor: 8100 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
