➤ Used DMG MORI CLX 450 TC For Sale | gindumac.com

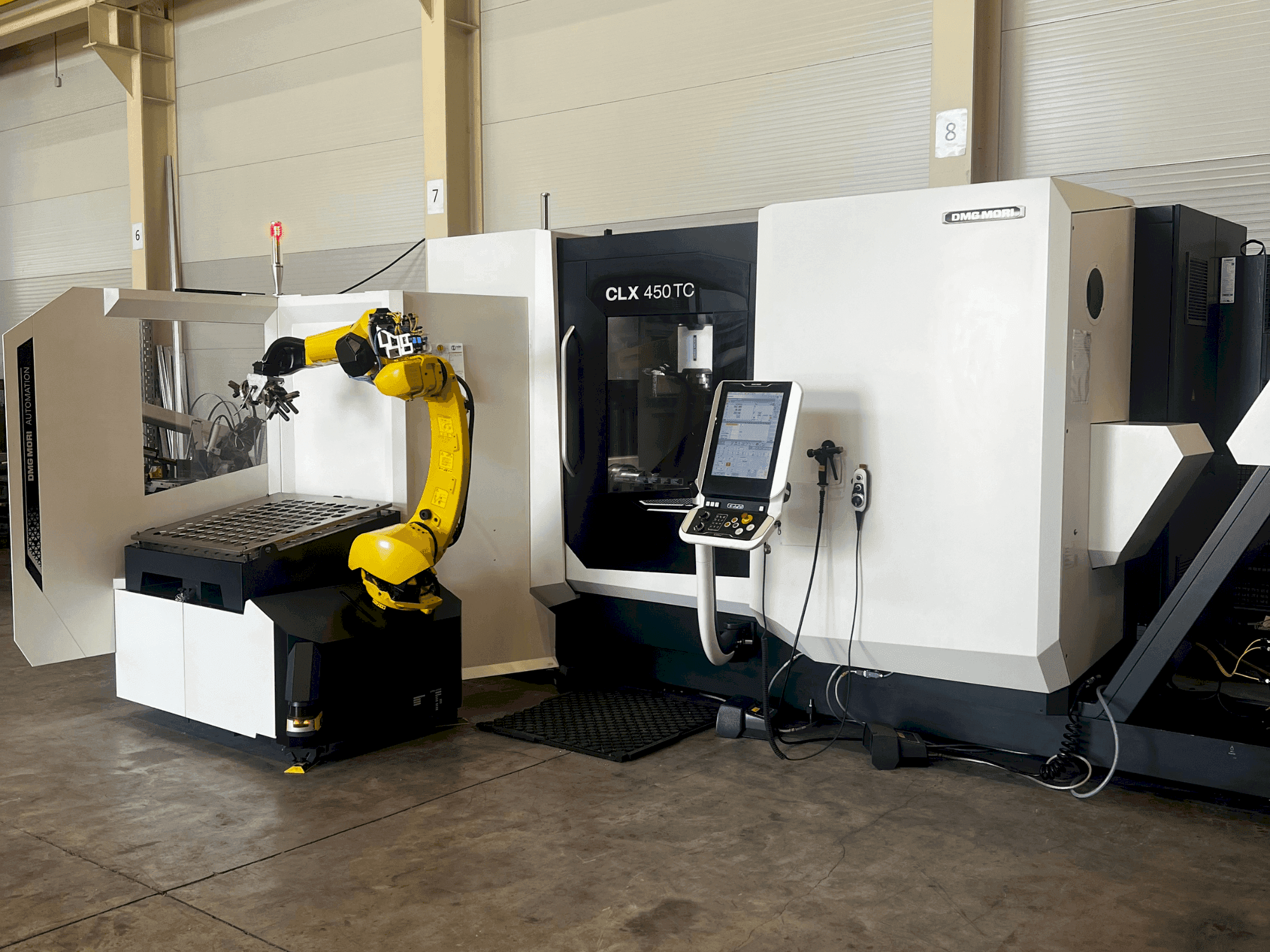

This 5-axis DMG MORI CLX 450 TC was manufactured in 2024. It features a universal turning/milling center with a main spindle speed of up to 5000 rpm and a milling spindle speed of up to 12000 rpm. The machine includes a B-axis of ±120°, Y-axis travel of ±100 mm, and a 30-fold chain magazine. It's equipped with Siemens 840D sl control for precision. Consider the opportunity to buy this DMG MORI CLX 450 TC turn-mill centre. Contact us for more information.

Overview

brand: DMG MORI
year: 2024
MODEL: CLX 450 TC
production hours: 82
application type: Turning
Location: Hungary
machine type: Turn-Mill Centre

Technical Information - DMG MORI CLX 450 TC

General Data

Measurements width: 2710 mm
Measurements depth: 3900 mm
Measurements height: 2470 mm
Machine weight: 10000 kg

Main drive

Spindle speed range: 5000 1/MIN
Spindle motor power: 14/17 kW
Number of axis: 5

Additional Equipment

- Dynamic two-pressure clamping for the main and counter spindle
- Tailstock function for the counter spindle with foot switch

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Torque: 275/345 nm
- - Hollow clamping device: Ø67 mm
- - B-axis: ±120°
- - Y-axis: ±100 mm
- - 30-fold chain magazine
- - Tailstock: hydraulically operated with foot control pedal
- - Document no. : 4224449

Extra information

- Additional Information Power: 11 kVA Max Input Current: 16 A Short-Circuit Current: 1.25 kA Max Voltage: 440 V ±10% Control Voltage: 230 V Signal Voltage: 24 V Tools Turning-/milling spindle Drive power: 8.8/10.5 kW Torque: 73/90 Nm Speed range: 0-12000 rpm Reception: HSK-A 63 DIN 69893

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
