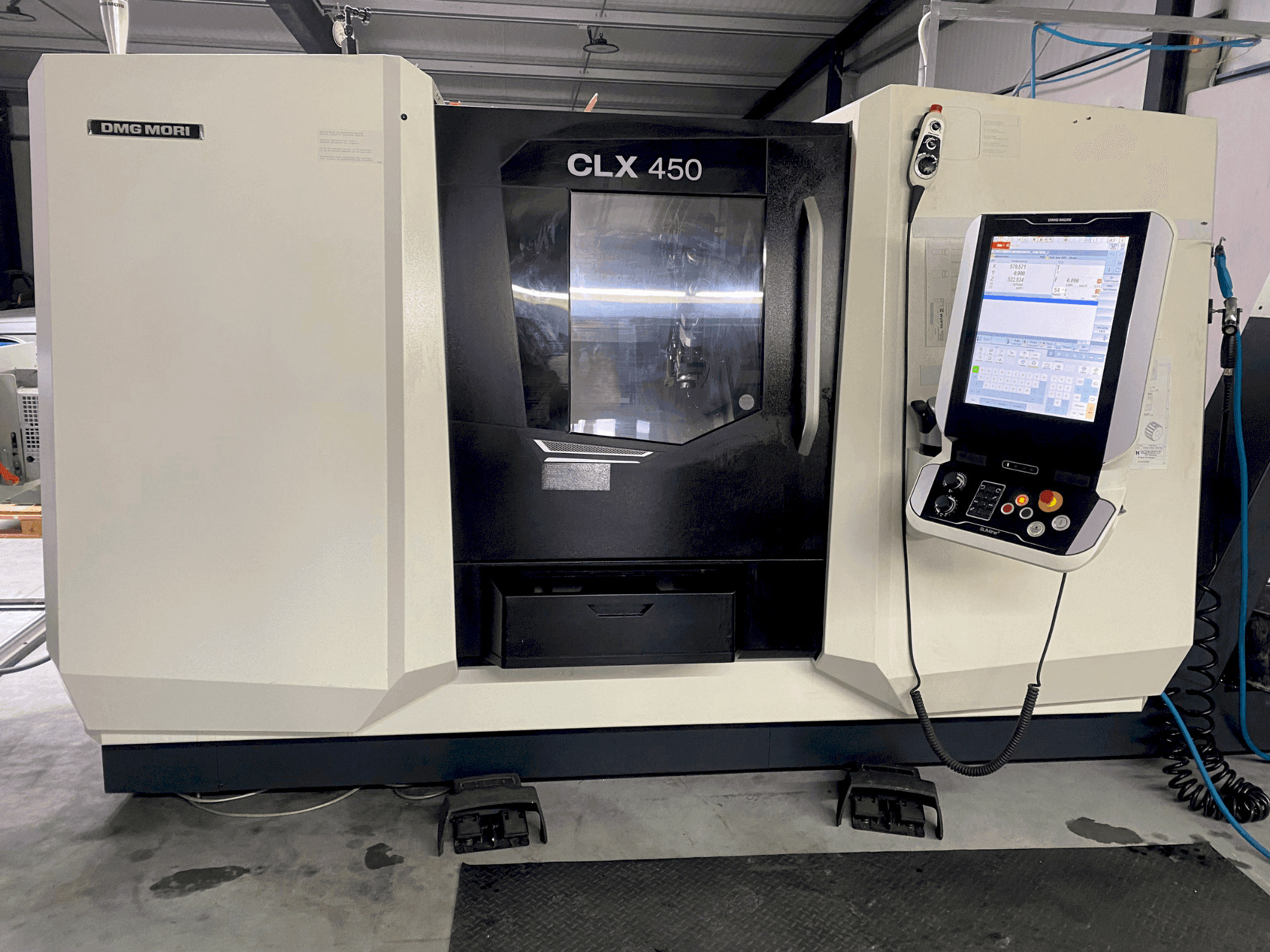

DMG MORI - CLX 450 V6DE-TUR-DMG-2019-00002

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Main spindle: a2-8" with ac motor, chuck flushing for the main spindle, highly dynamic spindle drive with 25. 5 kw, 426 nm (at 40% ed) and 4000 rpm, 3200 spindle hours
  • - Counter spindle a2-6", designed as motor spindle ism 52 14 kw(at 40% ed) and 5000 rpm, external chuck flushing for the counter spindle, tailstock function, adjustable thrust force during cycle: 1. 5-6. 0 kn
  • - Optional y-axis +/- 60mm and counter spindle for excellent turning / milling, chip tray
  • - Hollow clamping device, bar passage diameter 80mm as standard and turret with 12 tool stations vdi40 + 6 bt stations, workpiece pick-up device for parts up to d80x200mm and a max. Weight of 4kg
  • - 12 bar / coolant system: high-pressure pump 12 bar, double cartridge filter for cooling lubricant, coolant spray gun 5 bar, mechanical oil mist separator type afs 600
  • - Manual tool measuring device in the work area, make marposs
  • - Alternating speed technology cycle
  • - Digitalization products dmg mori connectivity: digital manufacturing package iotconnector, machine data connector (mdc), netservice please note: bar feeder included, optional: jaws, hainbuch clamping system main spindle, driven tools, tool holders
  • - Spindle speed: counter spindle: 5. 000 rpm, main spindle 4. 000 rpm
• Qualitative Machine Benefits:
  • - 3d control technology with dmg mori multi-touch 19" control panel for siemens 840d and shop turn or fanuc i-series cnc with 19" screen and manual guide
