DMG MORI CLX450

Photo Gallery

DMG - MORI CLX450PL-TUR-DMG-2017-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
DMG MORI CLX450 Turning

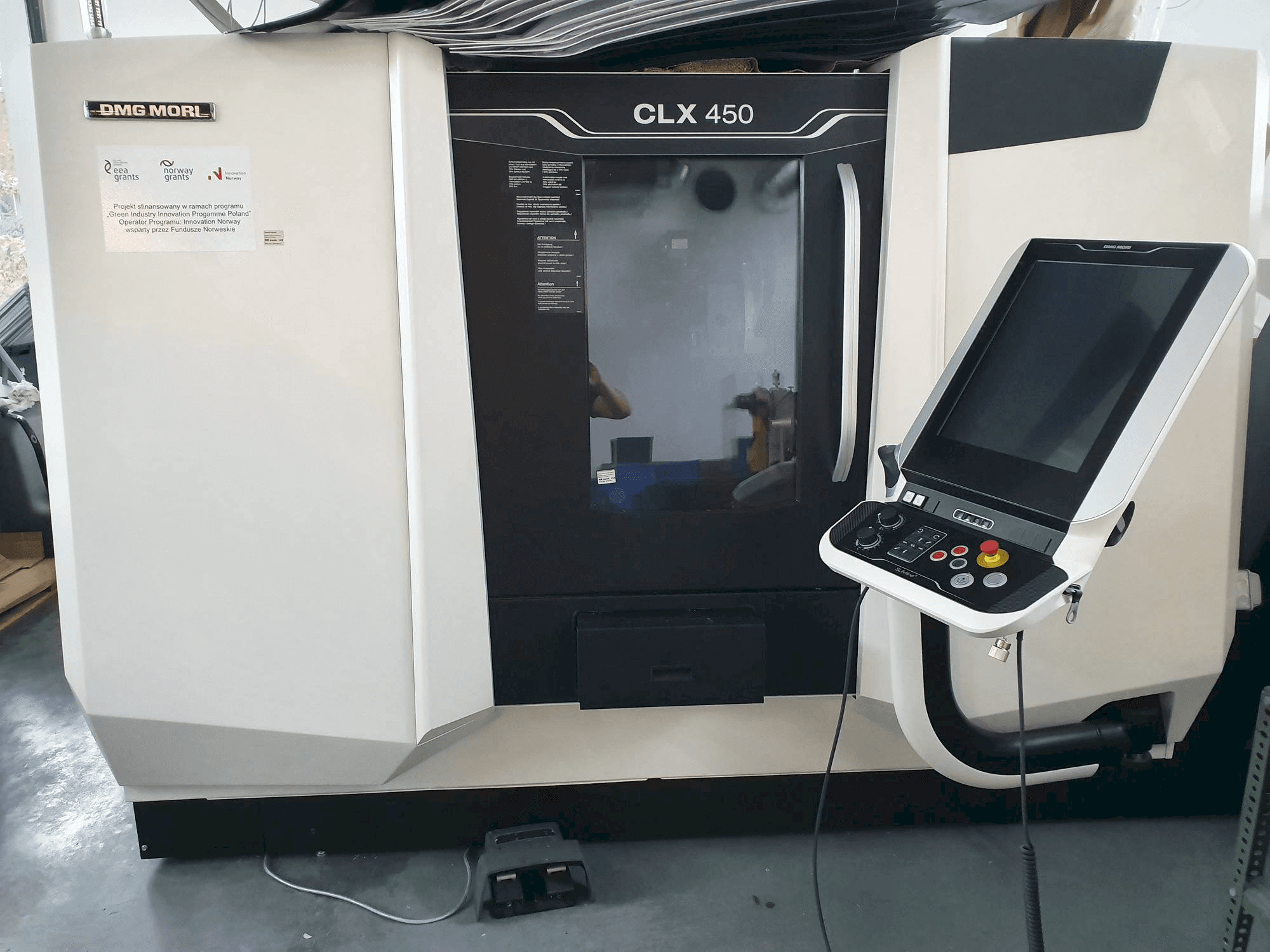

This DMG MORI CLX450 Lathe machine was manufactured in the year 2017. The machine has a total of 100 working hours (it was used for prototypes). This 4 axis machine is capable of working with a spindle speed up to 4000 rpm. It includes a VDI40 tool holder and a chip tray.

Overview

brand: DMG
year: 2017
MODEL: MORI CLX450
production hours: 100
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine

Technical Information - DMG MORI CLX450

General Data

Measurements width: 4180 mm
Measurements depth: 2660 mm
Measurements height: 1932 mm
Machine weight: 63000 kg

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 0 - 4000 rpm
Spindle bore: 91 mm
Number of axis: 4

Movement

X-AXIS Movement: 267.5 mm
X-AXIS Rapid traverse: 30 m/min
Y-AXIS Rapid traverse: 25.5 m/min
Z-AXIS Movement: 600 mm
Z-AXIS Rapid traverse: 30 m/min

Media

Main electronic connection: 400V 50/60 Hz
Power consumption: 31,5 kVA

Additional Information

Additional equipment

Tool holders VDI40
Chip tray

Machine Benefits

Qualitative Machine Benefits

Chuck d254 mm
Driven tool speed: 4000 rpm
Like a brand new
Full documentation in polish, ready for tests.
Samchully mh-210

Technical Machine Benefits

Y axis: +/- 60 mm
Hydraulic tailstock: driven with m functions
Automatic tailstock travel: 500 mm
Max. Swing diameter: 700 mm
Max. Turning diameter: 315 mm
Max. Turning length in z axis: 550 mm
Max. Bar capacity diameter: 80 mm
Torque (100% dc): 283 nm
Spindle diameter in the front bearing: 130 mm
Mounting bracket: three-jaw hydraulic

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
