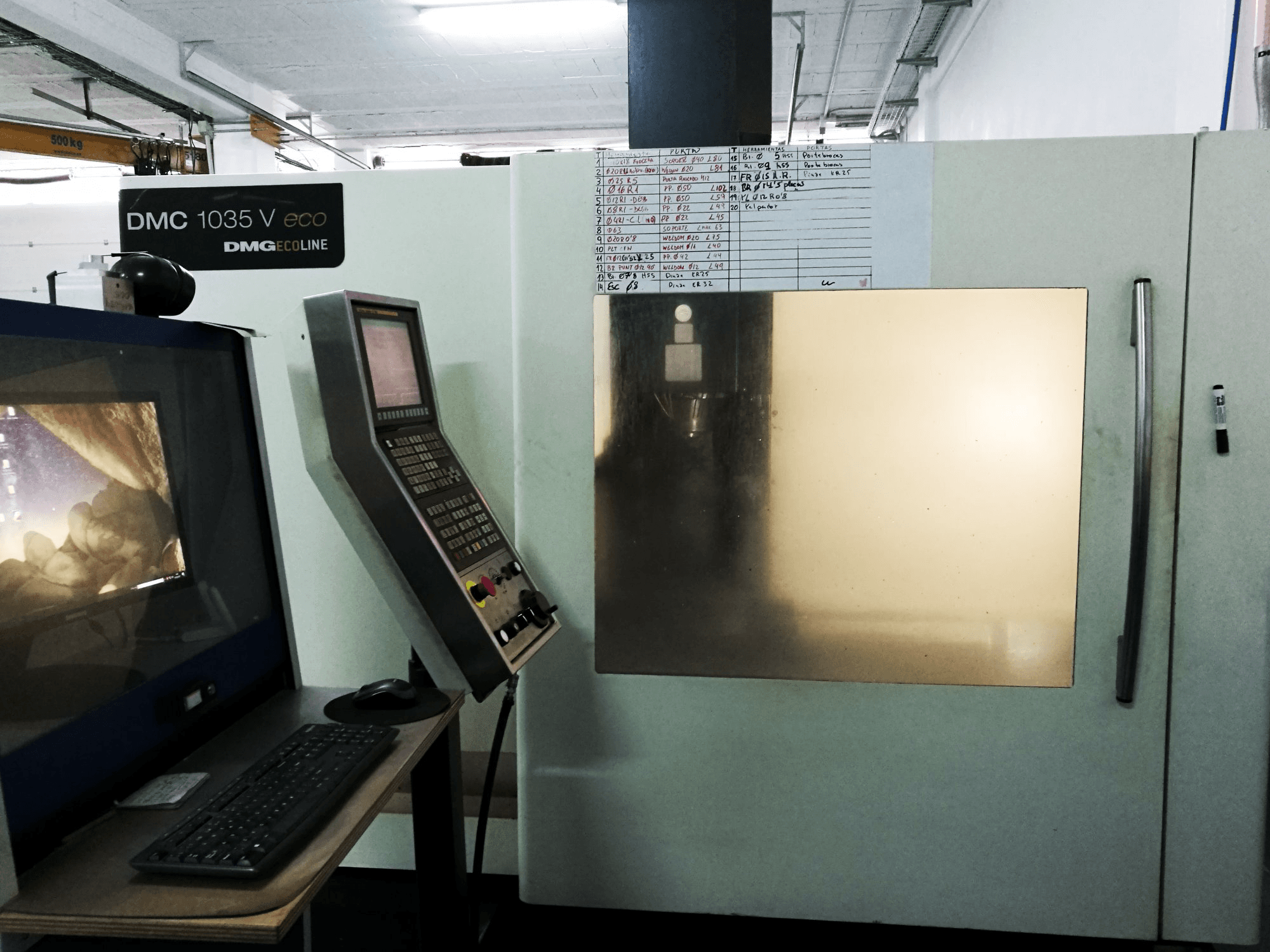

DMG MORI DMC 1035 V eco Machining Center

This DMG MORI DMC 1035 V eco Machining Center was manufactured in the year 2008, and has a production history of approximately 10000 working hours. This machine operates through a FANUC 0i-MC control unit and stands out because of its practicality and its ergonomic design for an easy fit in almost every workspace.

Overview

brand: DMG MORI
year: 2008
MODEL: DMC 1035 V eco
production hours: 10000
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DMG MORI DMC 1035 V eco

General Data

Measurements width: 2607 mm
Measurements depth: 2198 mm
Measurements height: 2650 mm
Machine weight: 3600 kg

Control Unit

Model: 0i-MC
Brand: FANUC

Main drive

Spindle speed range: 10000 1/min
Spindle motor power: 9 kW
Tool taper: SK 40

Movement

X-AXIS Movement: 1035 mm
X-AXIS Working Feed: 20000 mm/min
X-AXIS Feed Force: 5000 N
X-AXIS Rapid traverse: 30000 mm/min
Y-AXIS Movement: 550 mm
Y-AXIS Working Feed: 20000 mm/min
Y-AXIS Feed Force: 5000 N
Y-AXIS Rapid traverse: 30000 mm/min
Z-AXIS Movement: 550 mm
Z-AXIS Working Feed: 20000 mm/min
Z-AXIS Feed Force: 2000 N
Z-AXIS Rapid traverse: 30000 mm/min

Workpiece

Workpiece z: 720 mm
Workpiece weight: 600 kg

Table

Outer length: 1200 mm
Outer width: 600 mm
Number of tslots: 5
Distance between: 100 mm
Max distance between vertical spindle and table: 720 mm

Tools

Slots in storage: 20
Max weight: 6 kg
Max tool diameter: 30 mm
Max tool length: 300 mm

Media

Main electronic connection: 400 V
Power consumption: 17 kVA
Air pressure: 8 bar
Lubrication tank: 120 L
Chip conveyor: Yes
Cooling pressure: 3.7 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
