DMG MORI - DMC 1150 VPT-MIL-DMG-2016-00002

Name: DMG MORI DMC 1150 V
Brand: DMG MORI
SKU: PT-MIL-DMG-2016-00002
Price: 85000 EUR
Availability: InStock

85,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used DMG MORI DMC 1150 V For Sale | gindumac.com

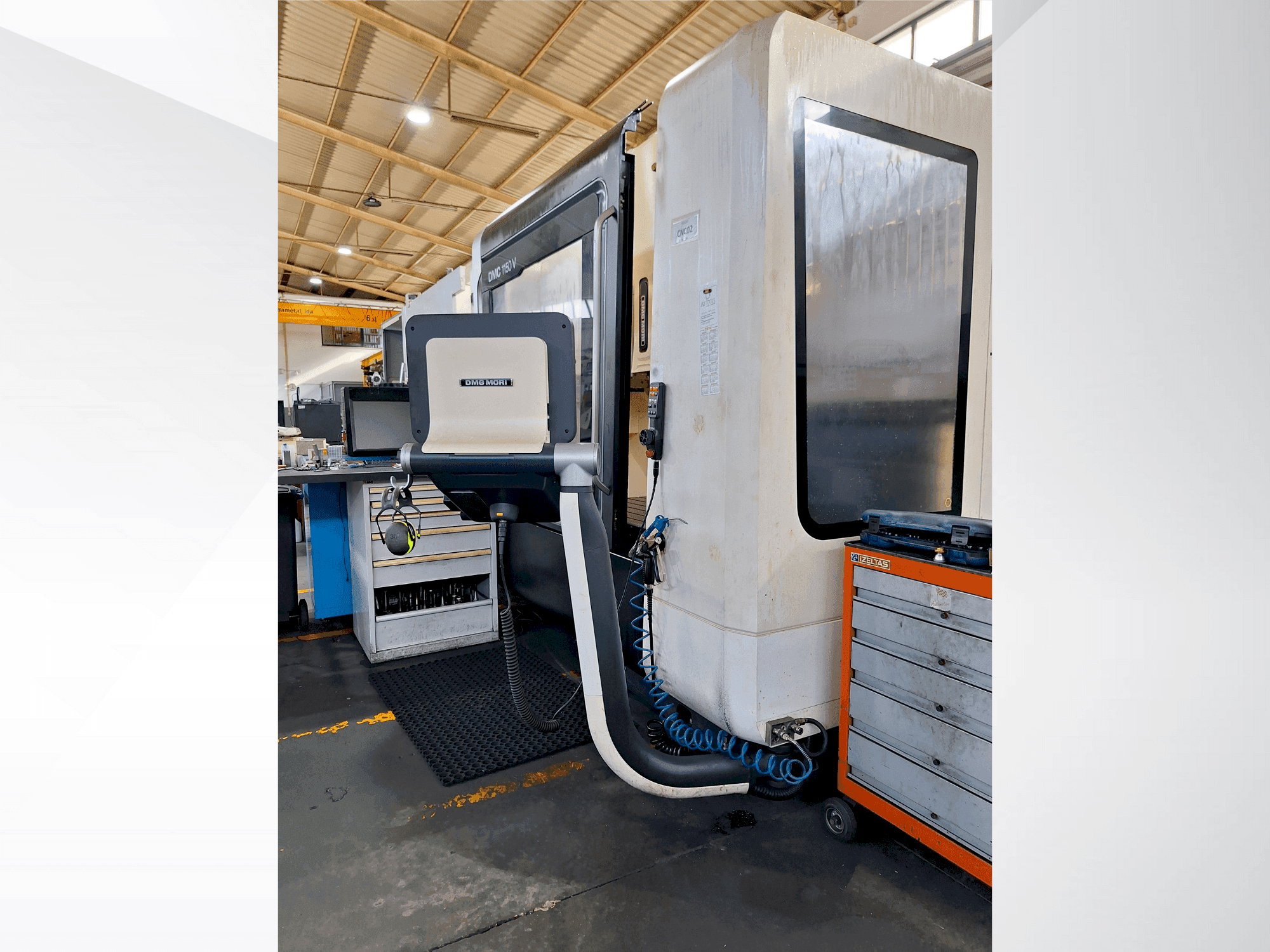

This 3-axis DMG MORI DMC 1150 V was manufactured in 2016. A robust vertical machining center featuring a 1150 mm X-axis, 700 mm Y-axis, and 550 mm Z-axis. It boasts a rapid traverse of 42 m/min and a speed range up to 14,000 rpm. Equipped with a Heidenhain TNC 640 control, 30-position SK40 tool magazine, and a chip extractor system. If you are looking to get high-quality milling capabilities consider the DMG MORI DMC 1150 V machine we have for sale. Contact us for more information.

Overview

brand: DMG MORI
year: 2016
MODEL: DMC 1150 V
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - DMG MORI DMC 1150 V

Control Unit

Brand: HEIDENHAIN
Model: TNC 640

Main drive

Spindle speed range: 20 - 14000 1/MIN
Tool taper: ISO40/SK40 DIN69871
Number of axis: 3

Movement

X-AXIS Movement: 1150 mm
X-AXIS Rapid traverse: 42 m/min
Y-AXIS Movement: 700 mm
Y-AXIS Rapid traverse: 42 m/min
Z-AXIS Movement: 550 mm
Z-AXIS Rapid traverse: 42 m/min

Table

Outer length: 1460 mm
Outer width: 750 mm

Additional Information

Additional equipment

Infrared touch probe Make: Renishaw PP 60 optical (OMP 60)
Tool length and diameter measurement
Automatic cleaning of tool holders using an air jet
Tool cone calibration equipment
Safety package for power supply failure
Overvoltage limiter
Undervoltage monitoring with rapid braking activation
Electronic handwheel
Chip extractor (chip scraper)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
