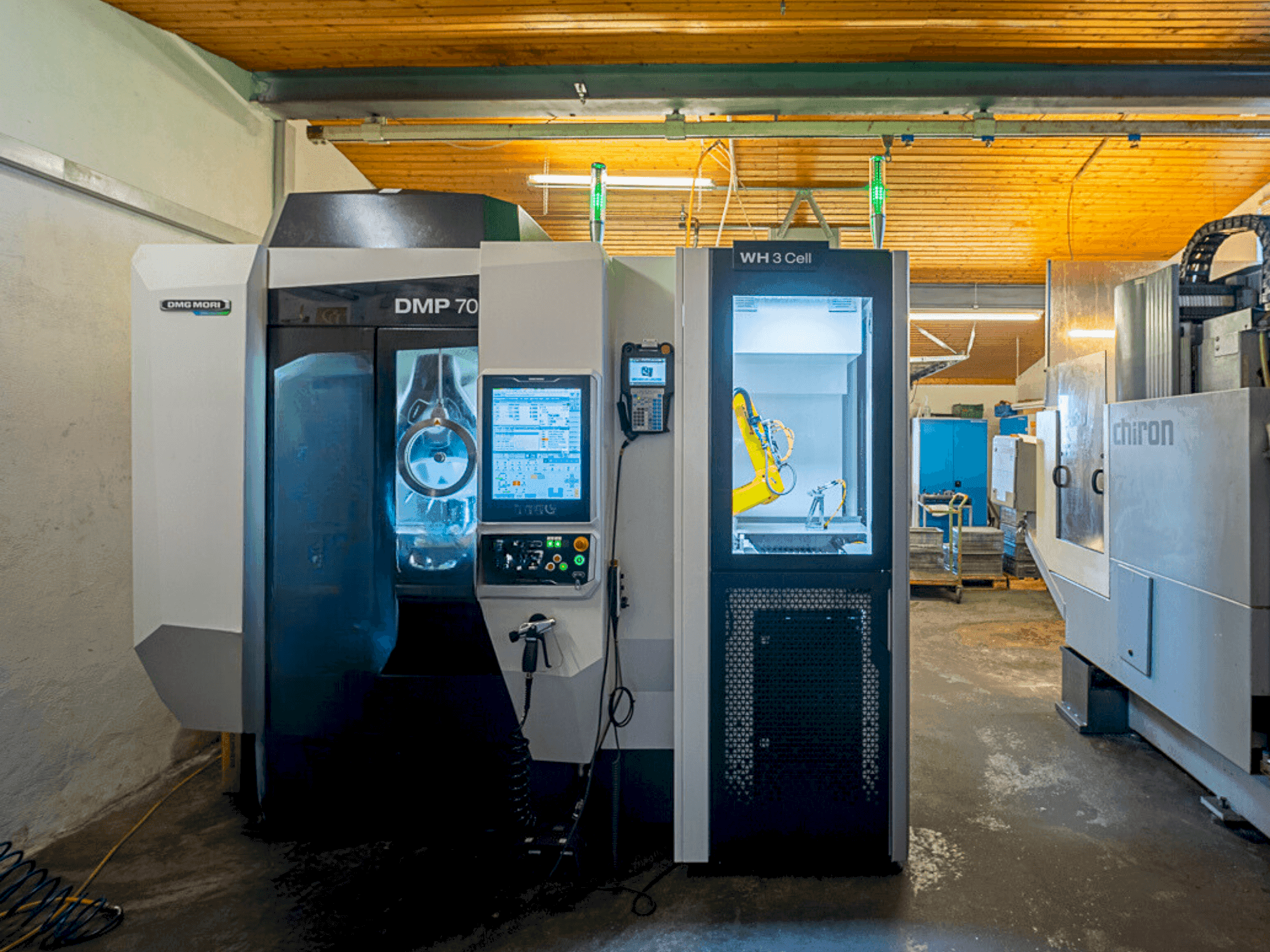

Front view of DMG MORI DMP 70 with WH3 machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DMG MORI DMP 70 with WH3

Photo Gallery

DMG MORI - DMP 70 with WH3DE-MIL-DMG-2021-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Used Vertical Machining centre DMG MORI DMP 70 with WH3 (2021) for sale | GINDUMAC.COM

This DMG MORI DMP 70 with WH3 Vertical Machining centre was manufactured in the year 2021. It is equipped with a DMG MORI control unit. The machine disposes of a spindle with a speed range of 24000 rpm, a internal cooling system and a chip conveyor. Contact us anytime for further questions.

Overview

brand: DMG MORI
year: 2021
MODEL: DMP 70 with WH3
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - DMG MORI DMP 70 with WH3

Control Unit

Model: 840d Solutionline
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 20 to 24000 rpm 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 700 MM
Y-AXIS Movement: 420 MM
Z-AXIS Movement: 380 MM

Table

Outer length: 840 mm
Outer width: 420 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Equipment

- Tool holder ISO7388-2 J30
- Tool changer 25 places
- Additional tank 600l
- Oil and emulsion mist separator

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Internal cooling system with 40 bar.
- - Paper belt filter.
- - Ikz 40; 40 bar/ 23 l/min.
- - Torque max. 78 nm.
- - Operating mode 4.
- - Blast air through spindle center.
- - Electronic handwheel.
- - Special 3-fold gripper unit type schunk pgn plus p64-1.
- - Workpiece loading and unloading system qh 3 cell with 6-axis industrial robot.
- - Blum efficiency package: tc52 infrared touch probe

Extra information

- Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
