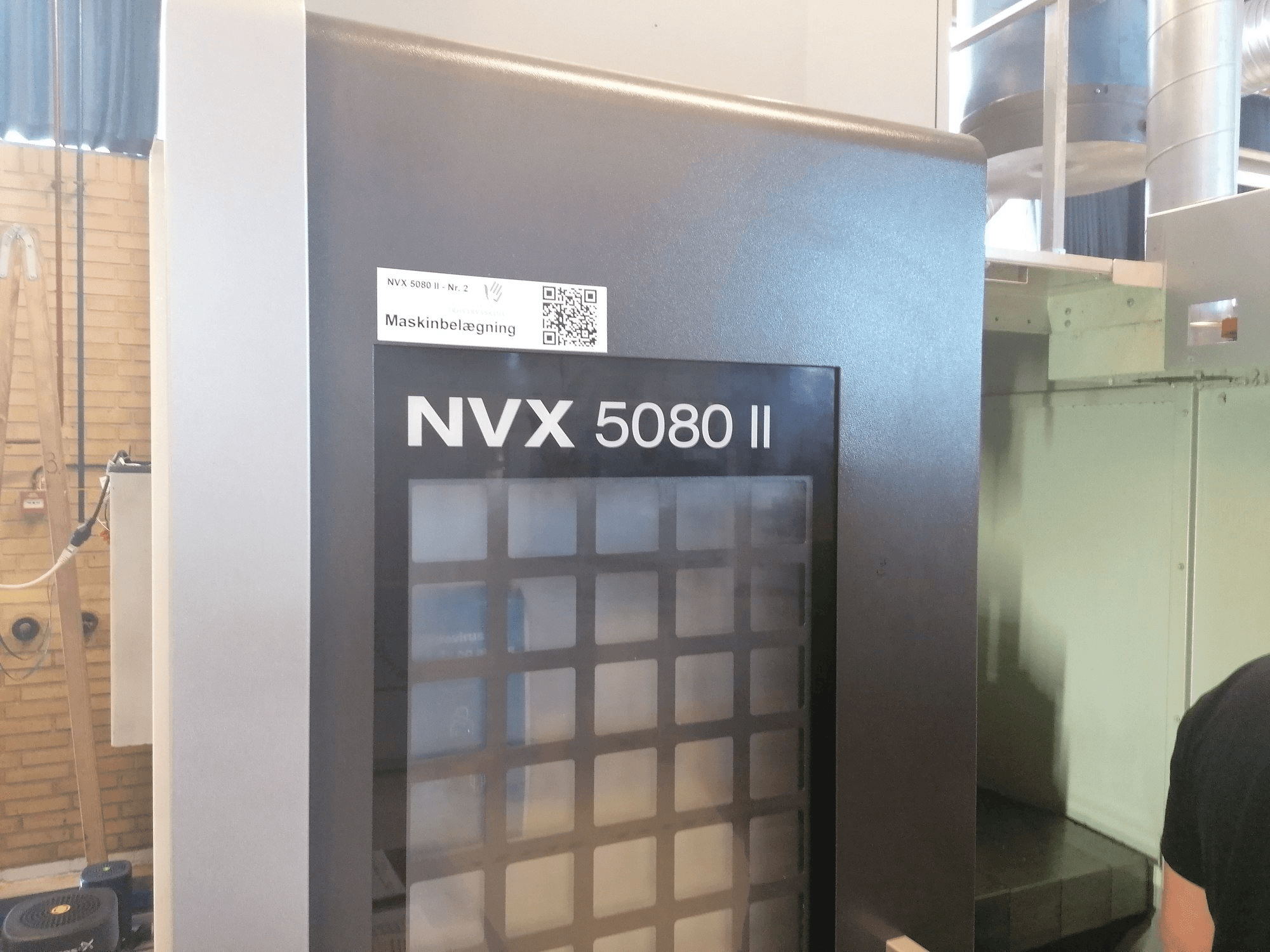

DMG MORI NVX 5080II Vertical Machining center

This DMG MORI NVX 5080II Vertical Machining center was manufactured in the year 2013 in Japan and has 1326 production hours, of which 1018 are spindle hours. It is equipped with a MAPPS IV control unit and has 3+2 axis. The machine has a spindle speed of 20000 rpm.

Overview

brand: DMG MORI
year: 2013
MODEL: NVX 5080II
production hours: 1326
application type: Milling
Location: Denmark
machine type: Vertical Machining Centre
availability: Sold

Technical Information - DMG MORI NVX 5080II

Main drive

Spindle speed range: 20000 1/MIN
Spindle motor power: 15/ 11 kW
Tool taper: BT40
Number of axis: 3+2

Movement

X-AXIS Movement: 800 mm
Y-AXIS Movement: 530 mm
Z-AXIS Movement: 510 mm

Table

Outer length: 1100 mm
Outer width: 600 mm
Table load: 1000 kg

Tools

Slots in storage: 30
Type of tool holder: BT40 DIN40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Slideways are used for all axes
- - Available with three x-axis strokes (600/800/1,050 mm)
- - 23% higher rigidity achieved by the use of a spindle with a large-diameter bearing
- - Coolant circulation inside the castings (option)
- - The ddrt rotary table is available as an option
- - Approx. 21% reduction in standby power consumption3
- - High column 200 mm
- - The distance from the gauge line to the table surface: 860 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
