DOOSAN - HM 6300IT-MIL-DOO-2009-00001

Name: DOOSAN HM 6300
Brand: DOOSAN
SKU: IT-MIL-DOO-2009-00001
Price: 88000 EUR
Availability: InStock

88,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

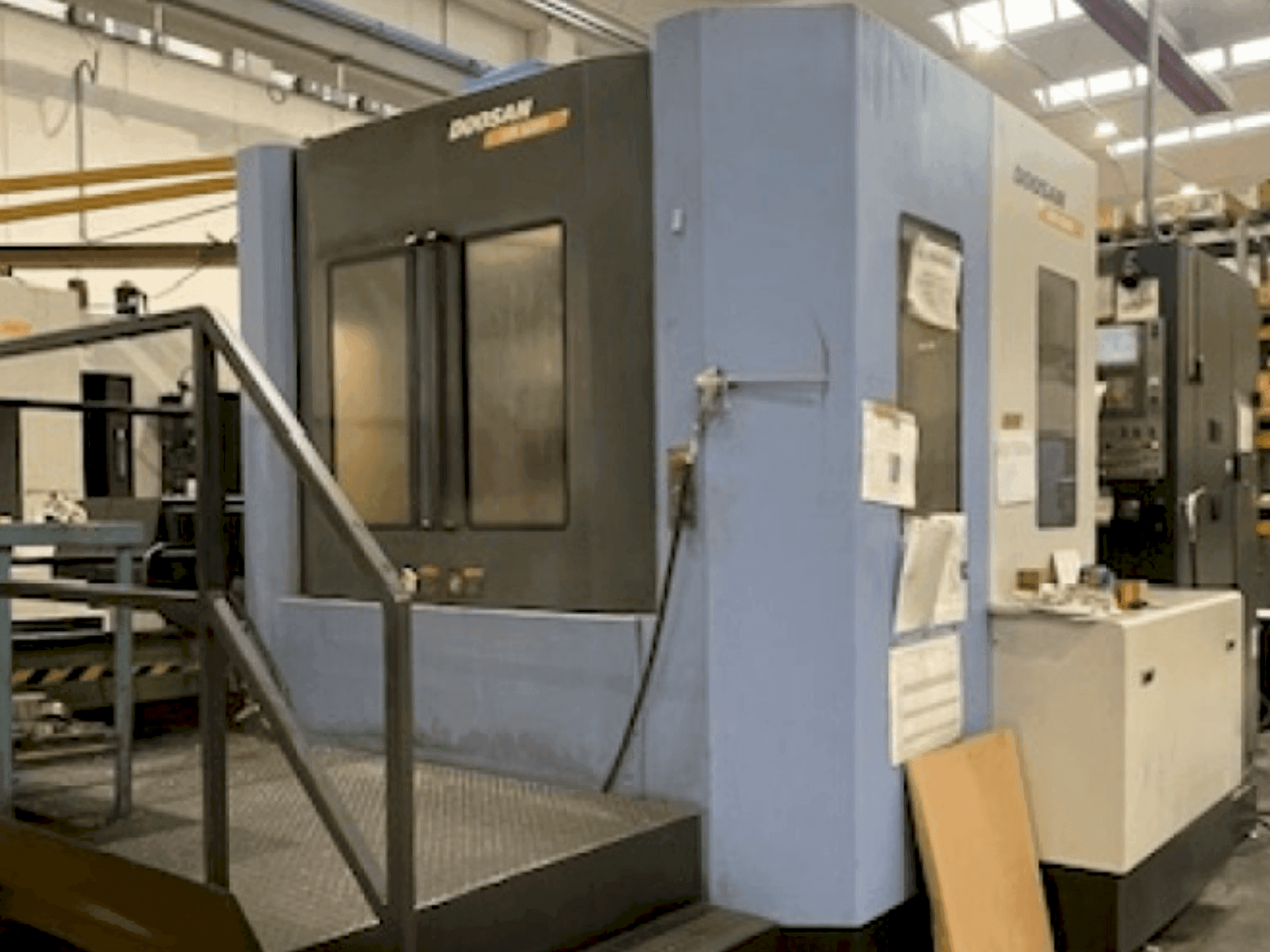

➤ Used DOOSAN HM 6300 - 2009 - Horizontal machine centre

The DOOSAN HM 6300 is a 4-axis horizontal machining centre from 2009 with a CNC FANUC 31i-Mod.A control unit. It offers expansive axis movement: 1000 mm on X, 800 mm on Y, and 850 mm on Z, with rapid 48 m/min travel. The two 630 x 630 mm pallets, with a 1° indexing and 180° rotary change, support 1,200 kg each. The spindle, powered by a 30 kW motor, reaches 6000 rpm, and the 60-position tool chain accommodates various tool sizes. Accessories include a chip conveyor, Renishaw predisposition, and a high-pressure coolant system. Contact us for more details.

Overview

brand: DOOSAN
year: 2009
MODEL: HM 6300
production hours: 0
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN HM 6300

General Data

Machine weight: 21000 kg

Control Unit

Model: 31i–Mod.A
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 600 1/MIN
Spindle motor power: 30 Kw
Tool taper: ISO 50 Din 69871
Number of axis: 4

Movement

X-AXIS Movement: 1000 mm
X-AXIS Rapid traverse: 48 m/min
Y-AXIS Movement: 800 mm
Y-AXIS Rapid traverse: 48 m/min
Z-AXIS Movement: 850 mm
Z-AXIS Rapid traverse: 48 m/min

Tools

Number of index: 60

Media

Chip conveyor: Yes

Additional Information

Additional equipment

2 Pallets (dimensions 630 x 630 mm, indexing: 1°, change type: 180° rotary, weight allowed on the pallet: 1,200 kg)
Renishaw predisposition
Remote electronic handwheel

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
