➤ Used DOOSAN LYNX 2100 LSYB Lathe For sale | gindumac.com

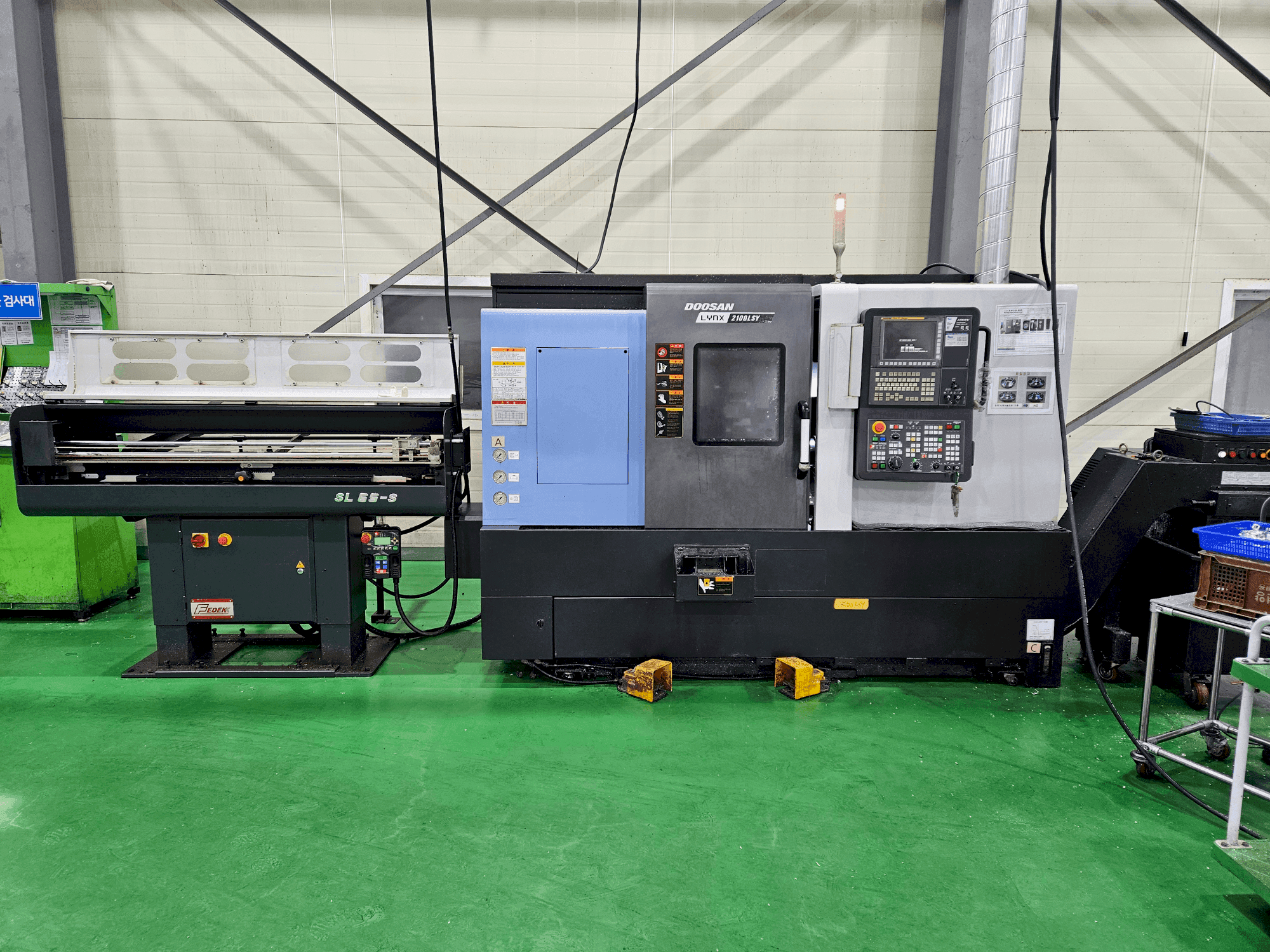

This DOOSAN LYNX 2100 LSYB lathe was manufactured in 2018. It features a Fanuc i control system, an 8" Samchully MH-208 main chuck, and a 5" Samchully HS-05 sub chuck. The main spindle operates at 4500 RPM, while the sub spindle reaches 6000 RPM. Equipped with a 24 station turret and BMT45P, it supports a maximum diameter of 300 mm and lengths up to 510 mm. For more information about this lathe, please reach out to us.

Overview

brand: DOOSAN
year: 2018
MODEL: LYNX 2100 LSYB
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Immediately

Technical Information - DOOSAN LYNX 2100 LSYB

Main drive

Number of spindles: 2
Spindle speed range: 4500 rpm 1/MIN
Spindle bore: 76 mm

Movement

X-AXIS Movement: 205 mm
Y-AXIS Movement: 105 mm
Z-AXIS Movement: 560 mm

Tools

Number of index: 4 Live tools (2 Straight, 2 Angular)

Media

Chip conveyor: Yes

Additional Equipment

- Turret: 24 ST BMT45P
- Tool setter
- Main chuck: 8" Samchully MH-208
- Sub chuck: 5" Samchully HS-05
- Part catcher
- Part box
- Bucket
- Bar-feeder (Brand: LNS(FEDEK), Model: SL-65S)
- Tower lamp
- English manual books

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Sub spindle rpm: 6000
- - Sub spindle thru dia: 43 mm
- - Bed of swing: 600 mm
- - Max. Dia: 300 mm
- - Max. Length: 510 mm
- - High spindle speeds, dual chuck system for complex operations, and precision control with c-axis.
- - 4 live tools (2 straight, 2 angular)
Qualitative Machine Benefits:
- - Efficient chip management, enhanced productivity with live tooling and bar feeder, reliable operation with comprehensive safety and operational features.

Extra information

- Machine still under power.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
