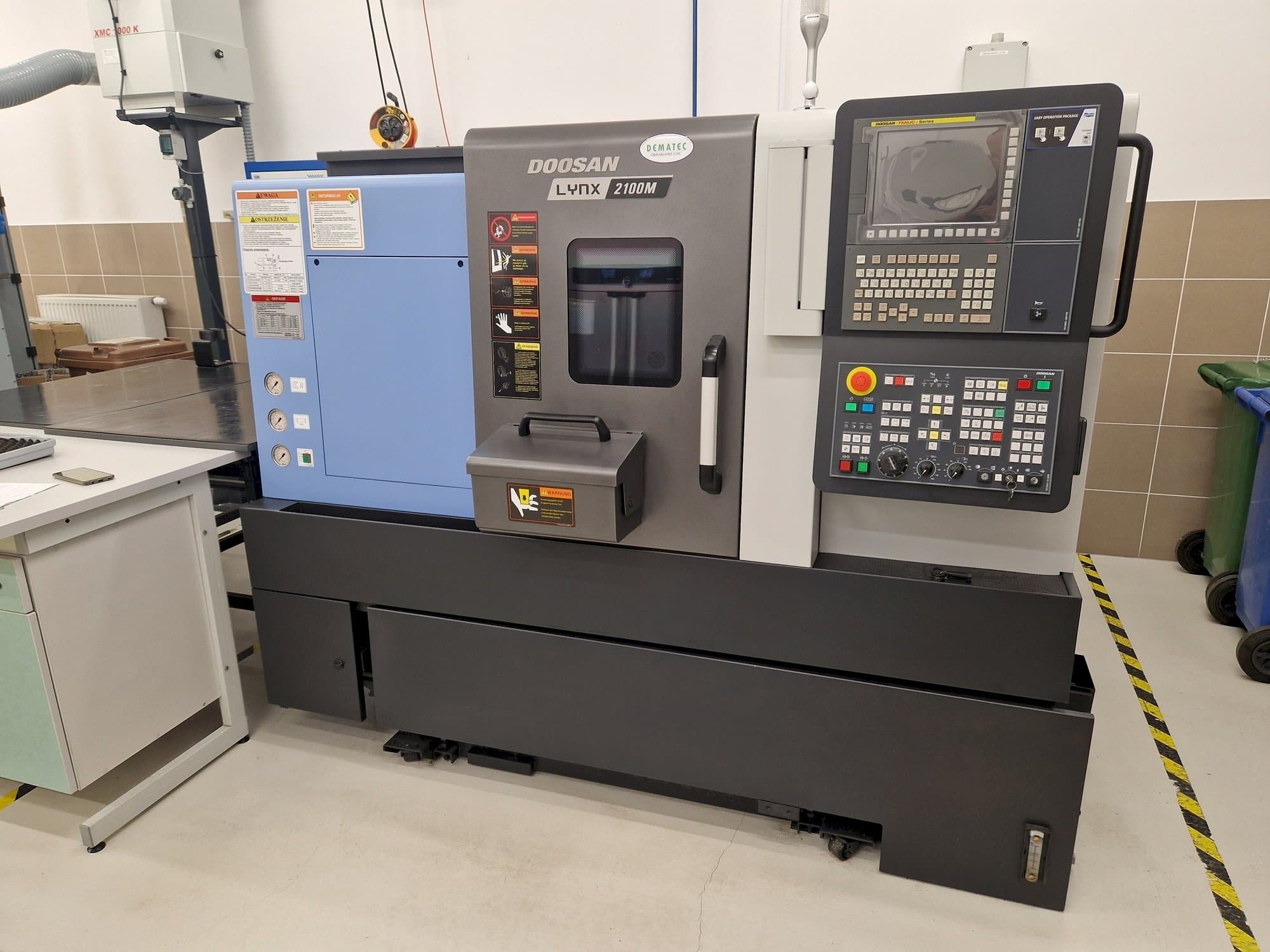

Front view of Doosan Lynx 2100ME machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Lynx 2100MA

Photo Gallery

DOOSAN - Lynx 2100MAPL-TUR-DOO-2017-00003

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Lynx 2100MA Lathe

This Doosan Lynx 2100MA Lathe was built in the year 2017 and has 1188 power hours, of which 122 are production hours and 66 are spindle hours. It is equipped with a Fanuc Series control unit. The machine has a spindle speed of 6000 rpm and includes 12 pcs tool holders.

Overview

brand: DOOSAN
year: 2017
MODEL: Lynx 2100MA
production hours: 1188
application type: Turning
Location: Poland
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - DOOSAN Lynx 2100MA

General Data

Measurements width: 2320 mm
Measurements depth: 1595 mm
Measurements height: 1693 mm
Machine weight: 2750 kg

Control Unit

Model: 0–iTF with 10.4’’ LCD
Brand: FANUC

Main drive

Spindle speed range: 6000 rpm 1/MIN

Movement

X-AXIS Movement: 205 mm
X-AXIS Rapid traverse: 30 m/min
Z-AXIS Movement: 340 mm
Z-AXIS Rapid traverse: 36 m/min
C-AXIS Movement: 360' (0.001)
C-AXIS Rapid traverse: 200 rpm

Tools

Number of stations: 12 pcs (4 rotary, 8 fixed)
Type of tool holder: BMT 45 P

Media

Main electronic connection: 380V / 50 Hz
Power consumption: 25.94 kVA

Additional Information

Additional equipment

12 pcs tool holders
Turret configuration: 4 pcs live tools, 8 pcs fixed tools
EZ Guide: graphic interface for programing, Part catcher
Rediness to work with a bar feeder and chip conveyor
Pomp: 7 bar
Programmable tailstock
Box for chips
Tools monitoring system
Some accesories and tooling
Docs: PL/EN

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
