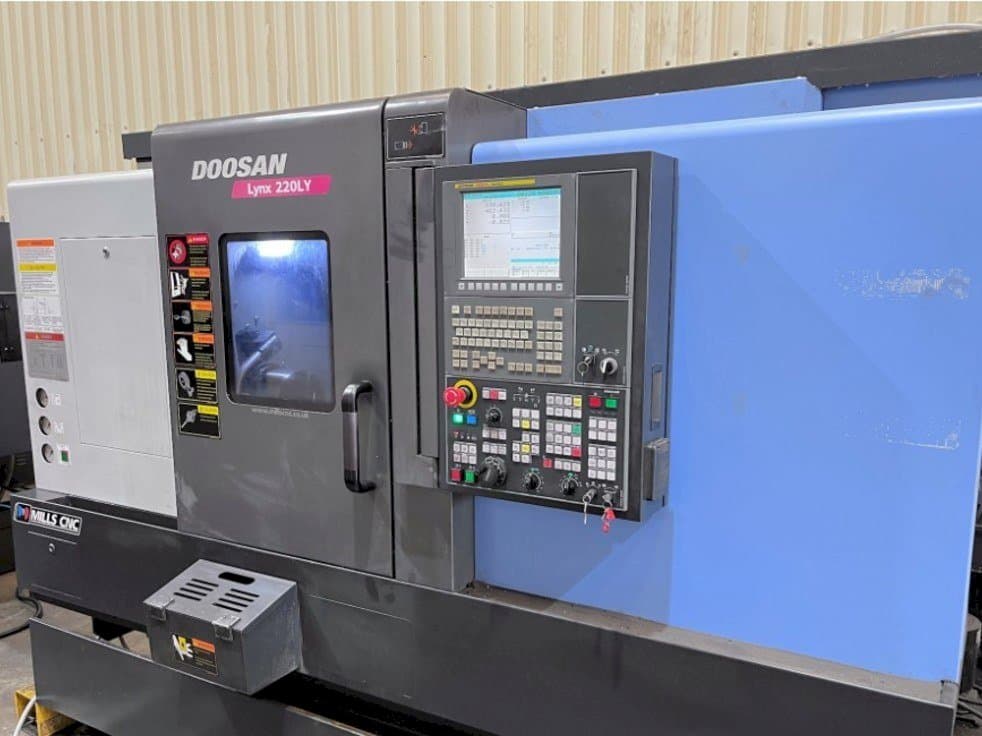

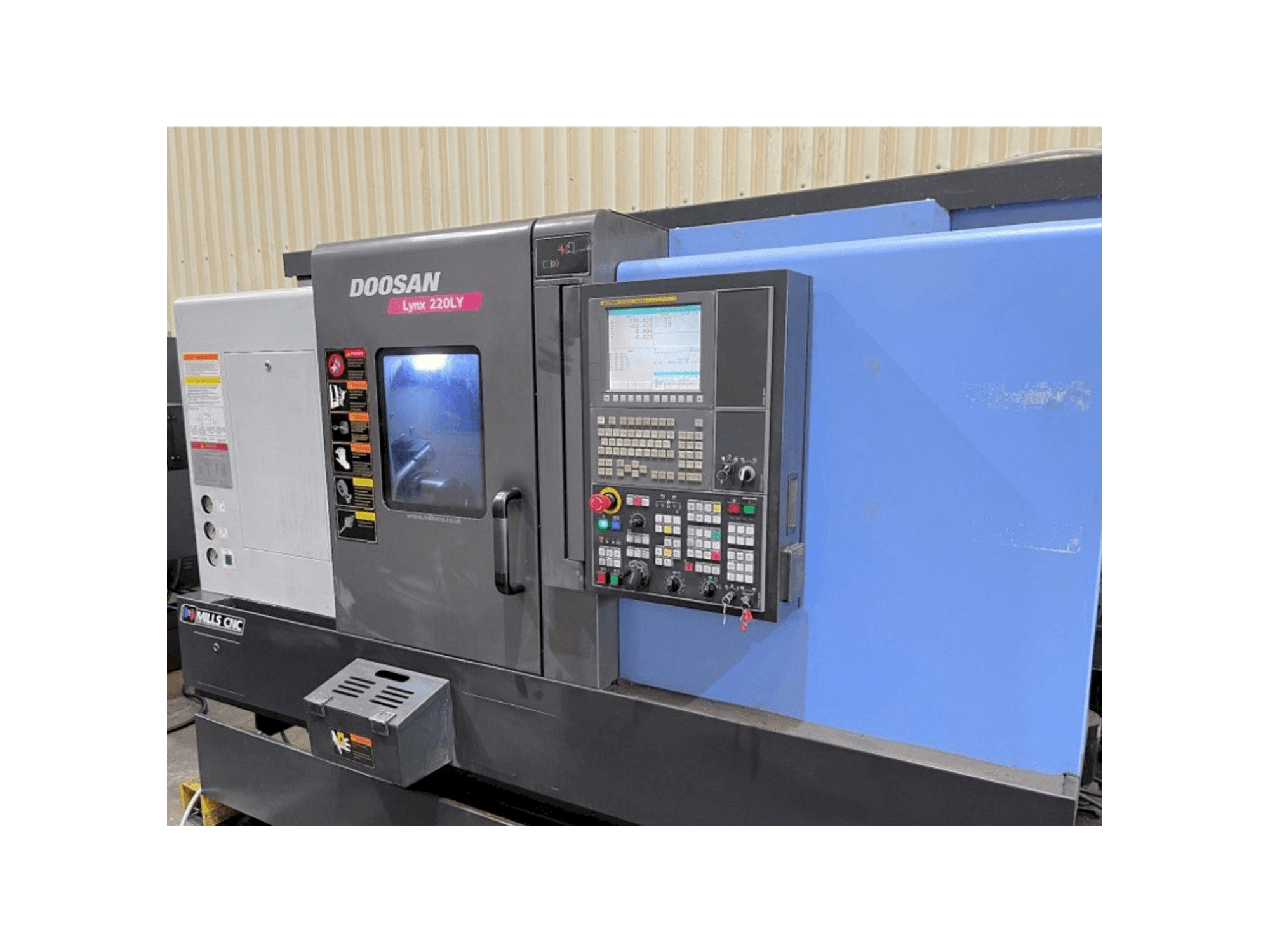

Front view of Doosan Lynx 220LYC machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Lynx 220LYC

Photo Gallery

DOOSAN - Lynx 220LYCGB-TUR-DOO-2014-00004

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Doosan Lynx 220LYC Lathe

This Doosan Lynx 220LYC Lathe was made in 2014 in South Korea and has 20526 production hours, of which 3613 are cutting hours. It is equipped with a Fanuc i-Series control unit and has 4 axis. The machine has a spindle speed of 4500 rpm, is in very good condition and well maintained.

Overview

brand: DOOSAN
year: 2014
MODEL: Lynx 220LYC
production hours: 20526
application type: Turning
Location: United Kingdom
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Lynx 220LYC

General Data

Measurements width: 3926 mm
Measurements depth: 1710 mm
Measurements height: 1920 mm
Machine weight: 4150 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 205 mm
Y-AXIS Movement: +/- 52 mm
Z-AXIS Movement: 560 mm

Turret

Number of turrets: 1

Tools

Slots in storage: 24
Type of tool holder: BMT 45P

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Swing over bed 600 mm, over carriage 400 mm
- - Maximum machining diameter 300 mm
- - Maximum machining length 510 mm
- - Bar capacity 65 mm
- - Main spindle motor power 15/11 kw
- - Turret milling power 3. 7 kw; speed 6000 rpm
- - 0. 001 degree c axis
- - 3 jaw chuck 210 mm, collet chuck, parts catcher, manuals, tooling, usb port
- - "turret positions 24 station (1/2 index option - positions 1-12 driven))"
- - Tailstock (taper mt #4, quill diameter/ stroke 65/80mm)
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
