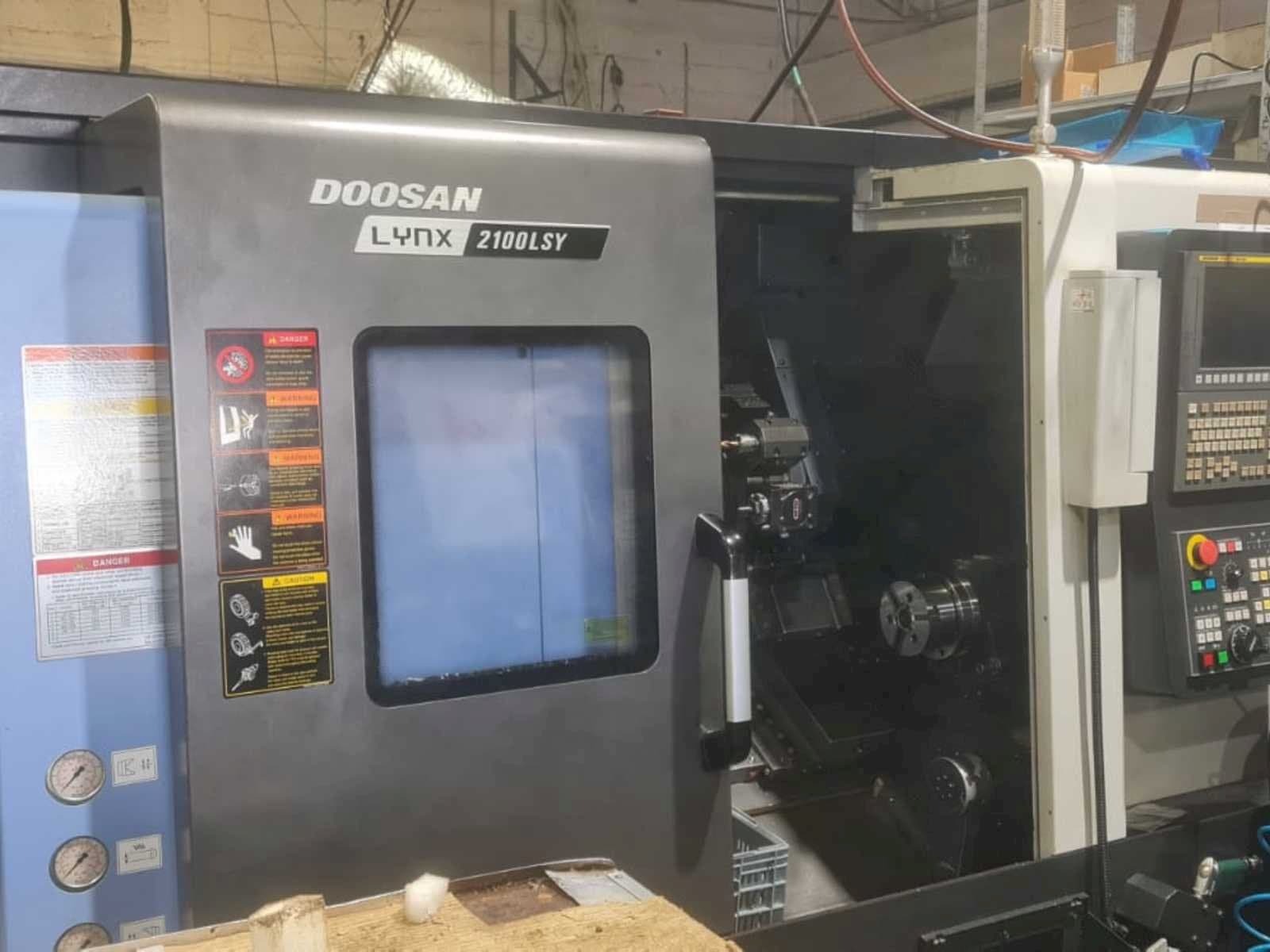

Front view of Doosan Lynx series machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

DOOSAN Lynx series 2100 LSYB

Photo Gallery

DOOSAN - Lynx series 2100 LSYBIL-TUR-DOO-2018-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
This Doosan Lynx series 2100 LSYB Lathe machine

This Doosan Lynx series 2100 LSYB Lathe machine was manufactured in the year 2018 in Korea. It is equipped with a Fanuc i Series control unit. The machine has been working only for 152 and works with a spindle speed up to 4500 rpm. Tools and driven tools included.

Overview

brand: DOOSAN
year: 2018
MODEL: Lynx series 2100 LSYB
production hours: 152
application type: Turning
Location: Israel
machine type: Turn-Mill Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Lynx series 2100 LSYB

General Data

Measurements width: 1,710 mm
Measurements depth: 2,880 mm
Measurements height: 1,920 mm
Machine weight: 4,200 kg

Control Unit

Model: i Series
Brand: FANUC

Main drive

Spindle speed range: 4500 1/MIN
Spindle motor power: 15 kW

Movement

X-AXIS Movement: 205 mm
Y-AXIS Movement: 105/52.5 mm
Z-AXIS Movement: 560 mm
B-AXIS Movement: 560 mm

Tools

Number of stations: 12
Type of tool holder: BMT-45

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Rapid traverse x-axis 30 m/min
- - Rapid traverse y-axis 10 m/min
- - Rapid traverse z-axis 36 m/min
- - Max turning diameter 300 mm
- - Max turning length 510 mm
- - Through hole diameter 66 mm
- - Boring bar diameter 32 mm
- - Rotary tool speed 6000 rpm
- - Rotary tool power 3. 7 kw
- - Rotary tool torque 24 nm
Qualitative Machine Benefits:
- - Tools and driven tools included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
