DOOSAN Mynx 540

Photo Gallery

DOOSAN - Mynx 540CZ-MIL-DOO-2007-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

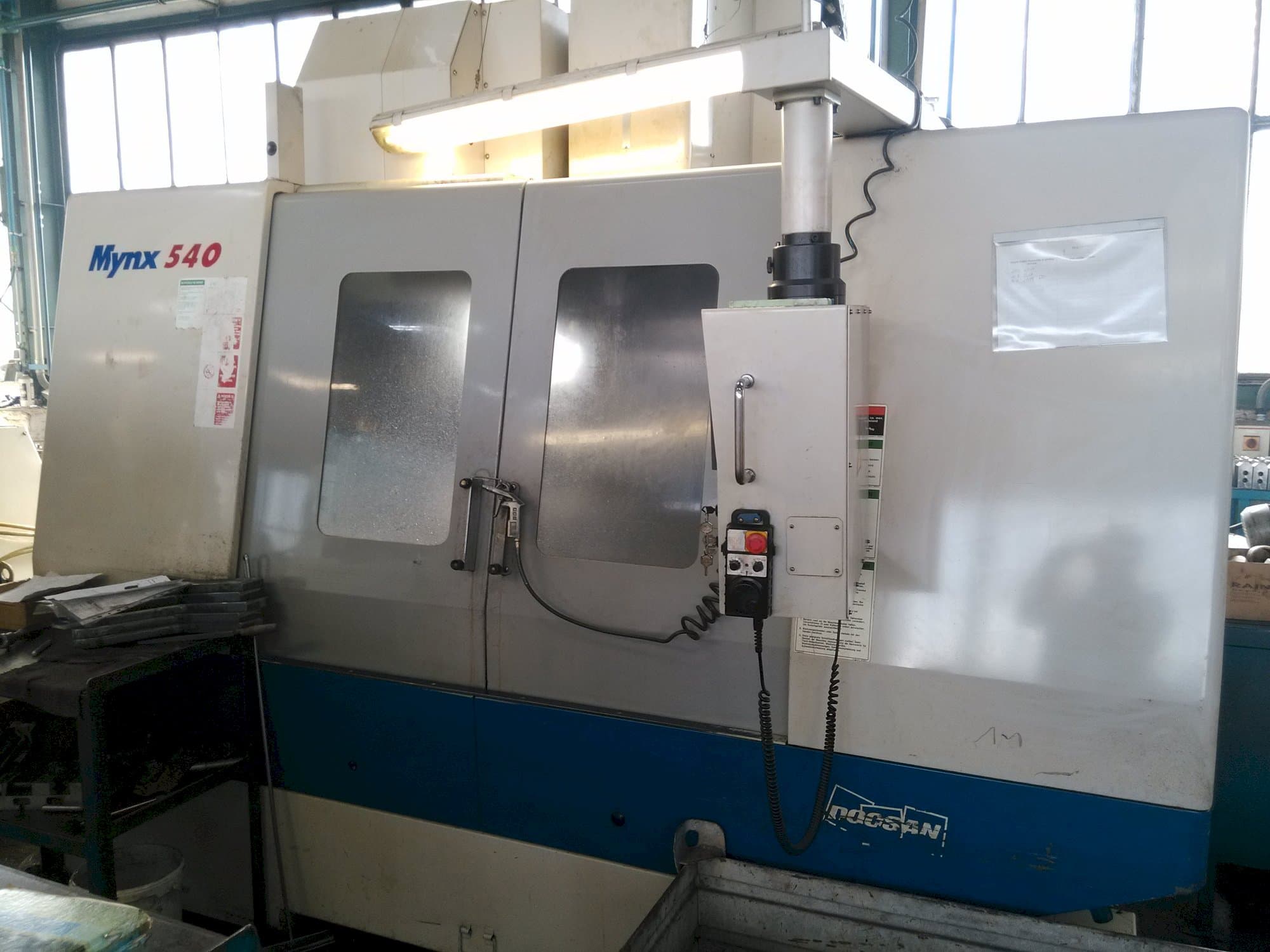

Doosan Mynx 540 Vertical Machining Center

This Doosan Mynx 540 Vertical Machining Center was built in 2007 in South Korea and has been working for 42000 hours, of which only 12500 are spindle hours. Equipped with a Fanuc 0i-MD Control unit, this machine can operate with a spindle speed up to 8000 rpm. It had its spindle retrofitted and a new encoder installed in 2018.

Overview

brand: DOOSAN
year: 2007
MODEL: Mynx 540
production hours: 42000
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - DOOSAN Mynx 540

General Data

Measurements width: 2467 mm
Measurements depth: 3350 mm
Measurements height: 2800 mm
Machine weight: 7000 kg

Control Unit

Model: 21i-MB
CNC language customizable: Yes
Brand: FANUC

Main drive

Spindle speed range: 8000 rpm 1/MIN

Movement

X-AXIS Movement: 1020 mm
Y-AXIS Movement: 510 mm
Z-AXIS Movement: 625 mm

Workpiece

Workpiece weight: 800 kg

Table

Outer length: 1400 mm
Outer width: 5000 mm

Tools

Slots in storage: 30
Max weight: 8 kg
Max tool diameter: 150 mm
Max tool length: 300 mm

Additional Information

Machine history

Material type: Steel

Machine Benefits

Technical Machine Benefits:
- - Spindle taper iso 40
- - Main motor power 11/15 kw
Qualitative Machine Benefits:
- - Spindle retrofitted and new encoder in 2018
- - 12500 total spindle hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
