DOOSAN - Mynx NM 410IT-MIL-DOO-2006-00001
Sold
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Machine Tools

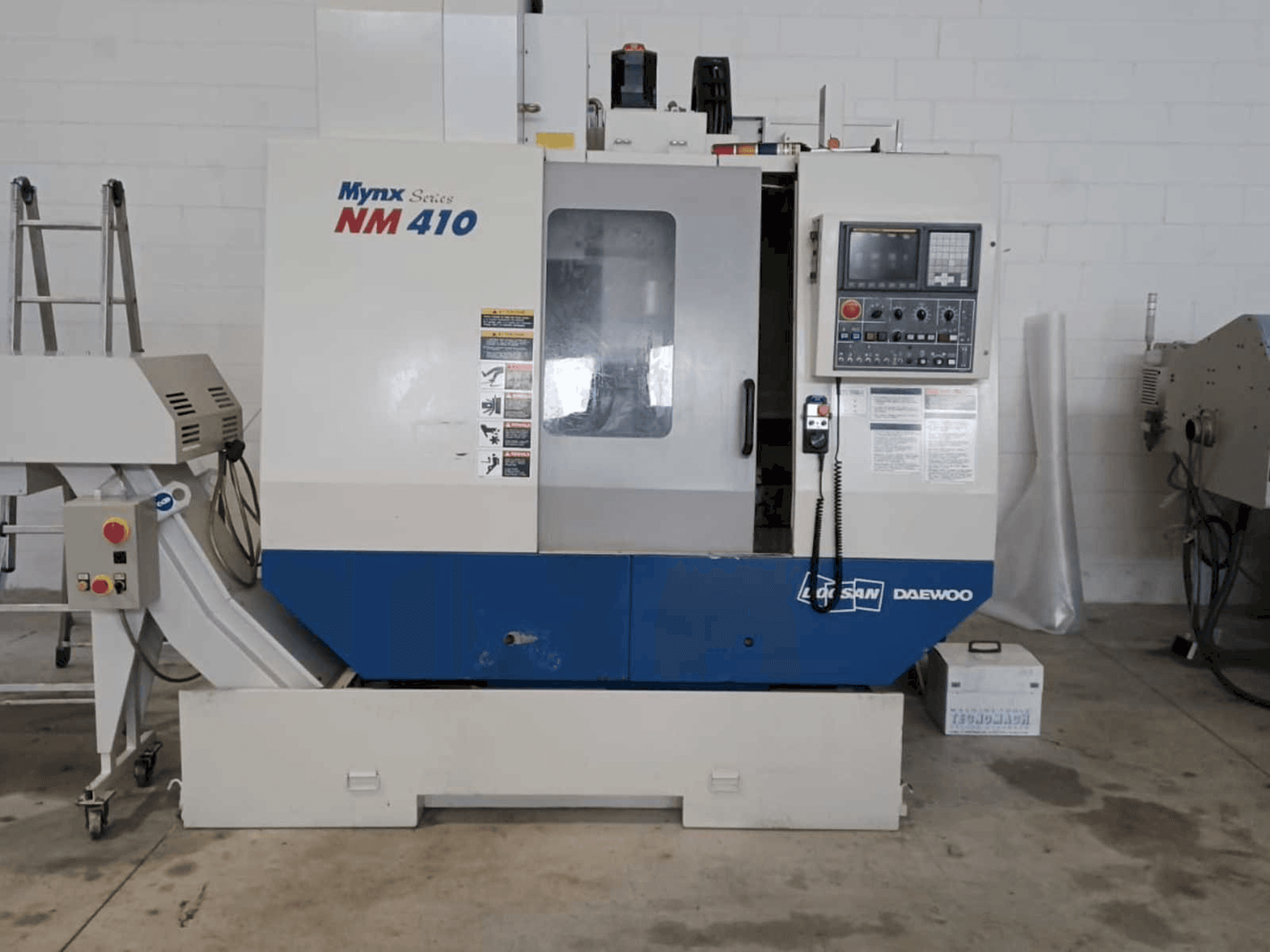

- Doosan Mynx NM 410 Vertical Machining center
This Doosan Mynx NM 410 Vertical Machining center was manufactured in the year 2006 in Korea. It is equipped with a FANUC Series 0i-MB control unit and has 3 axis. The machine has a spindle speed of 8000 rpm.
Overview
- brand: DOOSAN
- year: 2006
- MODEL: Mynx NM 410
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - DOOSAN Mynx NM 410
Control Unit
- Control Brand: FANUC
- Control Model: Series 0i-MB
Dimensions
- Machine Weight: 2745 kg
- Table Length: 1000 mm
- Table Width: 450 mm
Movement
- Number of Axes: 3
- X-axis Travel: 820 mm
- Y-axis Travel: 410 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Speed: 8000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Capacity: distance spindle nose – table min/max 150 - 660 mm
- Distance spindle - column 450 mm
- Iso 40 spindle connection
- Feeds : rapid x/y/z axes 30/30/24 m/min
- Tool changer: tool magazine 20 pos.
- Max tool weight : 8kg.
- Max user size diameter/length 90/250 mm
- Accessories present: carpet chip conveyor - a. P. Through spindle –
- Remote electronic handwheel
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
