DOOSAN NX 5500 II

Photo Gallery

DOOSAN - NX 5500 IIPT-MIL-DOO-2013-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

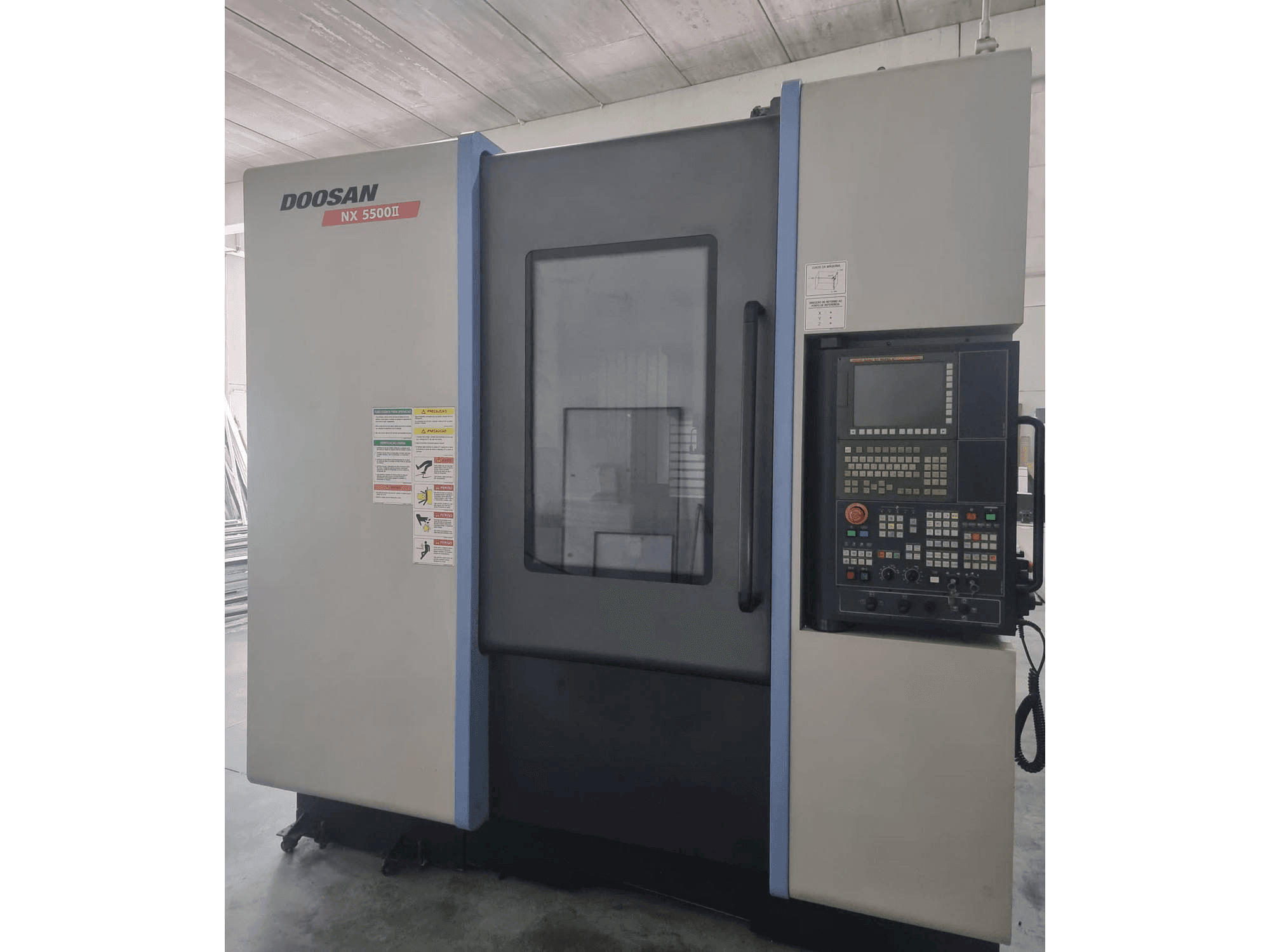

Doosan NX 5500 II Vertical Machining center

This Doosan NX 5500 II Vertical Machining Center was manufactured in the year 2013. It is equipped with a FANUC 31i control unit and has 3 axis. The machines has a spindle speed of 20000 rpm.

Overview

brand: DOOSAN
year: 2013
MODEL: NX 5500 II
production hours: 0
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
control unit brand: FANUC

Technical Information - DOOSAN NX 5500 II

General Data

Measurements width: 2900 mm
Measurements depth: 2530 mm
Measurements height: 3064 mm
Machine weight: 9000 kg

Control Unit

Model: 31i
Brand: FANUC

Main drive

Spindle speed range: 20000 1/MIN
Spindle motor power: 11 kW
Number of axis: 3

Movement

X-AXIS Movement: 900 mm
Y-AXIS Movement: 550 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 1000 mm
Outer width: 550 mm
Table load: 700 kg

Tools

Slots in storage: 30
Max weight: 7 kg
Max tool diameter: 80 mm
Max tool length: 220 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Tool change time: 1,6 s
Coolant system
Chip conveyor
Screw conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
