DOOSAN - Puma 2600SYGB-TUR-DOO-2012-00003
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools

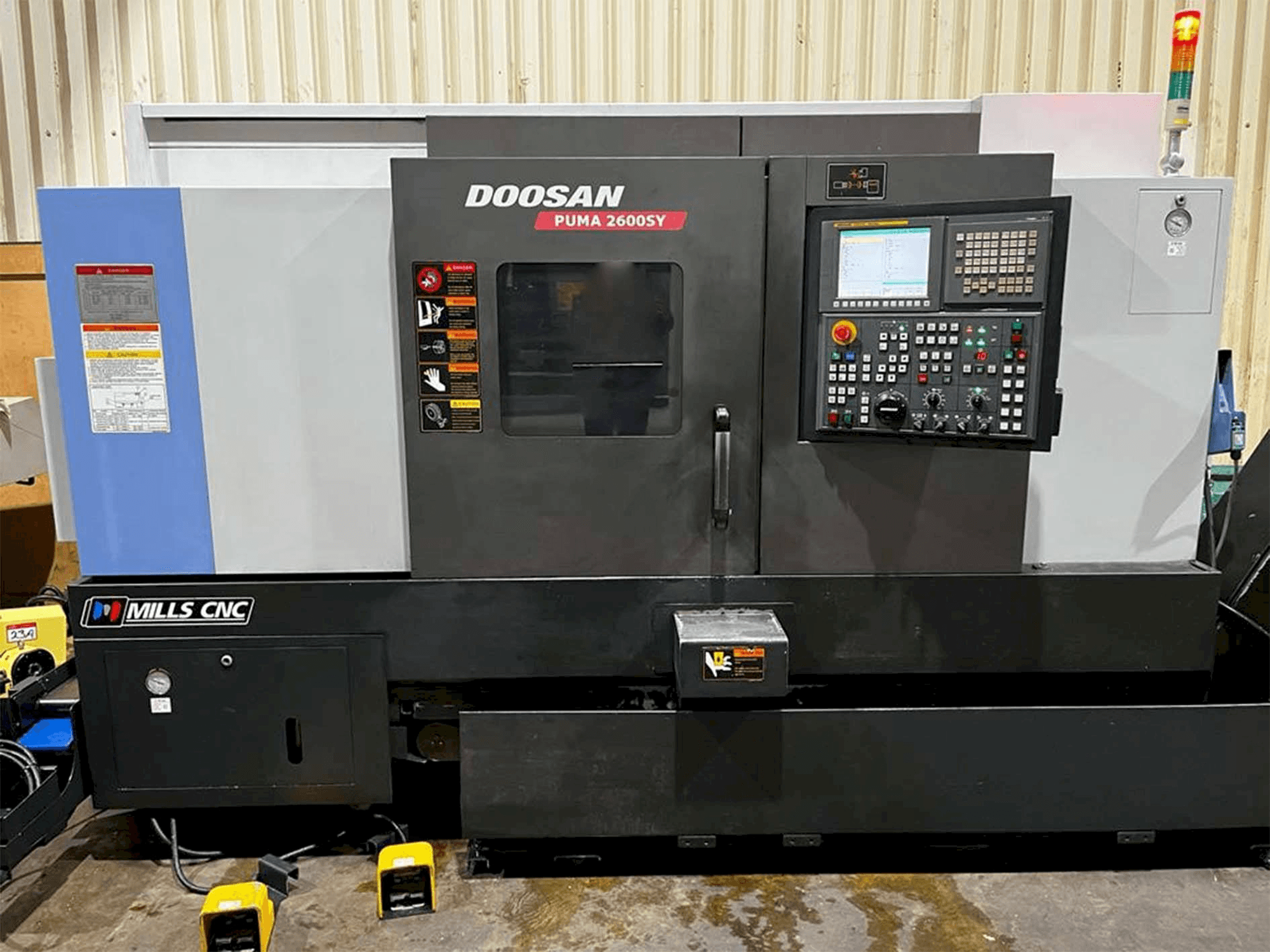

- Doosan Puma 2600SY Lathe machine
This Doosan 2600SY Lathe machine was manufactured in South Korea in the year 2012. This 4 axis machine operates through a Fanuc I Series control unit. It incorporates a spindle speed of 3500 rpm and a sub-spindle speed up to 4500 rpm. The machine is in very good condition and includes manuals.
Overview
- brand: DOOSAN
- year: 2012
- MODEL: Puma 2600SY
- application type: Turning
- Location: United Kingdom
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DOOSAN Puma 2600SY
Control Unit
- Control Brand: FANUC
- Control Model: i Series
Dimensions
- Machine Depth: 1863 mm
- Machine Height: 2163 mm
- Machine Weight: 6000 kg
Movement
- Number of Axes: 4
- X-axis Travel: 260 mm
- Y-axis Travel: 52.5 mm
- Z-axis Travel: 830 mm
Technical Specification
- Number of Tools: 12
- Spindle Speed: 3500 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Very good condition
- Includes machine manual
Technical Machine Benefits
- Turning over bed 780 mm, over carriage 630 mm
- Maximum machining diameter 376 mm
- Maximum machining length 760 mm
- Bar capacity 76 mm
- Main spindle motor power 22/15 kw
- Turret milling power 5. 5 kw; speed 5000 rpm
- 0. 001 degree c axis
- Subspindle speed 4500 rpm, power 7. 5 kw
- 3 jaw chuck, tooling
- Tool setter, parts catcher, coolant
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
