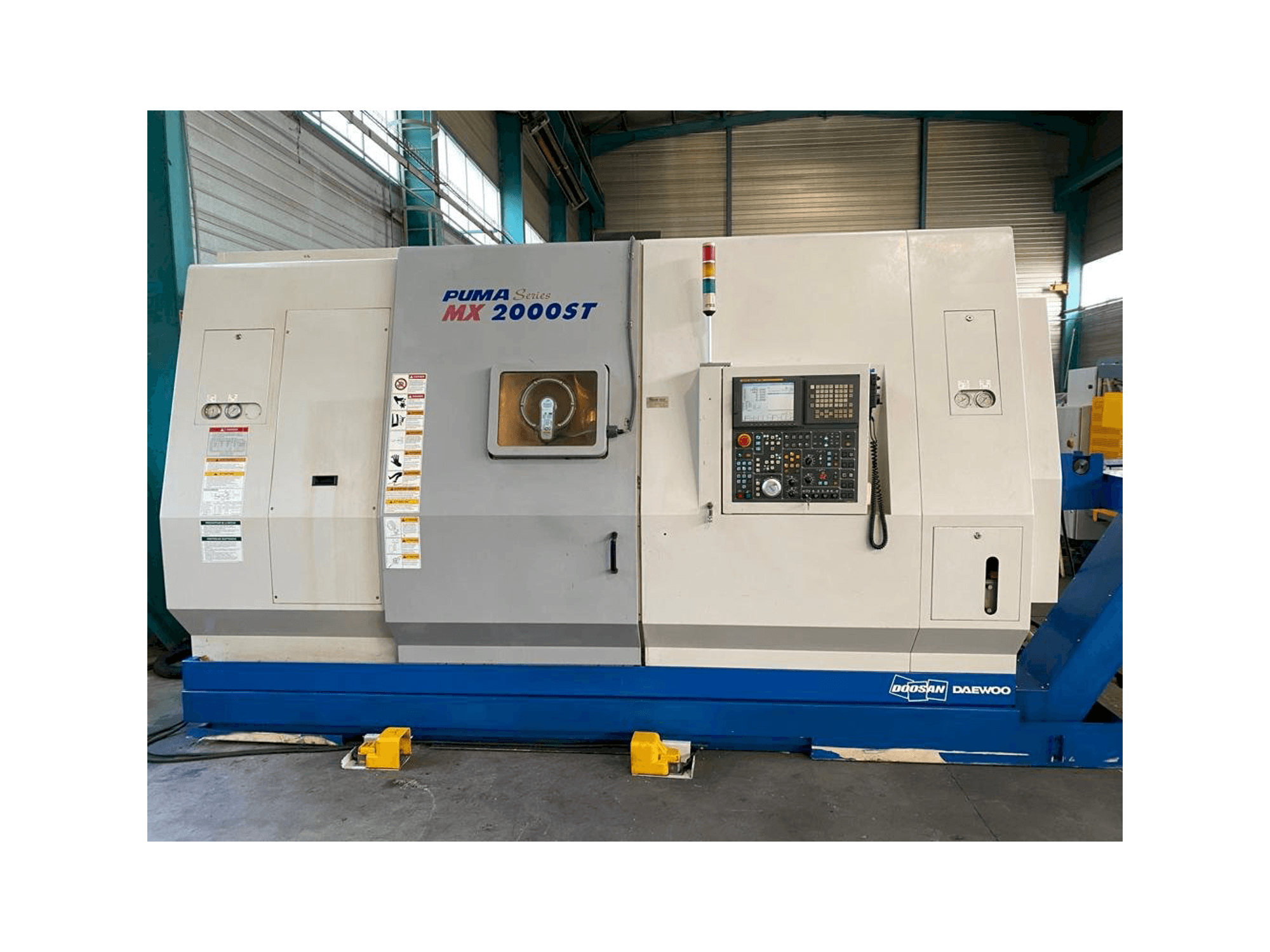

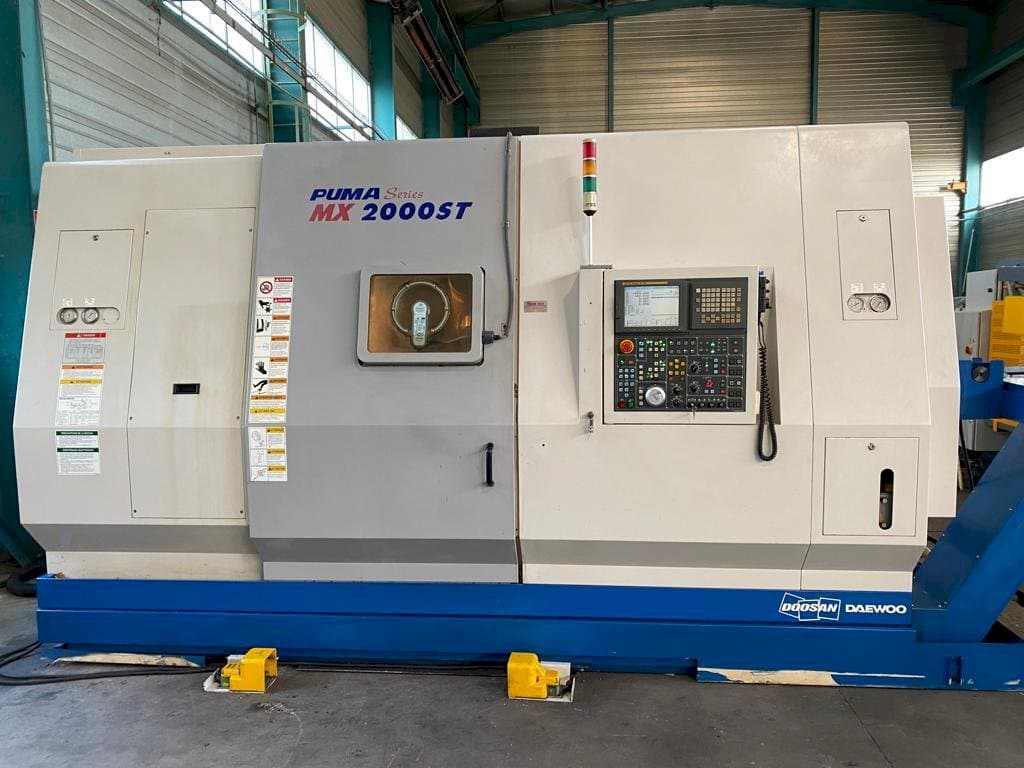

This Doosan MX 2000 ST twin spindle MILL TURNING CENTER was put into commissioning in 2007. It has a record of 19500 working hours. It is operated through a FANUC Series 18i-TB control unit. This 9 axis machine works with a milling rotation speed up to 10000 rpm, and a spindle and counter spindle Rotation speed up to 5000 rpm. It includes several equipment as measuring arm tools and a part recuperator with a side evacuation belt. This machine comes with its complete documentation.
Overview
- brand: DOOSAN
- year: 2007
- MODEL: PUMA MX 2000 ST
- production hours: 19500
- application type: Turning
- Location: France
- machine type: Turn-Mill Centre
- control unit brand: FANUC
Technical Information - DOOSAN PUMA MX 2000 ST
Control Unit
- Control Brand: FANUC
- Control Model: Series 18I-TB
Dimensions
- Machine Depth: 2500 mm
- Machine Height: 2600 mm
- Machine Weight: 12300 kg
Movement
- Number of Axes: 9
- Y-axis Travel: 80 mm
Technical Specification
- Spindle Power: 15 kW
- Spindle Speed: 10000 RPM
Additional Information
Additional equipment
- High pressure watering
- Measuring arm tools
- Part recuperator with side evacuation belt
- Set of tool holders for milling spindle Tool holder set for turret
Machine Benefits
Qualitative Machine Benefits
- Turret: 12 positions; milling rotation speed 4000 rpm
- Year of commissioning 2007 first hand
- Complete documentation
Technical Machine Benefits
- 9 controlled axes x1x2-y1y2-a-b-c1 / c2-y
- Ø admitted above the bench 750 mm
- Ø admitted above the carriage 600 mm
- Max turning Ø 550 mm
- Turning Ø without interference 210 mm
- Bar turning Ø 65 mm
- Maximum turning length 1020 mm
- Spindle & counter-spindle: 2 mandrels ø 210 mm; spindle nose a2-6 ‘'; spindle bore 66 mm
- Spindle & counter-spindle: rotation speed 5000 rpm; unit power 22 kw; c1 / c2 axes 360000 ° (continuous rotation)
- Milling spindle: tool changer 40 stations with gripper arm; tool change time 1, (second) b axis 360 ° 30 °; increment (spindle tilt)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
