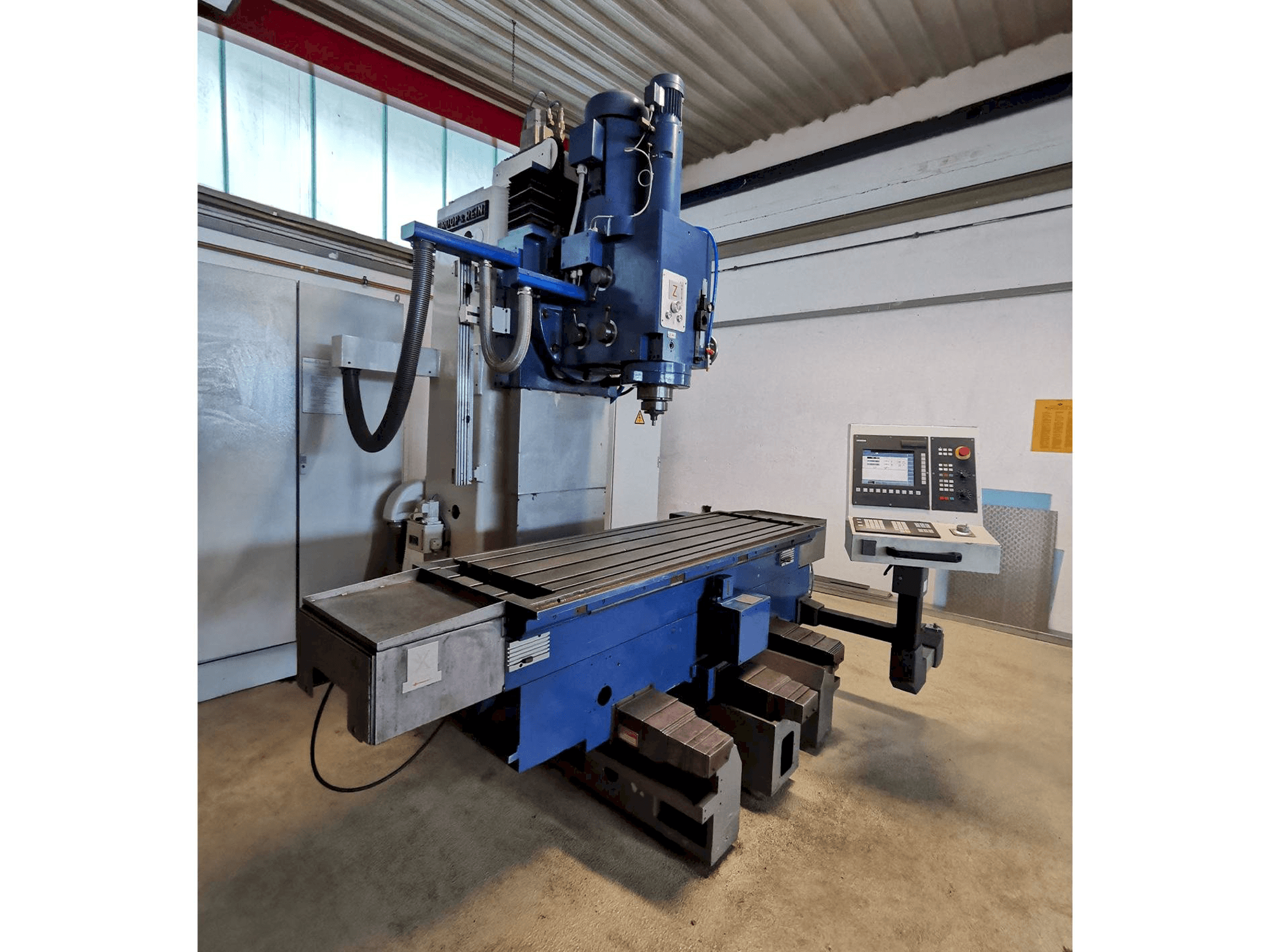

Front view of Droop & Rein FS 100 ke machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Droop & Rein FS 100 ke

Photo Gallery

Droop & Rein - FS 100 keDE-MIL-DRO-1973-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Droop & Rein FS 100 ke Milling machine

This Droop & Rein FS 100 ke Milling machine was built in 1973 and was completely overhauled in 2000. It has less than 1000 operating hours because prefered working with Heidenhain controls. This 3 axis machine is equipped with a Siemens 802 CNC control unit. It can work with a spindle speed range 25 - 1600 rpm. The machine is in a very good condition. All documents are available.

Overview

brand: Droop & Rein
year: 1973
MODEL: FS 100 ke
production hours: 1000
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
control unit brand: SIEMENS

Technical Information - Droop & Rein FS 100 ke

General Data

Machine weight: 11000 KG

Control Unit

Model: 802 CNC
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 25 - 1600 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 1000 mm

Table

Outer length: 2000 mm
Outer width: 700 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle: 110 mm
- - Mounting sk 50
Qualitative Machine Benefits:
- - The machine was completely overhauled in 2000
- - The machine was not used much because the employees prefer to work with heidenhain controls
- - Very good condition
- - All documents are available
- - Connected and can be demonstrated

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
