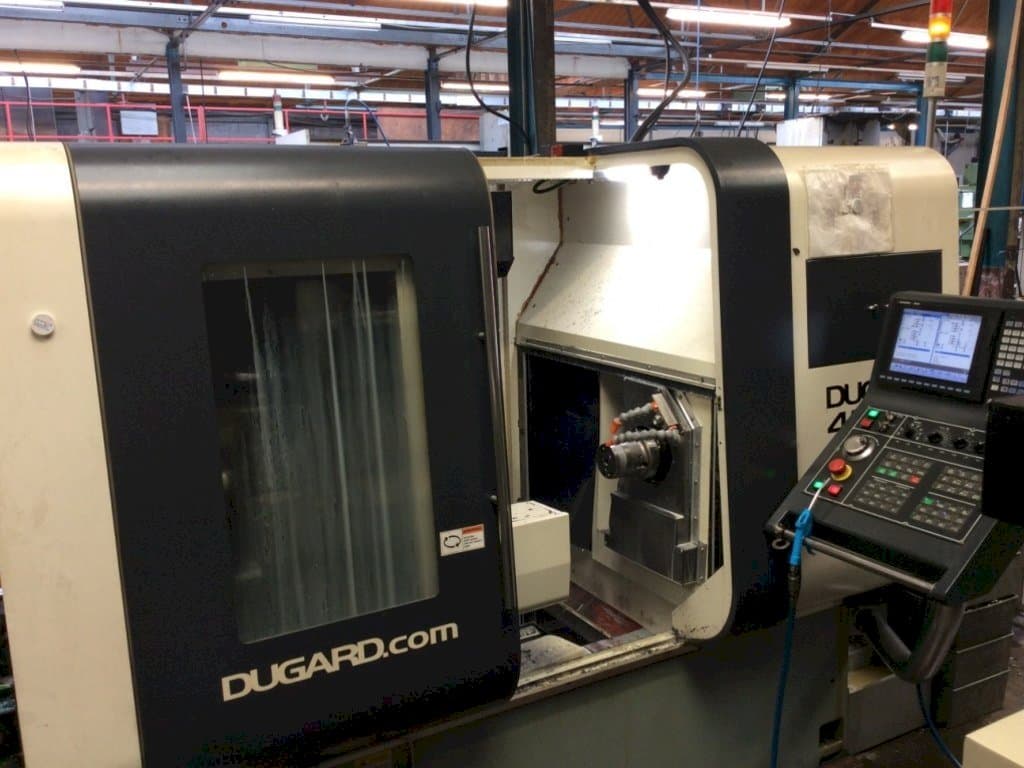

Dugard 42 TT

Photo Gallery

Dugard - 42 TTIE-TUR-DUG-2012-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Dugard 42 TT Lathe

This Dugard 42 TT Lathe was made in 2012 in Taiwan. It is equipped with a Mitsubishi M700 control unit. This 2 spindle machine can work with a spindle speed up to 4000/3000 rpm. It includes a barload M06 bar feed as an additional equipment. It has been well maintained.

Overview

brand: Dugard
year: 2012
MODEL: 42 TT
application type: Turning
Location: Ireland
machine type: Horizontal Turning Machine
availability: Sold
control unit brand: MITSUBISHI

Technical Information - Dugard 42 TT

General Data

Measurements width: 2500 mm
Measurements depth: 1700 mm
Measurements height: 1900 mm
Machine weight: 4200 kg

Control Unit

Model: M700
CNC main language: English
CNC language customizable: Yes
Brand: MITSUBISHI

Main drive

Number of spindles: 2
Spindle speed range: 4000/3000 1/MIN

Movement

X-AXIS Movement: 140 mm
Y-AXIS Movement: 410 mm
Z-AXIS Movement: 230 mm

Workpiece

Workpiece drm: 42/60 mm
Workpiece x: 230 mm

Tools

Slots in storage: OD- 6 Tools, ID- 4 Tools
Type of tool holder: ER 20/20

Media

Main electronic connection: 380 V

Additional Equipment

- Barload M06 Bar Feed

Additional Information

Machine history

Material type: Mildsteel
End product: Cylinder parts

Machine Benefits

Technical Machine Benefits:
- - Spindle bore: 42/60mm
- - Max bar cap: 42/30mm
- - Spindle nose: a2-6/a2-5
- - Main spindle motor: mitsubishi ac spindle 7. 5kw
- - Sub spindle motor: mitsubishi ac spindle 3. 7kw
- - X1/y/z1 travels: 410/410/360mm
- - 12 axis (8 + 2 + 2) cnc dual turning & milling complex lathe
- - 8 aixs & 2 spindles with both x & z positioning
- - Live tooling on main and sub spinlde tooling blocks
- - 12 live tools for axial & radial milling, drilling & tapping ops
Qualitative Machine Benefits:
- - Well maintained machine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
