- Dugard 850 VMC Vertical Machine Center

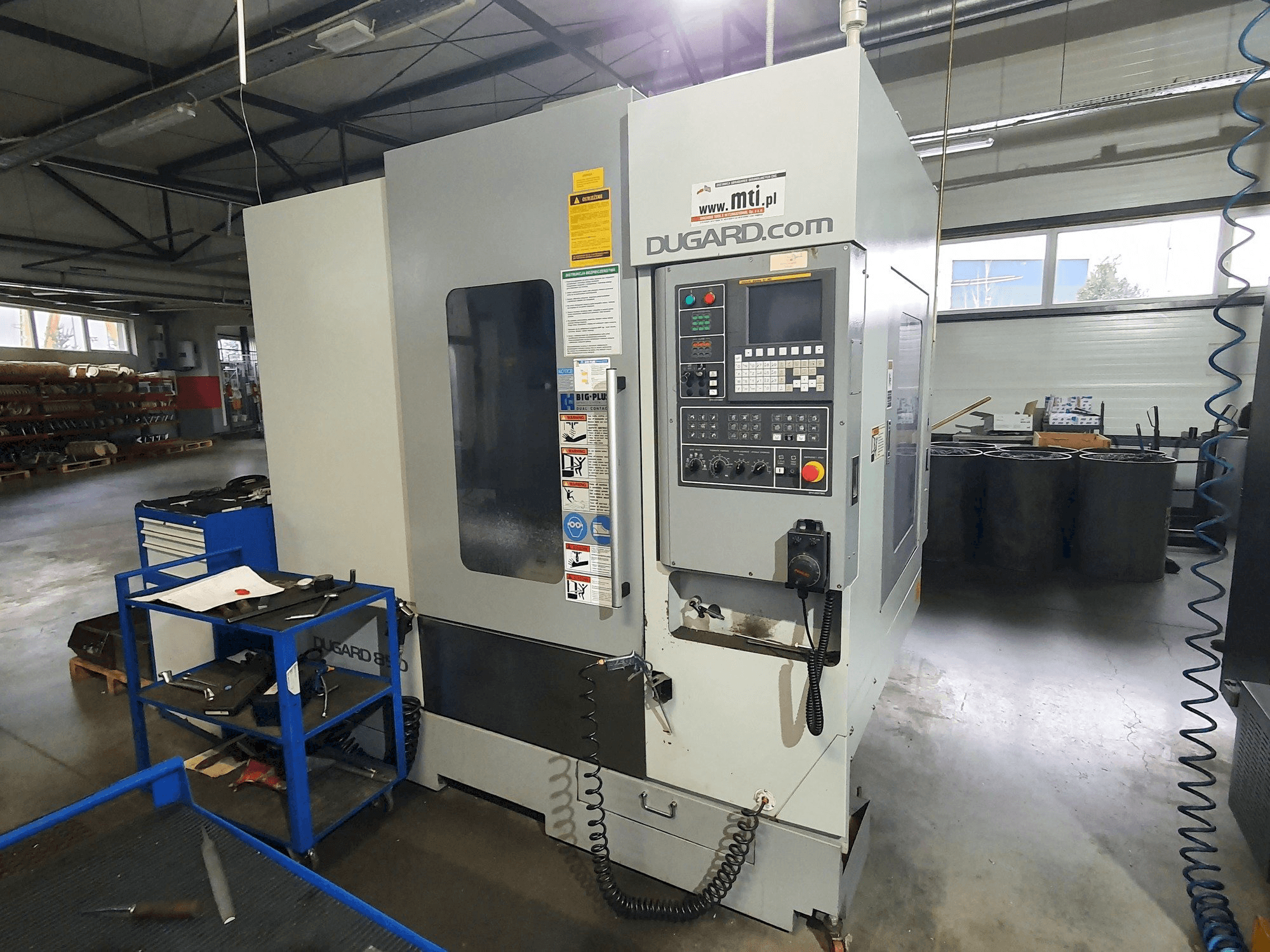

This Dugard 850 VMC vertical machine center was manufactured in 2012 in Poland. It has a total of 10857 working hours, of which 3505 are spindle hours. The 3 axis machine operated through a Fanuc 0iMD control unit. This machine has a spindle speed up to 10000 rpm. The machine is in a very good working condition. It is still at the production and ready for tests. It has its full service documentation and operation and maintenance manual of the control system.
Overview
- brand: Dugard
- year: 2012
- MODEL: 850 VMC
- production hours: 10857
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - Dugard 850 VMC
Control Unit
- Control Brand: FANUC
- Control Model: 0iMD
Dimensions
- Machine Depth: 2120 mm
- Machine Height: 2580 mm
- Machine Weight: 5550 kg
- Table Length: 1000 mm
- Table Load: 500 kg
- Table Width: 510 mm
Movement
- X-axis Travel: 850 mm
- Y-axis Travel: 530 mm
- Z-axis Travel: 510 mm
Technical Specification
- Max. Tool Weight: 7 kg
- Spindle Speed: 10000 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- External tool cooling system with coolant
- External tools cooling system with compressed air
- Chip flushing system
- Coolant flush gun
- Compressed air gun
- Spindle blow-off
- Automatic lubrication system
- Ready for installing 4th axis (interface installed)
- Workspace lighting
- Extract from the operation and maintenance manual of the control system
Technical Machine Benefits
- Max. X, y, z feed rate: 10000 mm/min
- Positioning accuracy (p): 0. 005 mm
- Repeatability (ps): 0. 003 mm
- Spindle iso 40 spindle taper
- Cooling system: coolant supply through the spindle (option included)
- Control system - the spindle (option included)
- Tool magazine capacity: 24 tools
- Tool holder type bt40
- Tool change time: 2. 0 - 4. 5 sec
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
