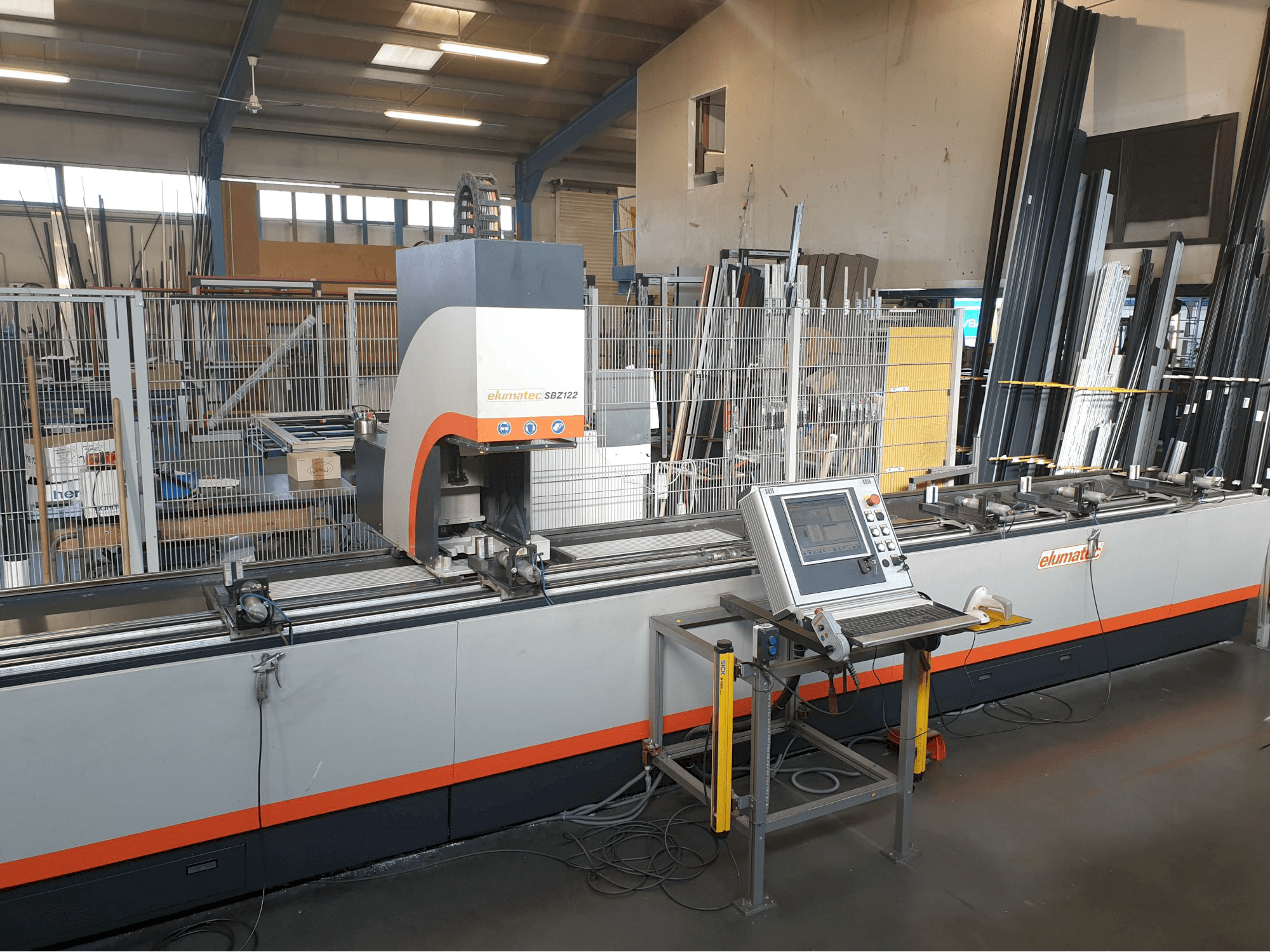

Left view of elumatec SBZ 122/64 Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Elumatec SBZ 122/64

Photo Gallery

Elumatec - SBZ 122/64LU-MIL-ELU-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Elumatec SBZ 122/64 Vertical Machining Center

This Elumatec SBZ 122/64 Vertical Machining Center was made in 2009 in Germany and counts with a production time of 2690 working hours since then. Operated with a EluCad Control unit, this machine stands out for its two working zones incorporating an automatic clamp position movement and a power-torque cutting spindle. It counts with a long table for extra long profiles on five sides, capable of working with material like aluminum up to 4 mm of thickness. The machine presents perfect conditions, as it has been given maintenance by Elumatec itself.

Overview

brand: Elumatec
year: 2009
MODEL: SBZ 122/64
production hours: 2690
application type: Milling
Location: Luxembourg
machine type: Vertical Machining Centre

Technical Information - Elumatec SBZ 122/64

General Data

Measurements width: 8450 mm
Measurements depth: 3400 mm
Measurements height: 2560 mm
Machine weight: 3400 kg

Control Unit

CNC main language: German
CNC language customizable: Yes

Main drive

Number of spindles: 1
Spindle speed range: 24000 rpm 1/MIN

Movement

X-AXIS Movement: 6700 mm
Y-AXIS Movement: 350 mm
Z-AXIS Movement: 280 mm

Table

Outer length: 6700 mm
Number of tslots: 2

Tools

Slots in storage: 10
Max weight: 4 kg
Max tool diameter: 80 mm
Max tool length: 200 mm

Media

Main electronic connection: 400 V
Power consumption: 30 kVA
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
