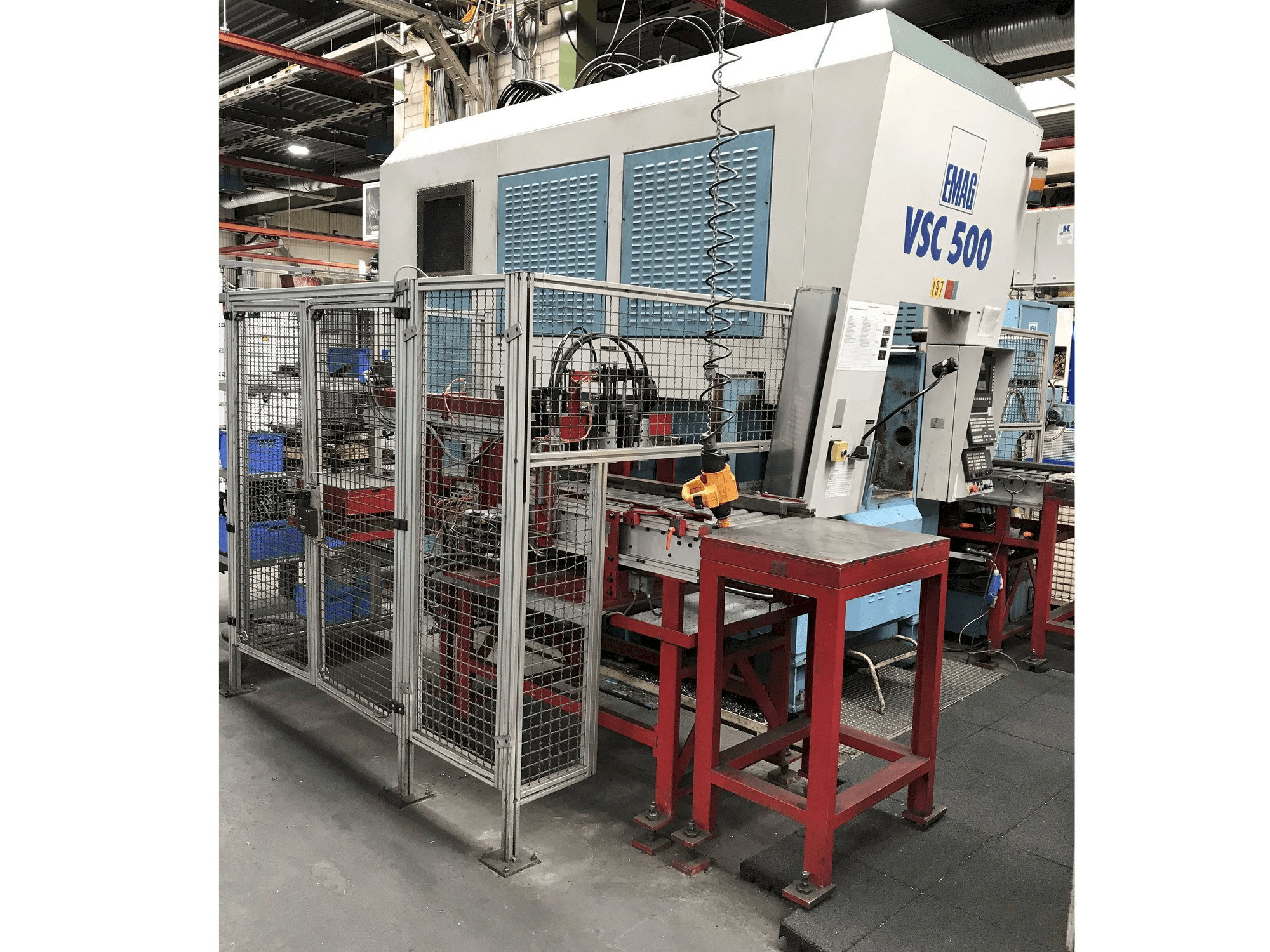

EMAG VSC 500

Photo Gallery

EMAG - VSC 500DE-TUR-EMA-1998-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

This EMAG VSC 500 Lathe were manufactured in 1998. It is operated with a control unit SIEMENS Sinumerik 840 D with 14'' display. This 2 axis machine can work with a spindle speed up to 3400 rpm and a swing diameter 520 mm.

Overview

brand: EMAG
year: 1998
MODEL: VSC 500
application type: Turning
Location: Germany
machine type: Vertical Turning Machine
availability: Sold
control unit brand: SIEMENS

Technical Information - EMAG VSC 500

General Data

Measurements width: 1800 MM
Measurements depth: 4050 mm
Measurements height: 4250 MM
Machine weight: 12000 KG

Control Unit

Model: Sinumerik 840 D
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 3400 1/MIN
Spindle motor power: kW 71
Tool taper: DIN 55026 size 11
Number of axis: 2

Movement

X-AXIS Movement: 1000 MM
X-AXIS Feed Force: 18 kN
X-AXIS Rapid traverse: 45 m/min
Z-AXIS Movement: 400 MM
Z-AXIS Feed Force: 18 kN
Z-AXIS Rapid traverse: 30 m/min

Media

Main electronic connection: 400 V 50 Hz
Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Control unit with integrated plc-s7-300
- - Chuck diameter 500 mm
- - Swing diameter 520 mm
- - Loading time 8-12 sec
- - Spindle bearing -Ø front 160 mm
- - Three-phase motor 40% ed 45 kw
- - Full power from spindle speed 900 rpm
- - Maximum torque 480 nm
- - Torque 40% ed 750 nm
- - Ball screw in x and z 50 mm
Qualitative Machine Benefits:
- - Cylindrical shank din 69880 12-fold shank Ø 50 mm
- - Control voltage - direct current 24 v
- - Control voltage - alternating current 230 v
- - Workpiece diameter 440 mm
- - Workpiece height 250 mm
- - Discharge height 1250 mm
- - Dimensions (with automation): length 4500 mm; width 4000 mm; height 4250 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
