EMCO TURN 342

Photo Gallery

EMCO - TURN 342HU-TUR-EMC-1993-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
EMCO EMCOTURN 342

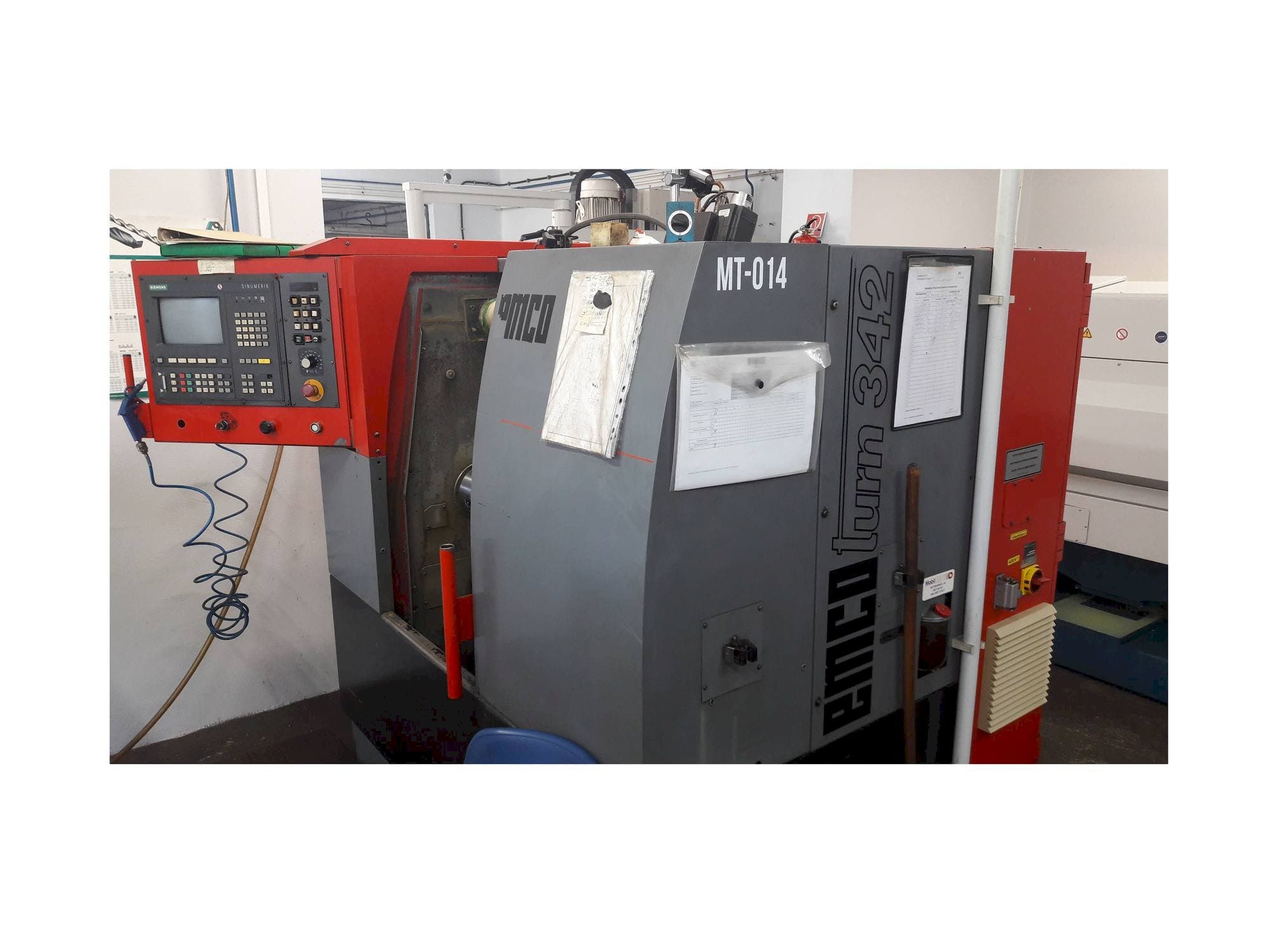

This EMCO TURN 342 Lathe was made in 1993 in Austria. It is equipped with a SIEMENS SINUMERIK control unit. This machine stands out due to its spindle speed range of 0-6000 rpm and its spindle bore 53 mm. Includes 9 tool holders, a chuck, and a machine manual.

Overview

brand: EMCO
year: 1993
MODEL: TURN 342
application type: Turning
Location: Hungary
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - EMCO TURN 342

General Data

Measurements width: 2275 mm
Measurements depth: 2115 mm
Measurements height: 1710 mm
Machine weight: 2400 kg

Control Unit

Model: SINUMERIK
Brand: SIEMENS

Main drive

Spindle speed range: 0-6000 1/MIN
Spindle motor power: 7.5/11 KW
Spindle bore: 53 mm
Tool taper: DIN 55026

Movement

X-AXIS Movement: 150 mm
X-AXIS Working Feed: 4000 N
X-AXIS Rapid traverse: 12 m/min
Z-AXIS Movement: 300 mm
Z-AXIS Working Feed: 6000 N
Z-AXIS Rapid traverse: 12 m/min

Media

Main electronic connection: 400 v 50/60 hz
Power consumption: 15 kva

Additional Information

Additional equipment

9 tool holders
Chuck

Machine Benefits

Qualitative Machine Benefits

Machine manual

Technical Machine Benefits

Circumferential diameter over bed 340 mm
Circulation diameter over cross slide 158 mm
Max. Workpiece size for chuck parts (theoretical) 210 mm
Spindle stroke diameter in front bearing 80 mm
Diameter in the drawtube 42 mm
Max. Torque 90 nm
Pinole diameter 60 mm
Inner cone mk4
Max. Headstock displacement by hand 300 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
