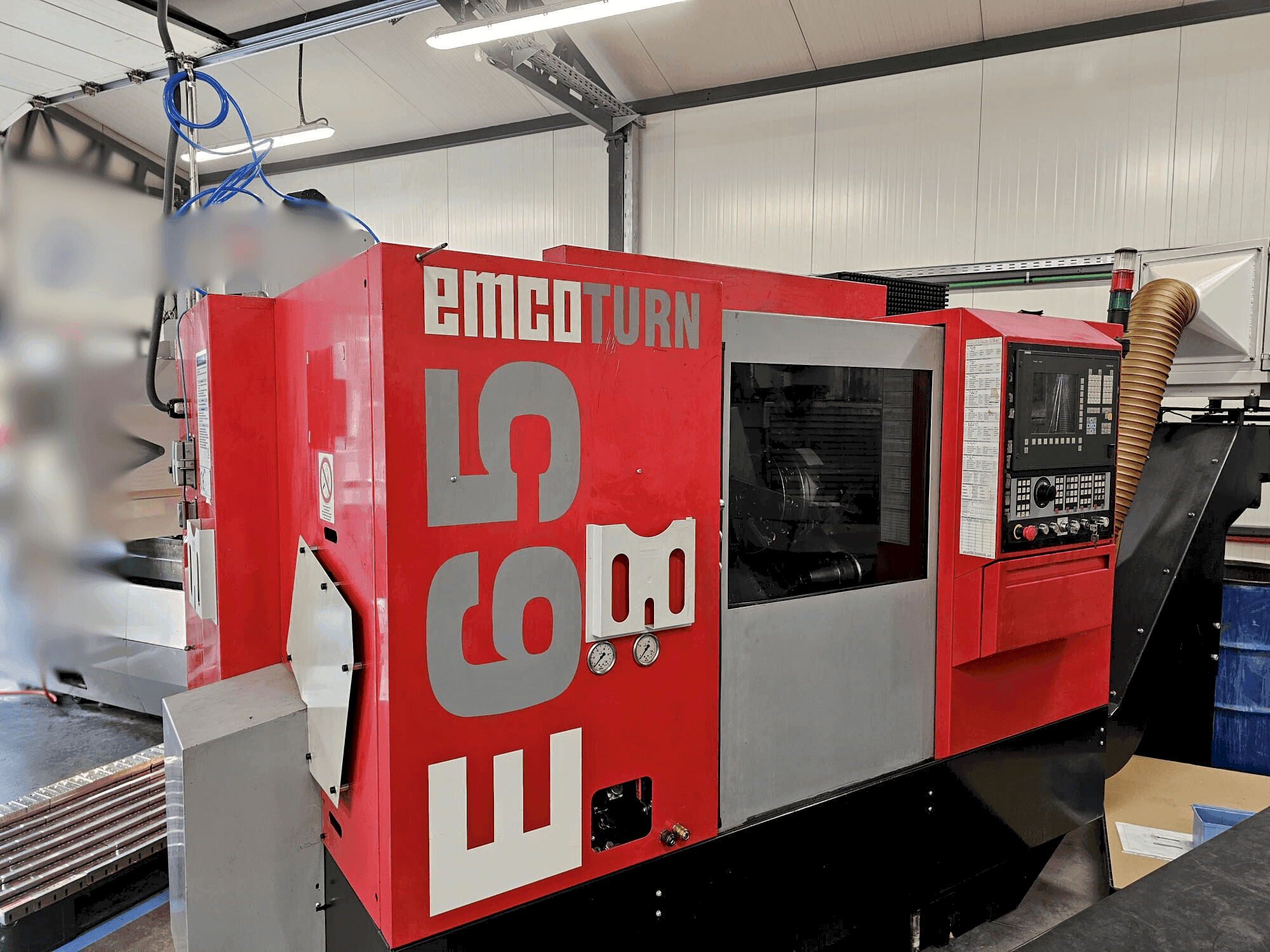

EMCO TURN E 65

Photo Gallery

EMCO - TURN E 65BA-TUR-EMC-2009-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used EMCO TURN E 65 - Lathe For Sale | gindumac.com

This EMCO TURN E 65 lathe was manufactured in 2009. It features a swing diameter over bed of 600 mm and a maximum turning diameter of 680 mm. The spindle supports a max. chuck size of 250 mm and operates with a speed range up to 4200 min^-1. Ideal for precision tasks, the EMCO TURN E 65 machine we have for sale offers robust performance with its AC motor and hydraulic tailstock. Contact us for further details regarding this lathe.

Overview

brand: EMCO
year: 2009
MODEL: TURN E 65
application type: Turning
Location: Bosnia and Herzegovina
machine type: Horizontal Turning Machine
control unit brand: SIEMENS

Technical Information - EMCO TURN E 65

Control Unit

Model: Sinumerik 810
Brand: SIEMENS

Main drive

Spindle speed range: 60-4200 1/MIN
Spindle motor power: 15/18 kW
Spindle bore: 73 mm
Tool taper: KK 6

Movement

X-AXIS Movement: 65 mm
X-AXIS Working Feed: 24 m/min
X-AXIS Feed Force: 5000 N
Z-AXIS Movement: 210 mm
Z-AXIS Working Feed: 24 m/min
Z-AXIS Feed Force: 7000 N

Workpiece

Workpiece drm over bed: 600 mm
Workpiece drm over support: 360 mm
Workpiece drm: 680 mm

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Distance spindle nose (chuck flange) - tailstock center: 310 mm
- - Max. Bar diameter: 520 mm
- - Spindle outer diameter in front bearing: 100 mm
- - Main spindle clamping system: hollow chuck with drawbar, max. Passage 66. 5 mm
- - Max. Chuck size: 250 mm
- - Max. Torque: 192 nm
- - Max. Tailstock pressure: 8000 n
- - Tailstock travel: 500 mm
- - Tailstock spindle speed: 20 m/min
- - Inner cone of the tailstock spindle: mk4
Qualitative Machine Benefits:
- - Acceleration time from 0 to rapid traverse: 0. 2 s
- - C-axis (spindle 1 and 2) rapid traverse: 1000 min^-1
- - Resolution of the rotary axis: 0. 01°

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
